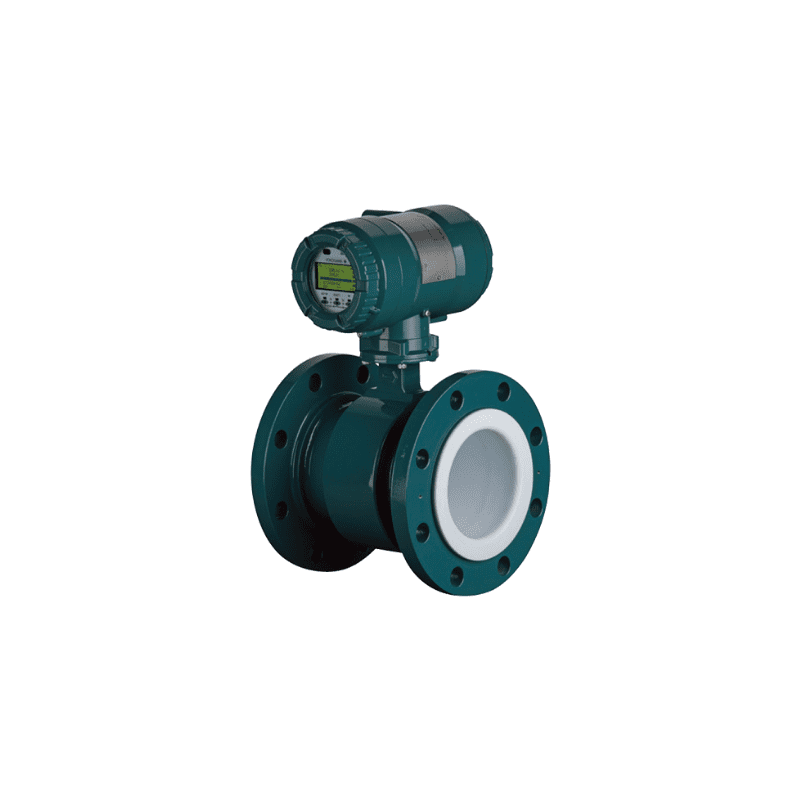

Yokogawa ADMAG AXW Magnetic Flow Meters
$250.00
The Yokogawa ADMAG AXW Magnetic Flow Meters are high-reliability electromagnetic flowmeters designed for large-diameter pipelines and water infrastructure applications. Built on Yokogawa’s ADMAG Total Insight platform, the AXW series provides stable flow measurement, advanced diagnostics and simplified maintenance. As a result, it is widely used in water supply, wastewater treatment and general industrial flow monitoring.
Typical Applications:
• Municipal water distribution systems
• Wastewater and sewage treatment plants
• Irrigation and water resource management
• Industrial process water monitoring
• Large pipeline flow measurement
Not Recommended For:
• Non-conductive fluids such as hydrocarbons
• Gas or steam flow measurement
ADMAG TI Series AXW Magnetic Flowmeter [Size: 25 to 450 mm (1 to 18 in.)]
Selection Notes
• Confirm that the process fluid has sufficient electrical conductivity for electromagnetic flow measurement.
• Verify the required pipe diameter and flow rate range.
• Check the expected process pressure and temperature conditions.
• Select the suitable communication protocol, such as HART®, FOUNDATION Fieldbus or PROFIBUS.
• In addition, ensure the installation location provides stable full-pipe flow conditions.
Why Choose Yokogawa ADMAG AXW Magnetic Flow Meters
• Designed for Large-Diameter Pipelines
The AXW series supports pipe sizes from 25 mm to 1800 mm (1 to 72 inches). Therefore, it is ideal for municipal water systems and large industrial pipelines.
• Reliable Electromagnetic Flow Measurement
Electromagnetic flowmeters measure volumetric flow using Faraday’s law of electromagnetic induction. As a result, measurement accuracy remains stable regardless of fluid pressure, temperature or density changes.
• High Measurement Accuracy
The AXW series typically achieves ±0.35% of flow rate accuracy, providing reliable measurement for water and wastewater applications.
• Total Insight Lifecycle Support
ADMAG Total Insight technology includes built-in verification, configuration management and diagnostic functions. Consequently, operators can reduce maintenance costs and improve operational visibility.
• Functional Safety Certification
The AXW magnetic flowmeter is SIL2 certified according to IEC 61508 and can be used in safety instrumented systems up to SIL3 in redundant configurations.
FAQ
Q: What types of fluids can the ADMAG AXW measure?
A: The flowmeter is designed for conductive liquids such as water, wastewater and process liquids.
Q: What pipe sizes are available for the AXW series?
A: The AXW supports pipe diameters from 25 mm up to 1800 mm, making it suitable for both medium and large pipelines.
Q: Does the AXW support digital communication protocols?
A: Yes. The flowmeter can support several industrial protocols including HART®, FOUNDATION Fieldbus and PROFIBUS.
Q: What industries commonly use ADMAG AXW magnetic flowmeters?
A: Typical industries include municipal water supply, wastewater treatment, irrigation systems and general industrial utilities.

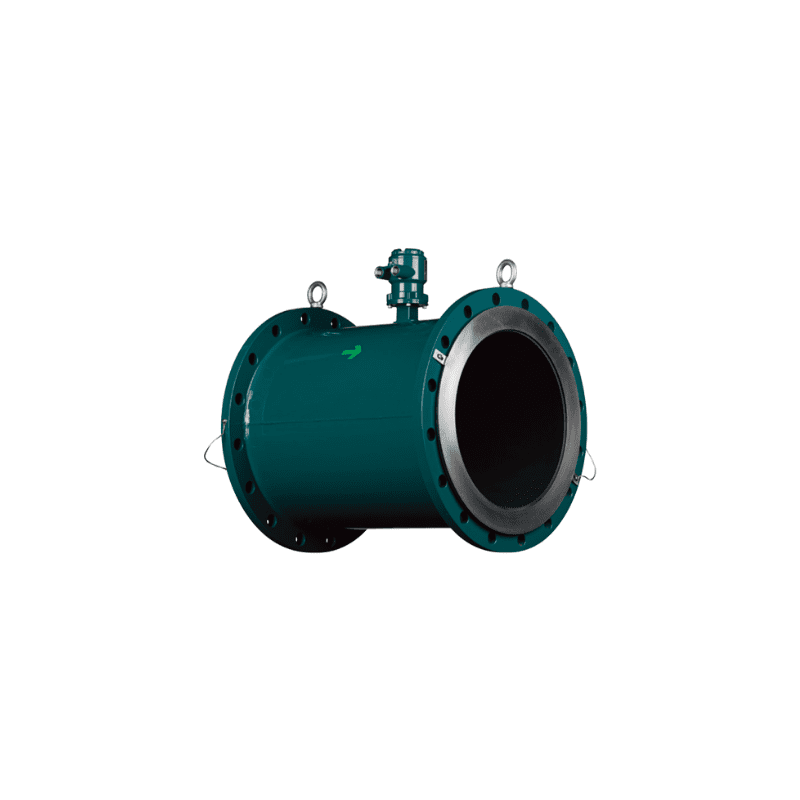

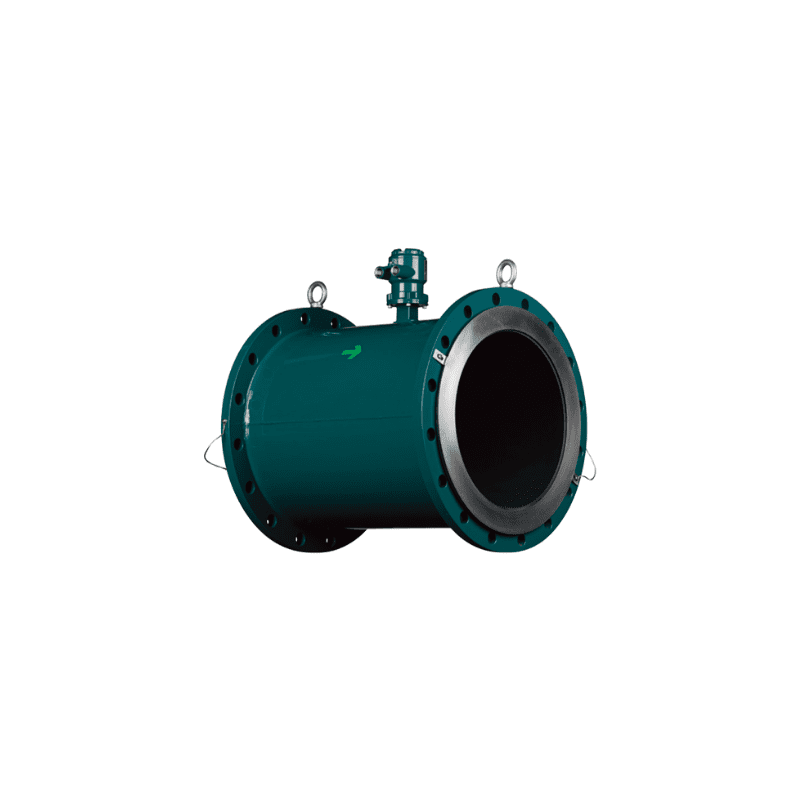

| Nominal Pipe Size | 500 to 1800 mm (20 to 72 inch) (General-purpose / Submersible) |
|---|---|

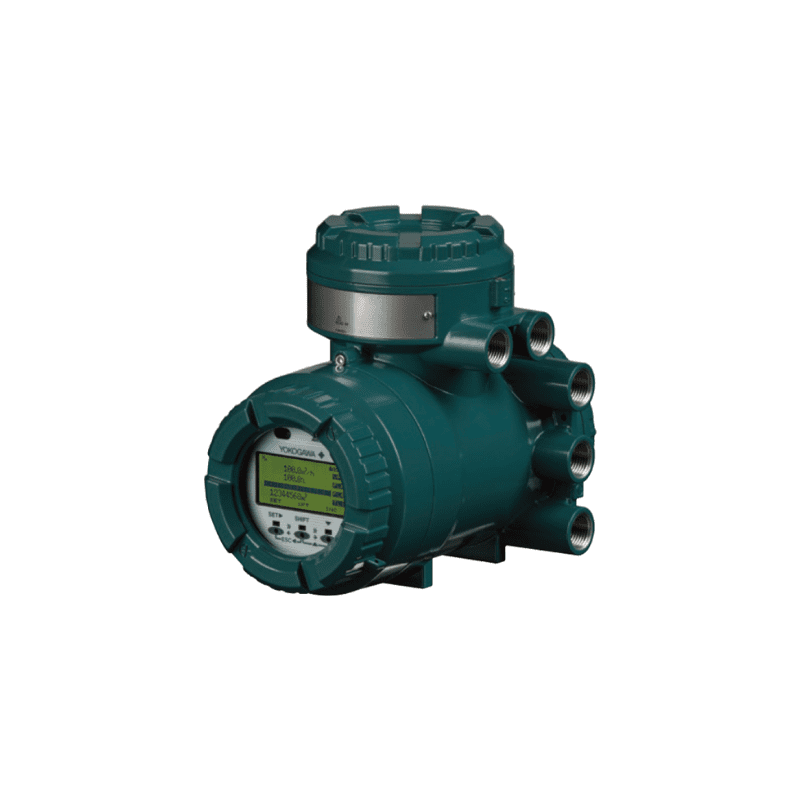

| Power Supply | 100 to 240 V AC or 100 to 120 V DC, 24 V AC / DC [ combined with AXFA11 ] |
| Output Signals | One current output, One pulse output, One alarm output, Two status outputs [ combined with AXFA11 ] |
| Fluid Temperature | -10 to +120 deg.C (+14 to +248 deg.F) [ depends on model type ] |
| Ambient Temperature | -10 to +60 deg.C (+14 to +140 deg.F) [ depends on model type ] |
| Accuracy | ±0.35% of rate |
| Fluid Conductivity | 20 μS /cm or larger [ depends on model type ] |
| Lining Material | Fluorocarbon PTFE |
| Electrode Material | JIS SUS316L (AISI 316L SS Equivalent) Hastelloy C276 Equivalent |
| Process Connection | ASME, AWWA, EN, JIS and AS |
