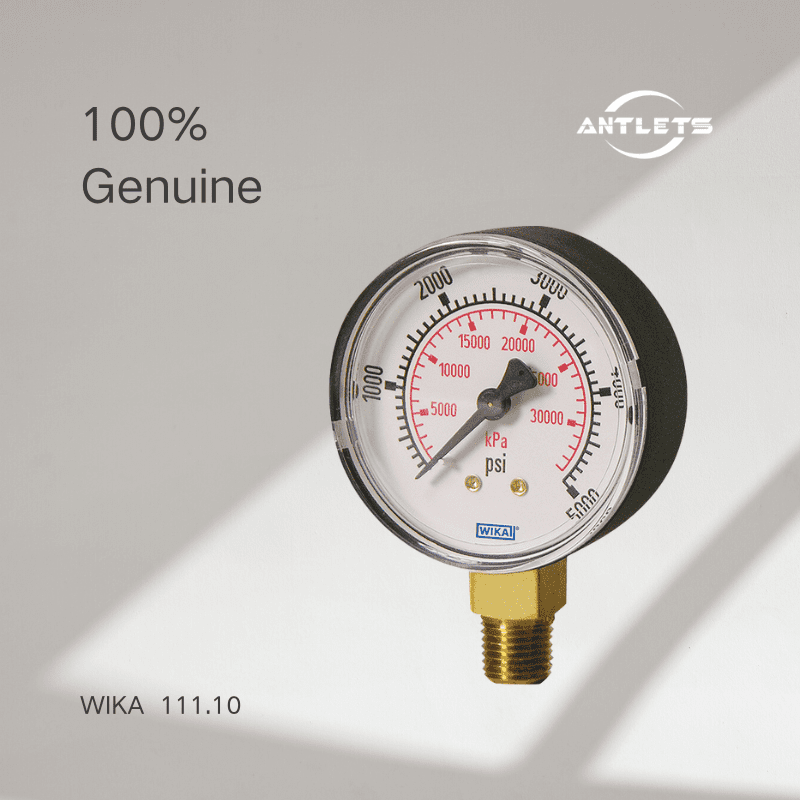

WIKA Models 111.10 Bourdon tube pressure gauge copper alloy Standard version
Original price was: $50.00.$35.00Current price is: $35.00.
The WIKA 111.10 is a reliable Bourdon tube pressure gauge designed for general industrial applications where durable and precise mechanical pressure measurement is required. With its robust copper-alloy construction and clear dial, it ensures long-term operation in standard industrial environments.
Typical Applications:
• General industrial process monitoring
• Hydraulic and pneumatic systems
• Machine building and plant engineering
• Water and wastewater systems
Not Recommended For:
• High-precision process control where electronic transmitters are required
• Applications involving highly corrosive or abrasive media
Selection Notes
• Confirm the required pressure range and scale size.
• Verify the process connection type (e.g., ¼, ½ NPT or other standard fittings).
• Check the mechanical mounting requirements (panel, surface, or threaded connection).
• Ensure the gauge material is compatible with the process medium.
• Consider environmental protection requirements (IP rating, vibration resistance).
Why Choose the WIKA 111.10 Bourdon Tube Pressure Gauge
• Reliable Mechanical Measurement
Proven Bourdon tube design ensures consistent pressure measurement over a wide range of industrial conditions.
• Durable Copper-Alloy Construction
Resistant to corrosion and mechanical wear, suitable for standard industrial applications.
• Clear and Easy-to-Read Dial
Standard dial with clear graduations for quick and accurate reading.
• Versatile Industrial Mounting Options
Available with various process connections and mounting configurations for flexible installation.
• Maintenance-Free Operation
No external power or electronics required, ideal for basic process monitoring tasks.
FAQ
Q: What pressure ranges are available for the 111.10?
A: The 111.10 is available in a wide variety of ranges, typically from 0–1 bar up to 0–600 bar.
Q: Can it be used with corrosive media?
A: For aggressive media, a suitable diaphragm seal or different material version may be required.
Q: Does it require power to operate?
A: No. As a mechanical gauge, it operates without any electrical power.
Q: Which industries commonly use the 111.10?
A: General industrial plants, hydraulic and pneumatic systems, machine building, and water treatment facilities.
| Standard | ■ EN 837-1 |
|---|---|
| Further version | ■ For closed heating systems |
| Nominal size (NS) | ■ Ø 40 mm [1 ½"] |
| Connection location | ■ Lower mount (radial) |
| Window | Plastic, crystal-clear, snap-fitted in case |
| Design | ■ Without safety level |
| Material | ■ Plastic, black |
| Mounting | ■ Without |
| Movement | Copper alloy |
| Measuring element | Type of measuring: elementBourdon tube, C-type or helical type |
| Accuracy class | EN 837-1:■ Class 1.6 ■ Class 2.5 |
