WIKA Model PGT21 Bourdon tube pressure gauge with output signal
$120.00
The WIKA Model PGT21 is a compact Bourdon tube pressure gauge that seamlessly integrates traditional analog pressure indication with modern electrical signal output capability. This versatile instrument provides both local visual reading and remote electronic monitoring through its 4-20 mA output signal. The robust mechanical movement ensures reliable pressure measurement while the integrated transmitter enables connection to control systems and data acquisition equipment. Ideal for industrial applications requiring dual monitoring capabilities, the PGT21 offers space-efficient design without compromising performance. Suitable for process control, machinery monitoring, and automation systems where comprehensive pressure supervision is essential.
Applications
- General machine building
- Technical and medical gases
- Renewable energies
Special Features
-
- Non-contact sensor (wear-free)
- Robust stainless steel case

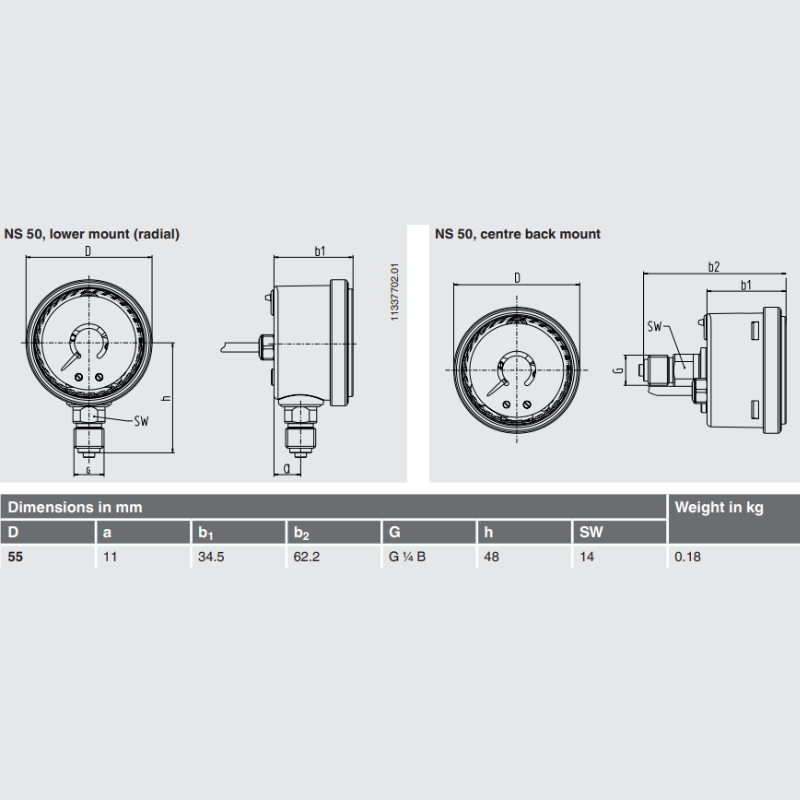

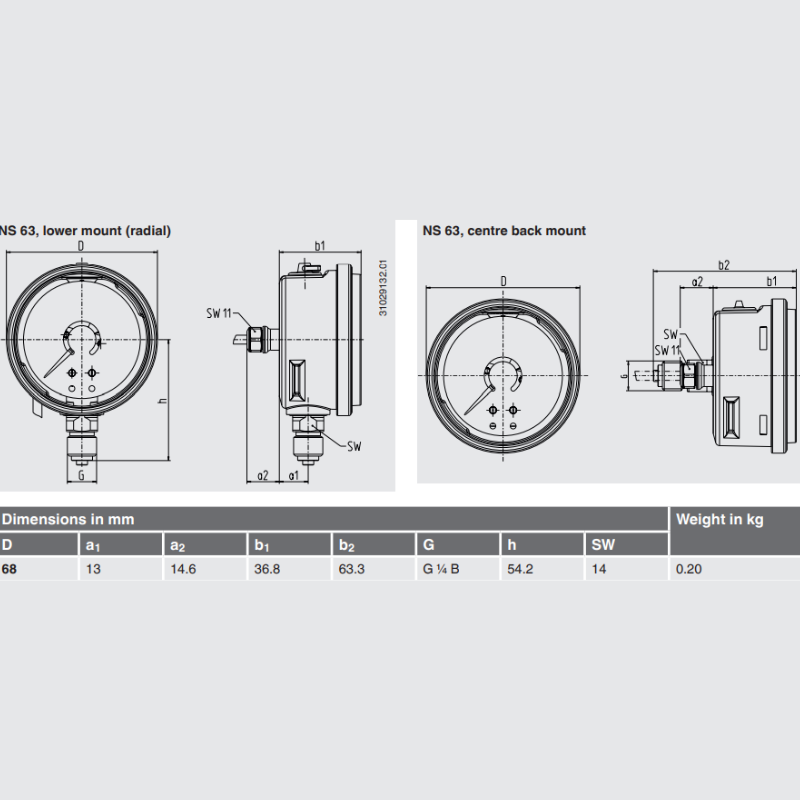

- Nominal size 50, 63
- Scale ranges 0 … 1.6 bar to 0 … 400 bar
- Analogue output signal 4 … 20 mA or DC 0.5 … 4.5 V
| Design | EN 837-1 |
|---|---|
| Nominal size in mm | 50, 63 |
| Accuracy class | 2.5 |
| Scale ranges | 0 … 1.6 to 0 … 400 bar |
| Pressure limitation | Steady: 3/4 x full scale value |
| Permissible temperature | Ambient: -20 … +60 °C |
| Temperature effect | When the temperature of the measuring system deviates |
| Process connection | Copper alloy |
| Pressure element | Copper alloy |
| Movement | Copper alloy |
| Dial | Plastic, white, black lettering |
| Pointer | Plastic, black |
| Case | Stainless steel |
| Window | Plastic, crystal-clear (PC) |
| Ingress protection | IP65 per lEC/EN 60529 |
| Power supply (UB) | DC 5 V / DC 12 … 32 V |
| Electrical connection | Cable outlet, standard length 2 m |
| Approvals | EU declaration of conformity |
