VEGABAR 29
VEGABAR 29
VEGABAR 29

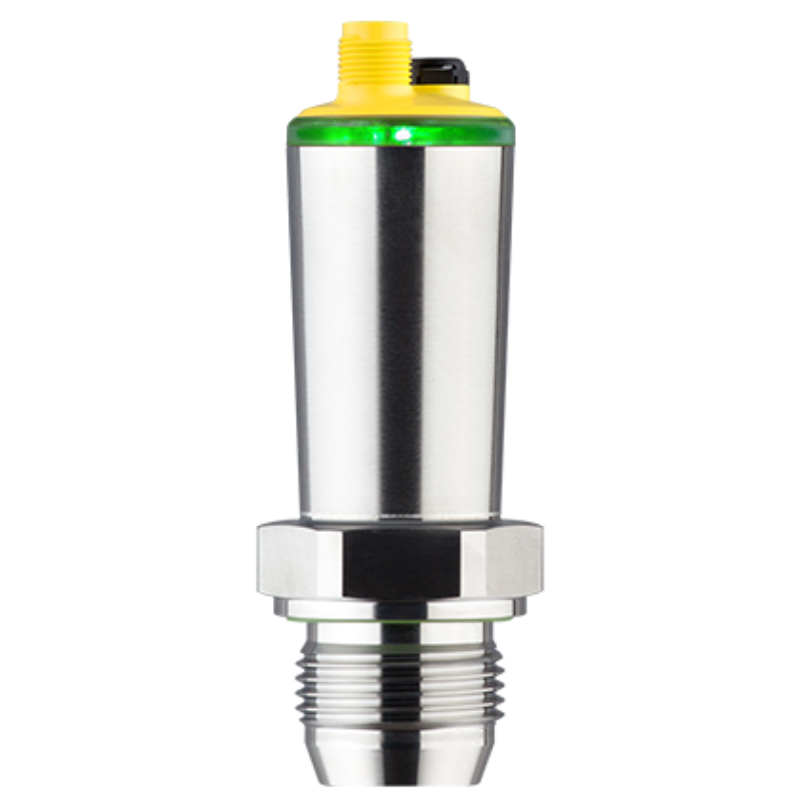

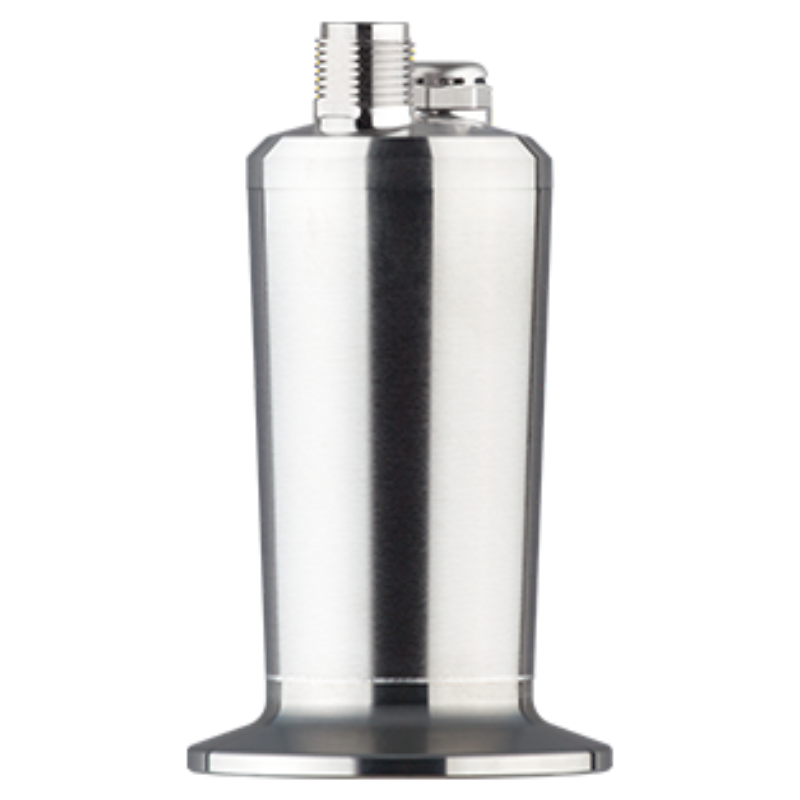

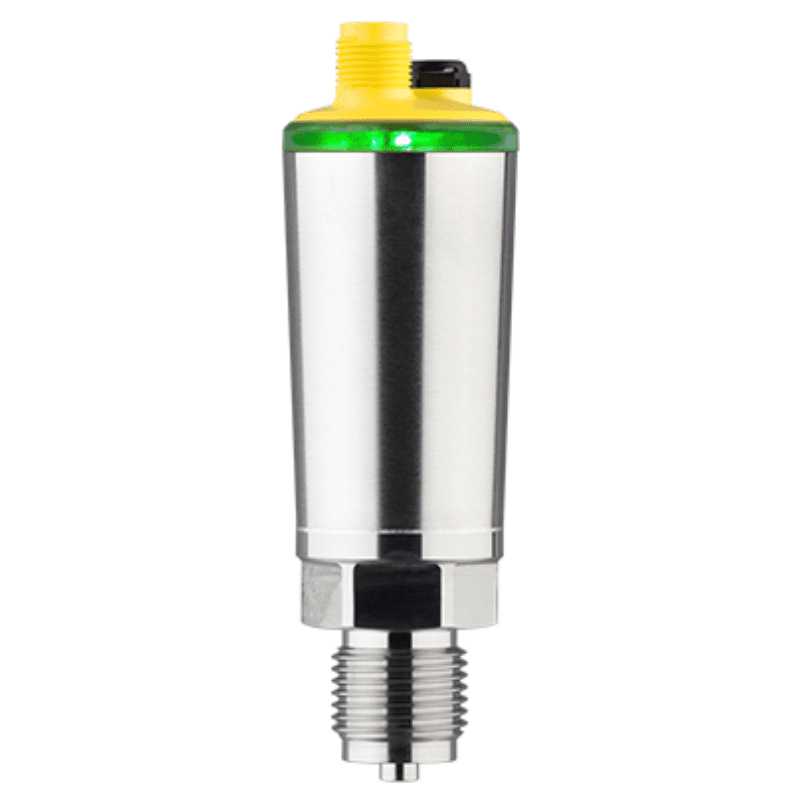

VEGABAR 29 Pressure sensor with switching function

$305.00

With metallic measuring cell

Product catalog Process pressure

Product information VEGABAR 18, 19, 28, 29, 38, 39

Specification sheet VEGABAR 29

Operating instructions VEGABAR 29

Category: Tags: , Brand:

VEGABAR 29

Pressure sensor with switching function

Application area

From thread ½”, hygienic connections, universal connection G1″ for hygiene adapter, 4 … 20 mA, three-wire: PNP/NPN, 4 … 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display
VEGABAR 29 is a universal pressure transmitter with metal measuring cell for measurement of gases, vapours and liquids up to 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping.

Your benefit

  • Universally applicable due to fully welded metallic measuring cell
  • Coloured 360° status display, adjustable
  • Easy integration into control systems through IO-Link communication
Measuring range - Pressure

-1 … 1000 bar [Bar – kPa – psi]
Process temperature

-40 … 130 °C [°C – °F]
Accuracy

0.3 %
Materials, wetted parts

316L
Threaded connection

≥ G¼, ≥ ¼ NPT
Hygenic fittings

Clamp ≥ 2", DN50 – DIN32676, ISO2852
Clamp ≥ 1" – DIN32676, ISO2852
Clamp ≥ 1½" – DIN32676, ISO2852
Slotted nut ≥ 1½", ≥ DN40 – DIN 11851
Slotted nut ≥ DN25 – DIN 11851
SMS 1145 DN51
SMS DN38
Hygienic fittings ≥ DN25 – DIN11864-1-A
Hygienic fittings ≥ DN40 – DIN11864-1-A
Varivent N50-40
SMS DN25
Ingold connection PN10
Varivent F25
Protection rating

IP65
IP68 (0,5 bar)/IP69
Output

4 … 20 mA
Three-wire (PNP/NPN, 4 … 20 mA)
IO-Link
Ambient temperature

-40 … 70 °C
Scope

ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
KOSHA / Korea
NEPSI / China
UKR Sepro / Ukraine
INMETRO / Brazil
Explosion protection

Intrinsic safety "i"
Dust ignition protection "t"
Increased safety "e"
Foodstuffs/Pharma

FDA
Drinking water
EG1935/2004
Ship approval

ABS
BV
CCS
DNV
LR
NK
RINA
Adjustment

Smartphone / Tablet / PC via Bluetooth
PC, PACTware and DTM, IODD
Indication

360° status display
