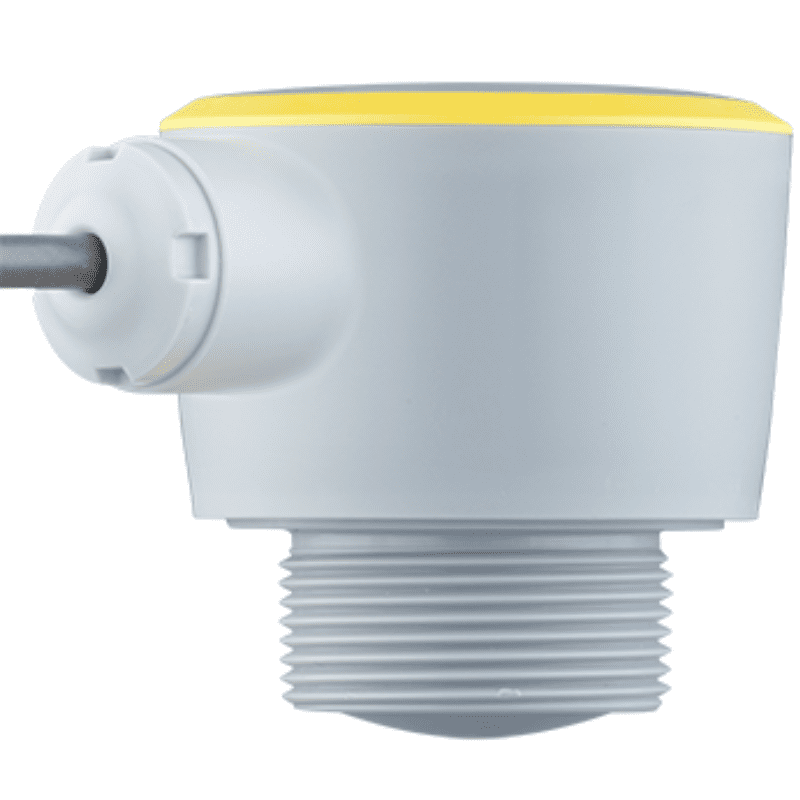

VEGAPULS C 22

VEGAPULS 11 Compact radar sensor for continuous level measurement

$580.00

For simple measuring tasks, plastic housing IP66/IP67, Type 4X

Product catalog-VEGAPULS 11

Product information-VEGAPULS C11-C21-C22-C23 11 21 31

Specification sheet-VEGAPULS 11

Operating instructions VEGAPULS 11



Category: Tag: Brand:

Application area

4 … 20 mA output, measuring range up to 10 m, accuracy ±5 mm
VEGAPULS 11 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple applications. It is particularly suitable for use in water treatment, storage tanks with acids, lyes and additives in all industrial areas, or for measuring levels in plastic tanks from the outside through the tank wall. In bulk solids the sensors are used in small bulk solids silos or open containers.

Your benefit

  • High plant availability through non-contact measurement
  • Exact measurement results independent of medium properties and process conditions
  • Maintenance-free operation due to non-contact 80 GHz radar technology
Measuring range - Distance

10 m [Meter – Foot]
Process temperature

-40 … 60 °C [°C – °F]
Process pressure

-1 … 3 bar [Bar – kPa – psi]
Accuracy

± 5 mm / ± 0.2"
Frequency

80 GHz
Beam angle

8°
Materials, wetted parts

PVDF
Threaded connection

G1½, 1½ NPT, R1½
Seal material

FKM
Housing material

Plastic
Protection rating

IP66/IP67, Type 4X
Output

4 … 20 mA
Ambient temperature

-40 … 60 °C
