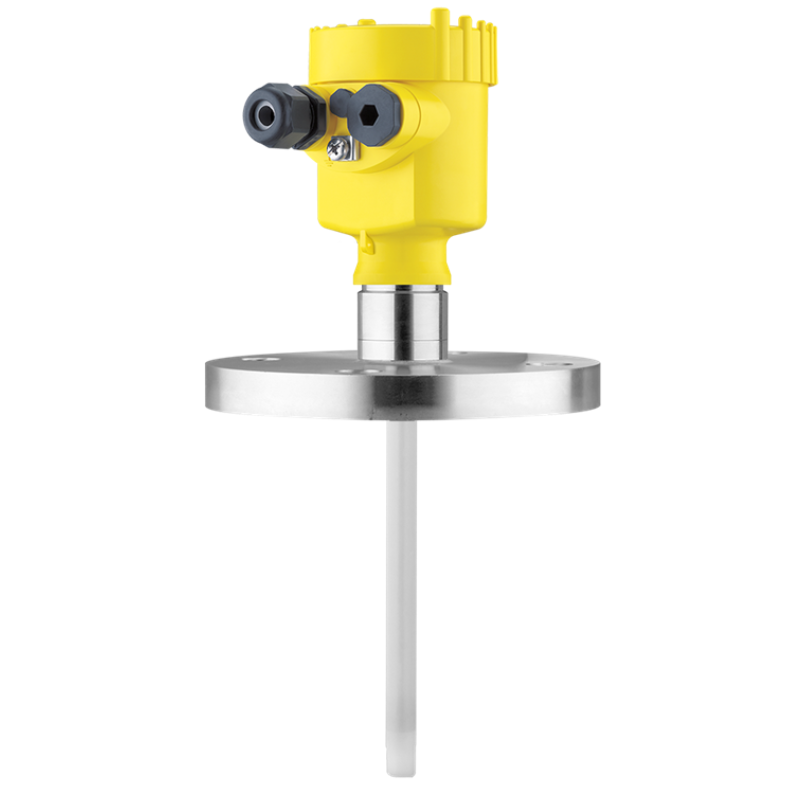

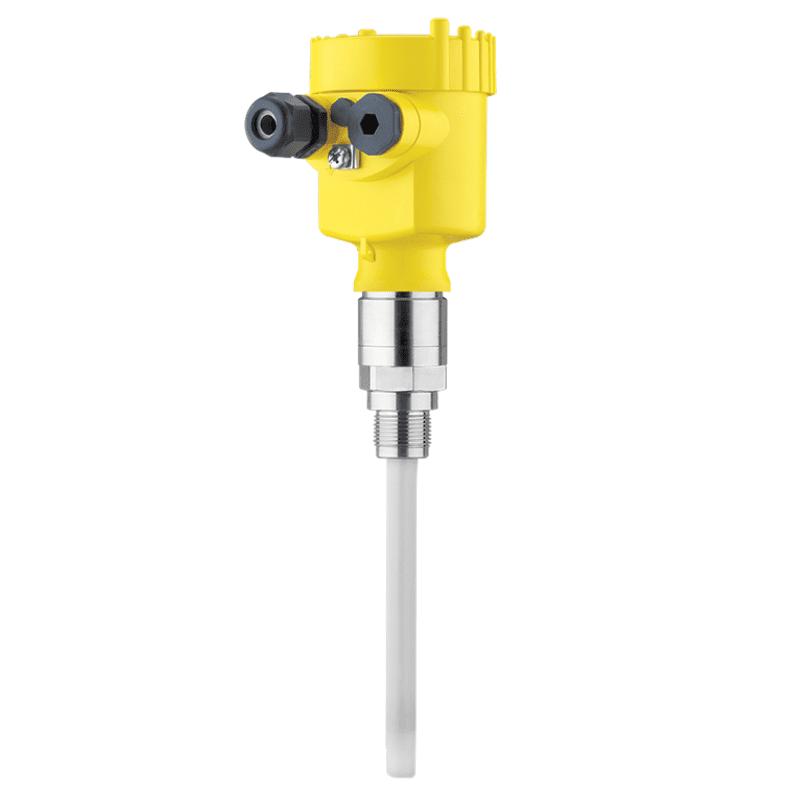

VEGACAL 63 Capacitive rod probe for continuous level measurement

Selection Notes

• Confirm the type of liquid medium, including whether it is conductive or non‑conductive.
• Verify the required measuring range up to 6 m, depending on probe length.
• Choose the insulation material (PE or PTFE) according to chemical compatibility.
• Select the appropriate process connection, such as threaded (≥ G½ / ≥ ½ NPT) or flanged (≥ DN25 / ≥ 1″).
• In addition, define the required output interface, including 4…20 mA/HART, PROFIBUS PA or Foundation Fieldbus.

Why Choose the VEGA VEGACAL 63

• Universal Liquid Application
Because the rod electrode is fully insulated, the sensor works well in both conductive and non‑conductive liquids. This flexibility simplifies inventory and selection.

• Simple Installation and Setup
The sensor offers straightforward mounting and adjustment, helping reduce commissioning time and labor costs.

• Robust Mechanical Construction
With its durable design and reliable electrode insulation, the sensor offers a long operational life and reduced maintenance needs.

• Full Level Utilization
Measurement along the complete probe length allows maximum tank utilization and accurate level data across the entire range.

• Flexible Output Options
Various digital and analog outputs are available, including 4…20 mA with HART, Foundation Fieldbus, and PROFIBUS PA, making integration with automation systems easier.

FAQ

Q: What is the measuring principle of VEGACAL 63?
A: It uses capacitive level measurement, where the probe and vessel form an electrical capacitor. As the liquid covers the probe, capacitance changes and the electronics convert it into a level‑proportional signal.

Q: Can this sensor measure both conductive and non‑conductive liquids?
A: Yes. The fully insulated rod electrode enables universal use in a wide range of liquids.

Q: What outputs are supported?
A: Output options include 4…20 mA/HART, PROFIBUS PA and Foundation Fieldbus.

Q: What process connections are available?
A: The VEGACAL 63 supports threaded and flanged connections such as ≥ G½ / ≥ ½ NPT and ≥ DN25 / ≥ 1″.
