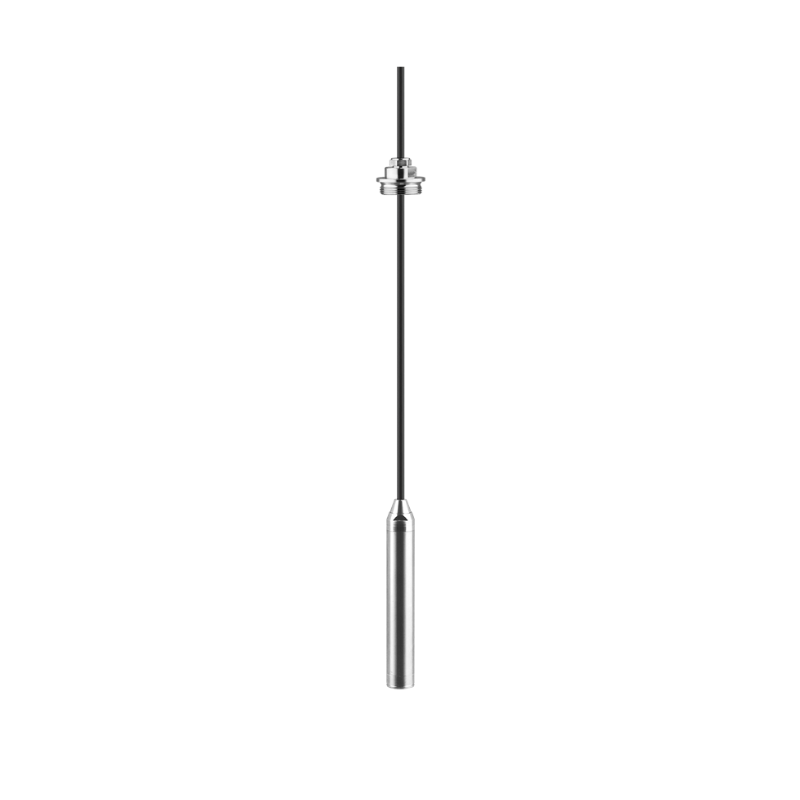

VEGA VEGAWELL 52 Submersible pressure transmitter WELL 52 with ceramic measuring cell With ceramic measuring cell
$700.00
The VEGA VEGAWELL 52 Submersible Pressure Transmitter is designed for continuous hydrostatic level measurement in liquids, especially in water, wastewater, wells, reservoirs, and pump stations.
Using a robust ceramic measuring cell, it delivers stable and reliable level measurement even in harsh environmental conditions. Its submersible construction with suspension cable allows easy installation in deep tanks and open water applications.
The transmitter measures hydrostatic pressure generated by the liquid column and converts it into an accurate level signal. Therefore, it is widely used in environmental monitoring and industrial water systems.
Typical applications include groundwater monitoring, wastewater treatment plants, river level measurement, boreholes, and storage tanks.
Not Recommended For:
• Gas or vapor pressure measurement
• Highly viscous or crystallizing media that may coat the diaphragm
Selection Notes
• Confirm the measuring depth and pressure range based on liquid height
• Verify the medium type, especially for compatibility with ceramic measuring cell
• Select required cable length for tank, well, or borehole installation
• Ensure suitability for continuous submersion and outdoor environments
• Choose required output signal, such as 4–20 mA or HART
• Confirm environmental requirements including IP68 protection
Why Choose the VEGAWELL 52
• Reliable Hydrostatic Level Measurement
Measures liquid level based on hydrostatic pressure. Therefore, it provides stable and continuous level monitoring.
• Submersible Design for Water Applications
Designed for direct immersion in liquids, making it ideal for wells, reservoirs, and wastewater systems.
• Robust Ceramic Measuring Cell
The ceramic sensor offers excellent resistance to overload, abrasion, and aggressive media. As a result, long-term stability is improved.
• High Protection for Harsh Environments
With IP68-rated construction, the transmitter supports long-term operation in wet and outdoor environments.
• Simple and Flexible Installation
The cable-suspended design simplifies installation in deep tanks and narrow boreholes.
• Low Maintenance Operation
No moving parts and durable construction minimize maintenance requirements and downtime.
• Suitable for Environmental Monitoring
Widely used in groundwater, river, and wastewater monitoring applications.
FAQ
Q: What is VEGAWELL 52 mainly used for?
A: It is used for continuous liquid level measurement in water and wastewater applications.
Q: How does it measure level?
A: It uses hydrostatic pressure measurement, converting liquid pressure into level value.
Q: Can it be permanently submerged?
A: Yes. It is designed for continuous submersion with IP68 protection.
Q: Is it suitable for wells and boreholes?
A: Yes. Its slim submersible design makes it ideal for deep well and groundwater monitoring applications.
| Measuring range - Pressure | 0 … 60 bar [Bar – kPa – psi] |
|---|---|
| Process temperature | -20 … 80 °C [°C – °F] |
| Process pressure | – [Bar – kPa – psi] |
| Accuracy | 0.1 % |
| Materials, wetted parts | PVDF |
| Seal material | EPDM |
| Protection rating | IP66/IP67 |
| Output | 4 … 20 mA |
| Ambient temperature | -40 … 80 °C |
| Scope | ATEX / Europe |
| Explosion protection | Intrinsic safety "i" |
| Foodstuffs/Pharma | Drinking water |
| Ship approval | ABS |
| Overfill protection | WHG |
| Adjustment | PC, PACTware and DTM |
| Indication | VEGADIS 82 |
