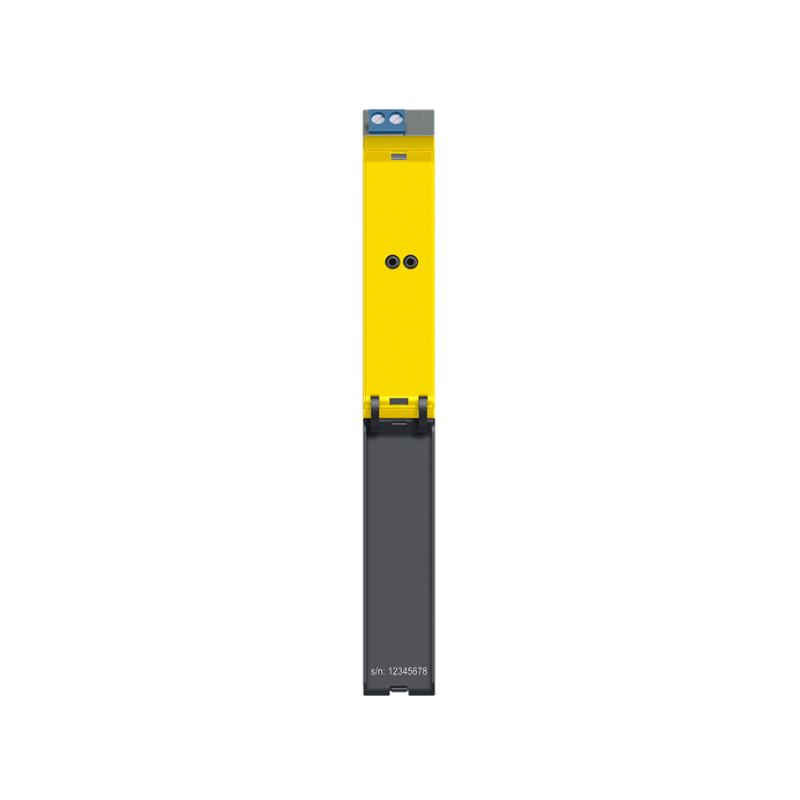

VEGA TRENN 151 VEGATRENN 151 Separator for 4 … 20 mA sensors
$150.00
The VEGATRENN 151 Separator is a compact, single-channel signal isolator designed for 4–20 mA sensors. It provides reliable galvanic isolation and safe signal transmission in hazardous and non-hazardous environments. This makes it ideal for connecting Ex-approved sensors to control systems without intrinsic safety approval.
The device supports bidirectional HART communication, allowing full access to sensor configuration. In addition, it requires no separate power supply, which simplifies installation and reduces wiring effort.
Not Recommended For:
• Applications requiring multi-channel signal isolation
• Systems needing active signal amplification
Selection Notes
• Signal Type: The VEGATRENN 151 supports 1 × 4–20 mA input/output with HART transmission. Confirm compatibility with your sensor and control system.
• Application Area: It is ideal for hazardous areas (Ex zones) where safe signal isolation is required between field devices and control systems.
• Channel Requirement: This is a single-channel, passive device. If you need multiple channels, consider other models like VEGATRENN 152.
• Installation Method: The unit supports DIN rail mounting with removable terminals, ensuring quick and easy installation.
• Environment: Suitable for ambient temperatures from -20 to +60°C. Ensure your installation environment falls within this range.
Why Choose the VEGATRENN 151
• Reliable Galvanic Isolation
The VEGATRENN 151 provides safe separation between intrinsically safe and non-intrinsically safe circuits. This improves system safety and protects equipment in hazardous areas.
• Full HART Transparency
It supports bidirectional HART communication, so you can configure and monitor sensors without signal loss. This ensures full access to device parameters at any time.
• No External Power Supply Required
The passive design eliminates the need for an additional power source. As a result, installation becomes simpler and more cost-effective.
• Quick and Easy Installation
DIN rail mounting and detachable coded terminals make wiring fast and error-free. This reduces installation time and improves maintenance efficiency.
• Compact and Reliable Design
The compact housing fits easily into control cabinets. At the same time, the device ensures stable signal transmission in industrial environments.
FAQ
Q: What is the main function of the VEGATRENN 151?
A: It provides galvanic isolation and transmits 4–20 mA signals safely between hazardous and safe areas.
Q: Does the VEGATRENN 151 support HART communication?
A: Yes. It allows bidirectional HART signal transmission, enabling full sensor access.
Q: Does it require an external power supply?
A: No. The VEGATRENN 151 is a passive device, so it does not require additional power.
Q: Can it be used in hazardous areas?
A: Yes. It is designed for intrinsically safe applications and supports Ex-approved systems.
| Protection rating | IP20 |
|---|---|
| Input | 1 x 4 … 20 mA/HART sensor input |
| Output | 1 x 4 … 20 mA |
| Ambient temperature | -20 … 60 °C |
| Scope | ATEX / Europe |
| SIL qualification | SIL2 |
