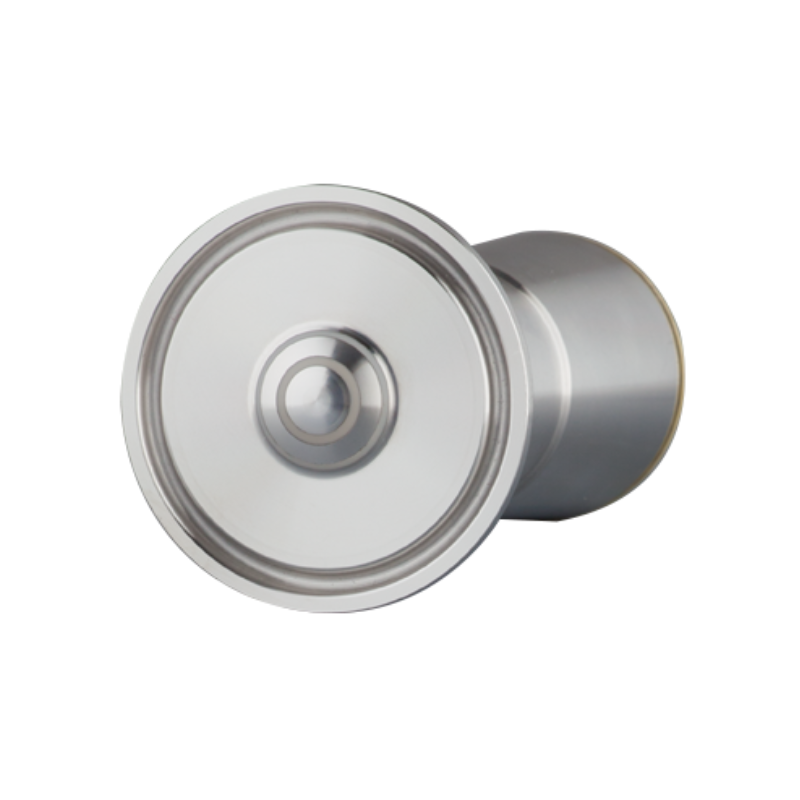

VEGA POINT24 VEGAPOINT 24 Compact capacitive limit switch
$220.00
The VEGAPOINT 24 is a compact capacitive level switch designed for reliable point level detection in both liquids and bulk solids. Ideal for small tanks and confined spaces, this versatile switch features a maintenance-free design with no moving parts, ensuring long-term reliability. Its capacitive sensing technology provides accurate detection regardless of material conductivity. Easy to install and calibrate, the VEGAPOINT 24 offers effective overfill protection and dry-run prevention across various industries including food, chemical and pharmaceutical processing. The robust construction makes it a cost-effective solution for demanding industrial environments where space is limited but reliability is crucial.
Application area
Your benefit
- Coloured 360° status display, adjustable
- Easy integration into control systems through IO-Link communication
- Low-cost limit switch with smallest installation dimensions
| Measuring range - Distance | – [Meter – Foot] |
|---|---|
| Process temperature | -40 … 115 °C [°C – °F] |
| Process pressure | -1 … 64 bar [Bar – kPa – psi] |
| Materials, wetted parts | 316L |
| Threaded connection | G½ |
| Hygenic fittings | Clamp ≥ 2", DN50 – DIN32676, ISO2852 |
| Protection rating | IP66/IP67 |
| Output | Transistor (NPN/PNP) |
| Ambient temperature | -40 … 70 °C |
| Scope | ATEX / Europe |
| Explosion protection | Increased safety "e" |
| Foodstuffs/Pharma | 3A |
| Adjustment | Smartphone / Tablet / PC via Bluetooth |
| Indication | 360° status display |
