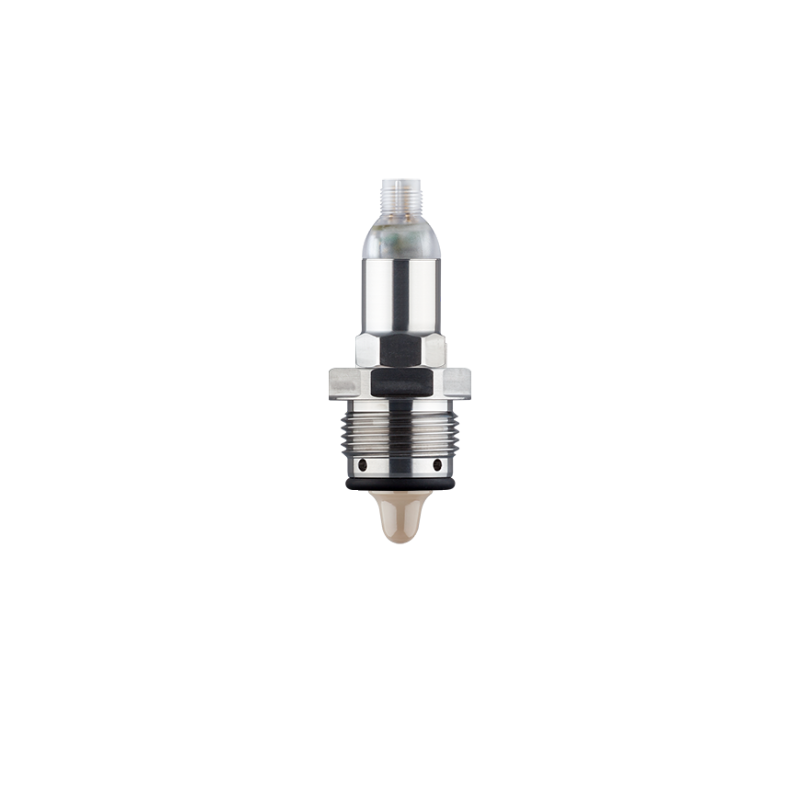

VEGA POINT11 VEGAPOINT 11 Ultra-compact capacitive limit switch
$150.00
The VEGAPOINT 11 is an ultra-compact capacitive level switch designed for reliable point level detection in both liquids and solids. With its miniature dimensions and versatile mounting options, it is the perfect solution for applications where space is limited, such as small tanks, containers, and machinery. This switch operates on the capacitive principle, detecting the presence or absence of material based on changes in the electrical capacitance. It features easy installation and setup, with no moving parts that could wear out, ensuring long-term reliability and minimal maintenance. The VEGAPOINT 11 is suitable for a wide range of industries including food and beverage, pharmaceuticals, and chemical processing. Its robust design and consistent performance make it an economical choice for ensuring process efficiency and preventing overfill or dry-run conditions in compact applications.
VEGA POINT11 VEGAPOINT 11 Ultra-compact capacitive limit switch
Application area
Your benefit
- Simple setup, as adjustment-free
- Low-cost limit switch with smallest installation dimensions
| Measuring range - Distance | – [Meter – Foot] |
|---|---|
| Process temperature | -20 … 100 °C [°C – °F] |
| Process pressure | -1 … 64 bar [Bar – kPa – psi] |
| Materials, wetted parts | 316L |
| Threaded connection | ≥ G½, ≥ ½ NPT |
| Seal material | EPDM |
| Protection rating | IP66/IP67 |
| Output | Transistor (PNP) |
| Ambient temperature | -40 … 70 °C |
| Scope | CSA / USA and Canada |
| Foodstuffs/Pharma | 3A |
| Indication | LED |
