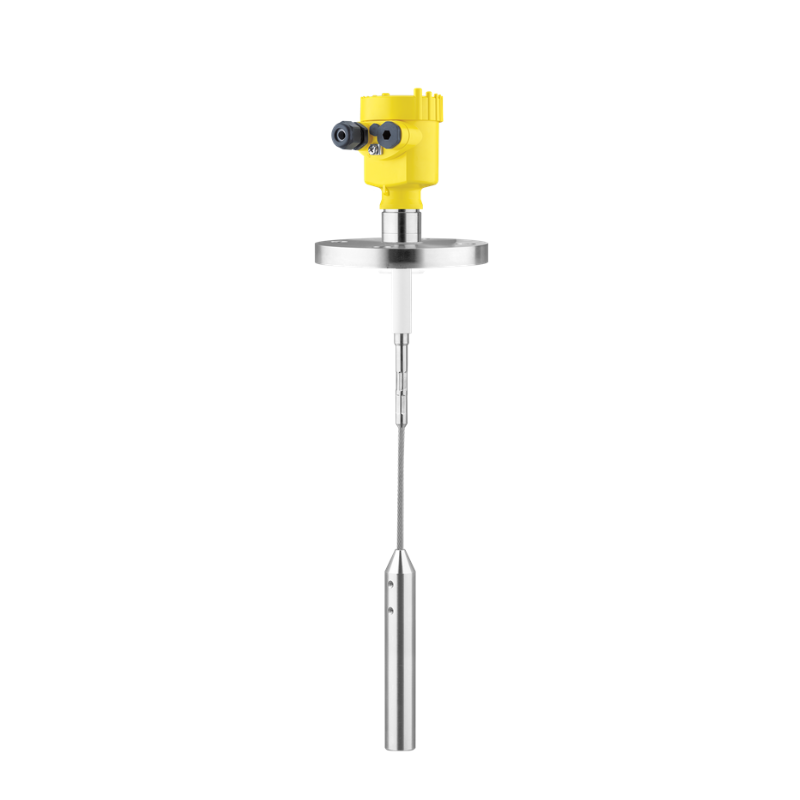

VEGA CAP65 VEGACAP 65 Capacitive cable probe for level detection
$700.00
The VEGACAP 65 capacitive cable probe is designed for reliable level detection in silos, deep vessels, and large containers. Its flexible cable design allows for extended reach, making it ideal for monitoring both bulk solids and liquids in deep applications. The probe features robust construction that withstands demanding industrial environments while providing accurate measurements. Easy to install and requiring minimal maintenance, the VEGACAP 65 is perfect for applications where rigid probes cannot be used. Suitable for various industries including chemical, food processing, and storage, this cable probe ensures dependable level monitoring in challenging conditions.
Application area
Your benefit
- High flexibility through shortenable probe
- Long lifetime and low maintenance requirement through robust mechanical construction
- Reliable switching point due to large gravity weight
| Measuring range - Distance | – [Meter – Foot] |
|---|---|
| Process temperature | -50 … 200 °C [°C – °F] |
| Process pressure | -1 … 64 bar [Bar – kPa – psi] |
| Version | Cable ø 6 mm with screening tube without weight |
| Materials, wetted parts | PTFE |
| Threaded connection | ≥ G1, ≥ 1 NPT |
| Flange connection | ≥ DN50, ≥ 2" |
| Housing material | Plastic |
| Protection rating | IP66/IP68 (0,2 bar) |
| Output | Relay (DPDT) |
| Ambient temperature | -40 … 80 °C |
| Scope | ATEX / Europe |
| Explosion protection | Intrinsic safety "i" |
| Ship approval | ABS |
| Overfill protection | WHG |
| SIL qualification | SIL2 |
| Indication | Pluggable display module PLICSLED |
