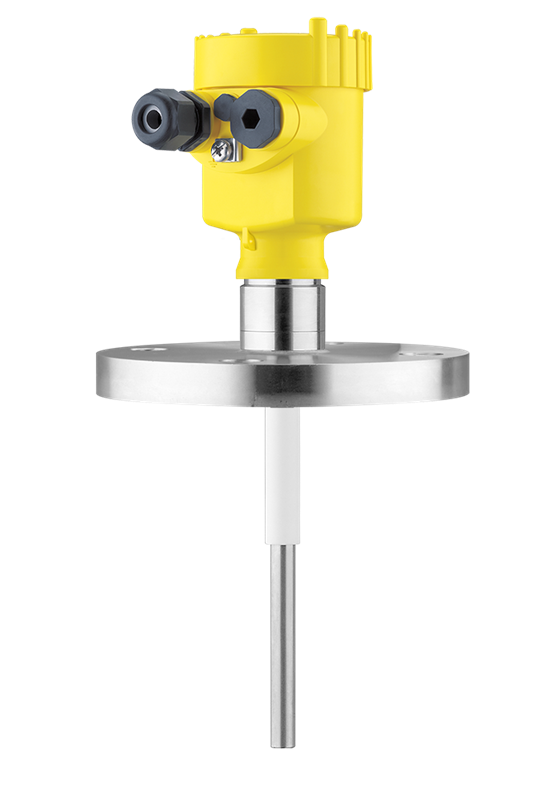

VEGA CAP62 VEGACAP 62 Capacitive rod probe for level detection
$1,000.00
The VEGA VEGACAP 62 Capacitive Rod Probe is a point level switch designed for reliable level detection of liquids and bulk solids across a wide range of industries.
Using capacitive measurement technology, it detects level changes based on dielectric variation, making it suitable for both conductive and non-conductive media. Its partly PTFE-insulated rod probe ensures stable operation and resistance to harsh environments.
With a robust industrial design and adjustable probe length, VEGACAP 62 provides flexible installation and long-term reliability, even in demanding process conditions.
Typical applications include tank level detection, silo high/low level alarms, overfill protection, and dry-run protection systems.
Not Recommended For:
• Continuous level measurement (use VEGACAL series instead)
• Heavy buildup or adhesive media (better use fully insulated probes like VEGACAP 64)
Selection Notes
• Confirm application type: point level detection (high/low level switching)
• Identify medium type: liquids or bulk solids (conductive or non-conductive)
• Select probe length (up to ~6 m) depending on tank or silo height
• Choose process connection, such as threaded (≥ G½) or flange (≥ DN25)
• Verify temperature range (-50 to +200 °C) and pressure conditions
• Select required output type: relay, transistor (PNP/NPN), or two-wire system
Why Choose the VEGACAP 62
• Reliable Point Level Detection
Capacitive technology detects level changes based on dielectric differences. Therefore, it works with a wide range of media.
• Suitable for Liquids and Bulk Solids
The partly insulated rod probe supports both liquid and solid applications, ensuring versatility across industries.
• Flexible Probe Length Design
The probe can be shortened to fit different tank sizes. As a result, installation flexibility is significantly improved.
• Robust Mechanical Construction
Designed for industrial environments, it ensures long service life with minimal maintenance.
• Wide Process Compatibility
Supports pressures from -1 to 64 bar and temperatures up to 200°C, making it suitable for demanding applications.
• Multiple Output Options
Available with relay, transistor, or electronic switching outputs, enabling easy integration into control systems.
• Certified for Industrial and Hazardous Areas
Supports ATEX, FM, IECEx, and other approvals, including SIL2 safety rating, ensuring high operational safety.
FAQ
Q: What is VEGACAP 62 used for?
A: It is used for point level detection (high/low level switching) in tanks and silos.
Q: Can it measure both liquids and solids?
A: Yes. It is suitable for liquids and bulk solids, including non-conductive materials.
Q: Is it a continuous level transmitter?
A: No. It is a level switch, not a continuous measurement device.
Q: Can it be used in hazardous areas?
A: Yes. It is available with Ex certifications and SIL2 approval for safety-critical applications.
| Measuring range - Distance | – [Meter – Foot] |
|---|---|
| Process temperature | -50 … 200 °C [°C – °F] |
| Process pressure | -1 … 64 bar [Bar – kPa – psi] |
| Version | with screening tube PN1 |
| Materials, wetted parts | PTFE |
| Threaded connection | ≥ G½, ≥ ½ NPT |
| Flange connection | ≥ DN25, ≥ 1" |
| Seal material | no media contact |
| Housing material | Plastic |
| Protection rating | IP66/IP68 (0,2 bar) |
| Output | Relay (DPDT) |
| Ambient temperature | -40 … 80 °C |
| Scope | ATEX / Europe |
| Explosion protection | Intrinsic safety "i" |
| Foodstuffs/Pharma | FDA |
| Ship approval | ABS |
| Overfill protection | WHG |
| SIL qualification | SIL2 |
| Indication | Pluggable display module PLICSLED |
