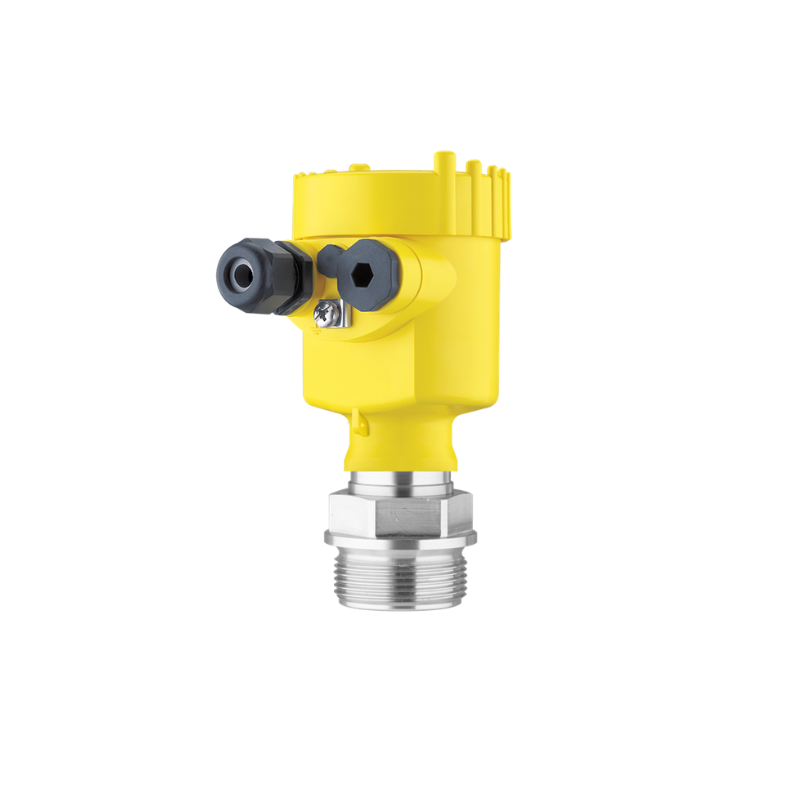

VEGA BAR 82 VEGABAR 82 Pressure transmitter with ceramic measuring cell
$999.00
The VEGABAR 82 pressure transmitter features a robust ceramic measuring cell specifically engineered for abrasive and corrosive media in process applications. This advanced ceramic technology provides exceptional resistance to wear, ensuring long-term stability and accuracy in the most demanding industrial environments. Ideal for chemical processing, mining, and wastewater applications, the transmitter maintains reliable performance even with aggressive slurries and abrasive liquids. With its maintenance-free operation, high overload capability, and excellent chemical resistance, the VEGABAR 82 offers outstanding durability where conventional sensors would rapidly deteriorate, making it the optimal choice for challenging process conditions.
Application area
Your benefit
- Low maintenance costs thanks to wear-free ceramic measuring cell
- High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
- Measurement down to the last drop through smallest measuring ranges with high accuracy
| Measuring range - Distance | – [Meter – Foot] |
|---|---|
| Measuring range - Pressure | -1 … 100 bar [Bar – kPa – psi] |
| Process temperature | -40 … 150 °C [°C – °F] |
| Process pressure | -1 … 100 bar [Bar – kPa – psi] |
| Accuracy | 0.05 % |
| Materials, wetted parts | PVDF |
| Threaded connection | ≥ G¼, ≥ ¼ NPT |
| Flange connection | ≥ DN15, ≥ ½" |
| Hygenic fittings | Clamp ≥ 1" – DIN32676, ISO2852 |
| Seal material | Seal material |
| Housing material | Plastic |
| Protection rating | IP66/IP68 (0,2 bar) |
| Output | Profibus PA |
| Ambient temperature | -40 … 80 °C |
| Scope | ATEX / Europe |
| Explosion protection | Intrinsic safety "i" |
| Foodstuffs/Pharma | 3A |
| Ship approval | ABS |
| Overfill protection | WHG |
| SIL qualification | SIL2 |
| Adjustment | PLICSCOM |
| Indication | Display/adjustment module PLICSCOM |
