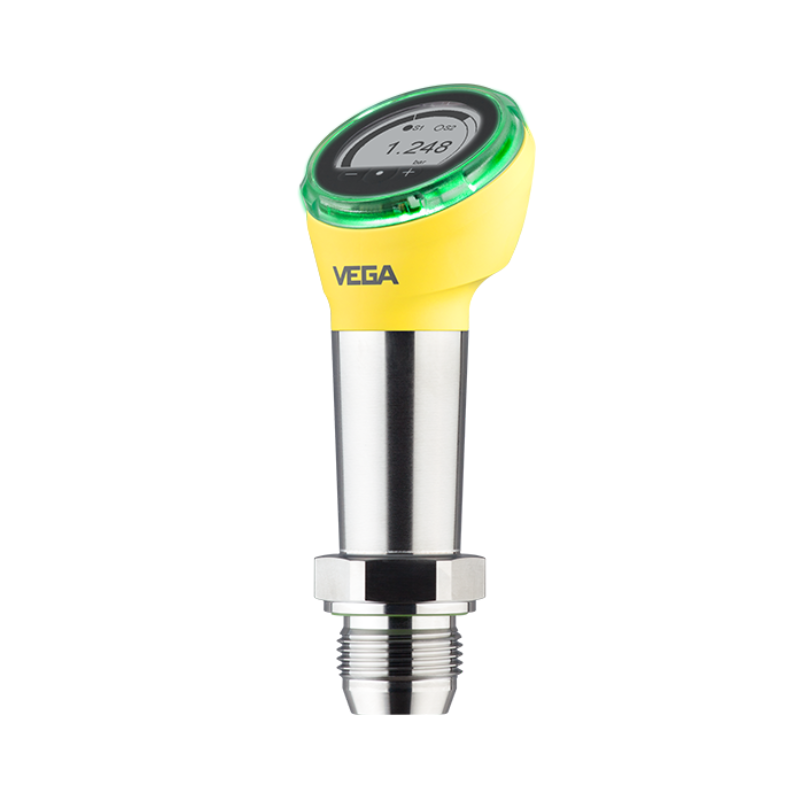

VEGA BAR 39 VEGABAR 39 Pressure sensor with switching function
$620.00
The VEGABAR 39 compact pressure sensor integrates precise pressure measurement with reliable switching functions for space-constrained industrial processes. This space-saving solution delivers accurate pressure monitoring while offering configurable switching outputs for alarm and control functions. Specifically designed for tight installation spaces in chemical processing, water treatment, and manufacturing applications, it maintains dependable performance in challenging environments. Featuring robust construction and simplified configuration, the VEGABAR 39 combines continuous measurement with discrete switching in one compact unit, providing efficient monitoring solutions where space optimization and reliable performance are equally important.
Application area
Your benefit
- Coloured 360° status display, display and on-site operation with VDMA menu structure
- Universally applicable due to fully welded metallic measuring cell
- Easy integration into control systems through IO-Link communication
| Measuring range - Pressure | -1 … 1000 bar [Bar – kPa – psi] |
|---|---|
| Process temperature | -40 … 130 °C [°C – °F] |
| Accuracy | 0.3 % |
| Materials, wetted parts | 316L |
| Threaded connection | ≥ G¼, ≥ ¼ NPT |

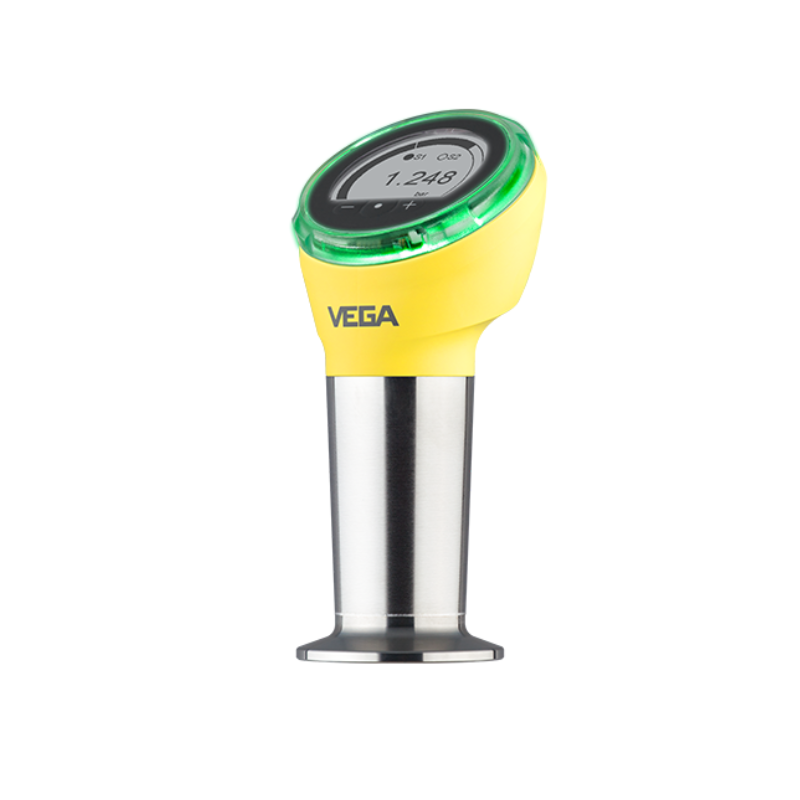

| Hygenic fittings | Clamp ≥ 2", DN50 – DIN32676, ISO2852 |
| Housing material | Plastic |
| Protection rating | IP66/IP67 |
| Output | 4 … 20 mA |
| Ambient temperature | -40 … 70 °C |
| Scope | ATEX / Europe |
| Explosion protection | Intrinsic safety "i" |
| Foodstuffs/Pharma | 3A |
| Ship approval | ABS |
| Adjustment | Smartphone / Tablet / PC via Bluetooth |
| Indication | Graphic-capable clear text indication with background lighting |
