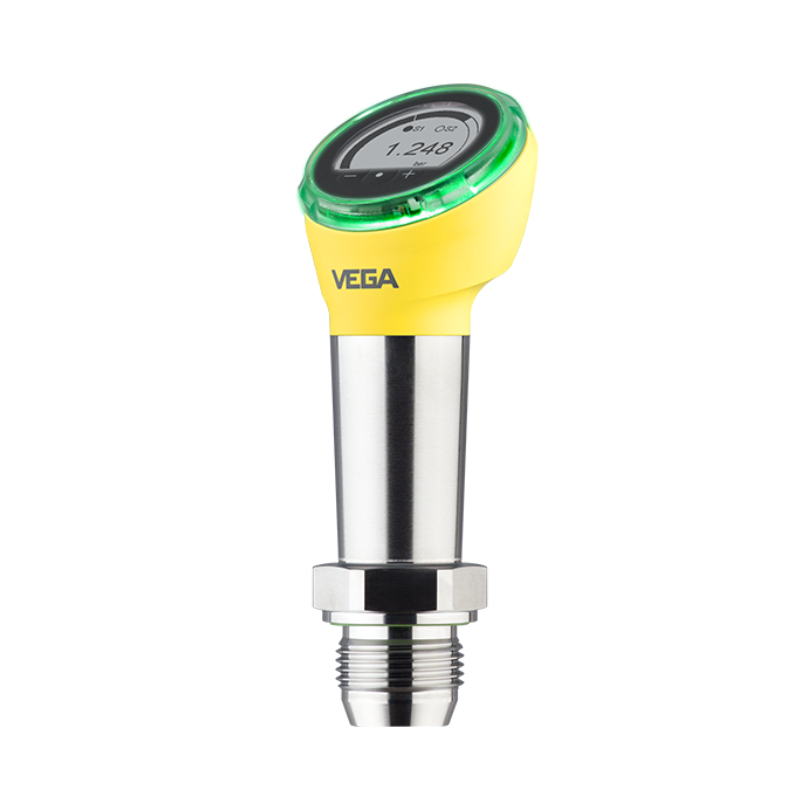

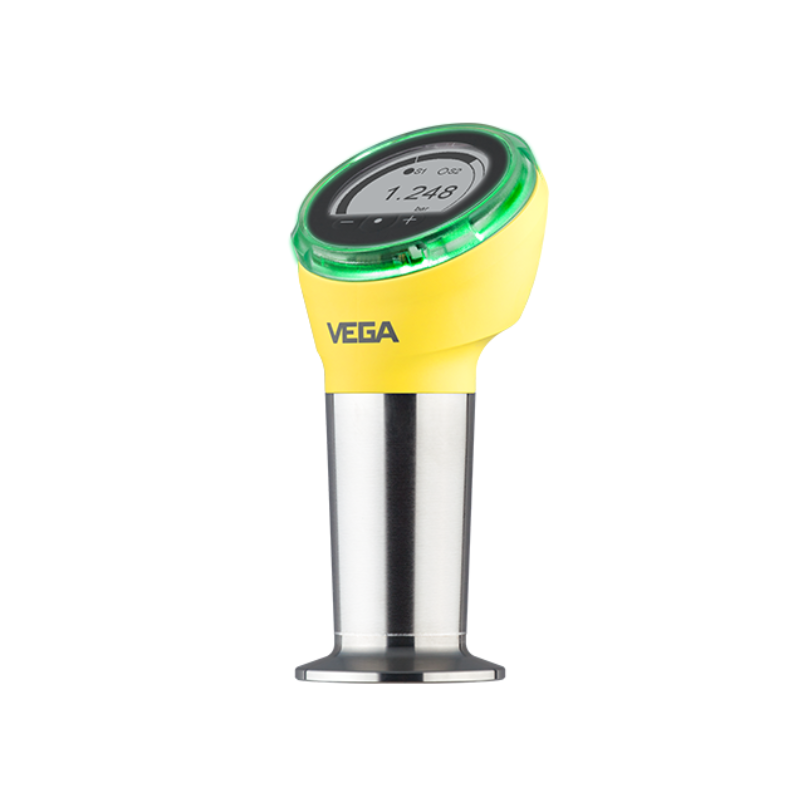

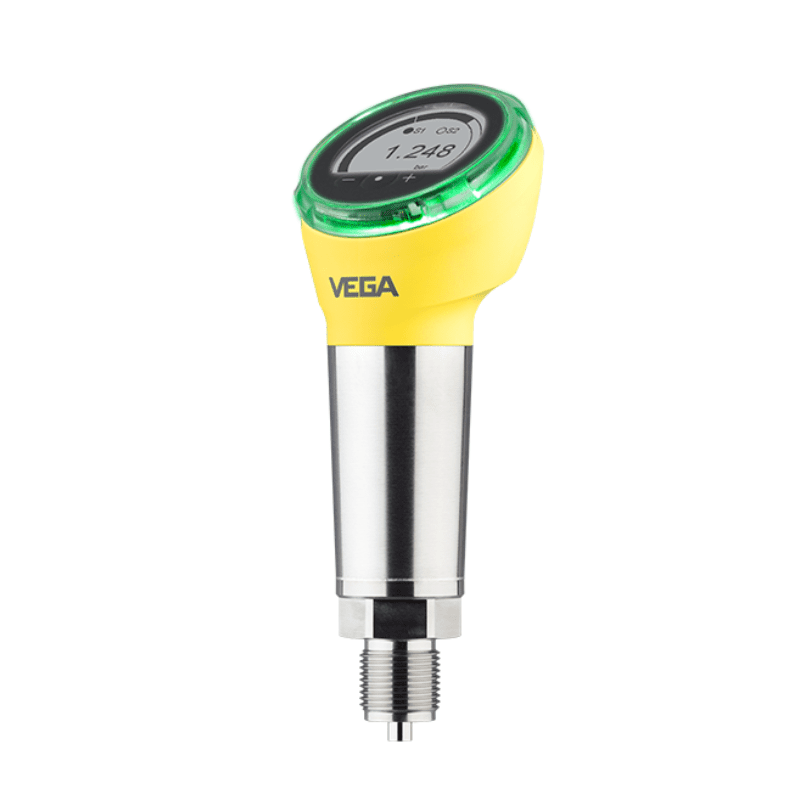

VEGABAR 38 Pressure sensor with switching function
VEGABAR 38 Pressure sensor with switching function
VEGABAR 38 Pressure sensor with switching function

VEGA BAR 38 VEGABAR 38 Pressure sensor with switching function

$435.00

The VEGABAR 28 pressure sensor combines precise hydrostatic measurement with reliable switching functions for comprehensive process monitoring. This versatile instrument provides accurate level and pressure measurement while offering configurable switching outputs for alarm functions. Ideal for tanks, vessels, and liquid storage applications, it ensures dependable performance in water treatment, chemical processing, and industrial automation. With robust construction and easy configuration, the VEGABAR 28 delivers both continuous measurement and discrete switching capabilities in a single device, simplifying installation and reducing costs for various industrial monitoring applications.

VEGABAR 29 Product information



Category: Tags: , Brand:

Application area

From thread ½”, hygienic connections, universal connection G1″ for hygiene adapter, 4 … 20 mA, three-wire: PNP/NPN, 4 … 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display, on-site display and 3-button operation
VEGABAR 38 is a universal pressure transmitter with ceramic measuring cell for measuring gases, vapours and liquids up to 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping. The sensor has a display with on-site operation and coloured 360° status display.

Your benefit

  • High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
  • Coloured 360° status display, display and on-site operation with VDMA menu structure
  • Easy integration into control systems through IO-Link communication
Measuring range - Pressure

-1 … 60 bar [Bar – kPa – psi]
Process temperature

-40 … 130 °C [°C – °F]
Accuracy

0.3 %
Materials, wetted parts

PVDF
316L
Duplex (1.4462)
Ceramic
Threaded connection

≥ G¼, ≥ ¼ NPT
Hygenic fittings

Clamp ≥ 2", DN50 – DIN32676, ISO2852
Clamp ≥ 1" – DIN32676, ISO2852
Clamp ≥ 1½" – DIN32676, ISO2852
Slotted nut ≥ 1½", ≥ DN40 – DIN 11851
Slotted nut ≥ DN25 – DIN 11851
SMS DN38
Hygienic fittings ≥ DN25 – DIN11864-1-A
Hygienic fittings ≥ DN40 – DIN11864-1-A
Varivent N50-40
SMS DN25
Ingold connection PN10
Varivent F25
Protection rating

IP66/IP67
IP65
Output

4 … 20 mA
Three-wire (PNP/NPN, 4 … 20 mA)
IO-Link
Ambient temperature

-40 … 70 °C
Scope

ATEX / Europe
IEC / worldwide
NEPSI / China
UKR Sepro / Ukraine
INMETRO / Brazil
CCOE / India
KTL Korea
TIIS / Japan
IA
c-UL-us
UKEX
Explosion protection

Intrinsic safety "i"
Foodstuffs/Pharma

FDA
Drinking water
EG1935/2004
Ship approval

ABS
BV
CCS
DNV
LR
NK
RINA
Adjustment

Smartphone / Tablet / PC via Bluetooth
PC, PACTware and DTM, IODD
Indication

Graphic-capable clear text indication with background lighting
360° status display
Seal material

EPDM
FKM
FFKM
Housing material

Plastic
