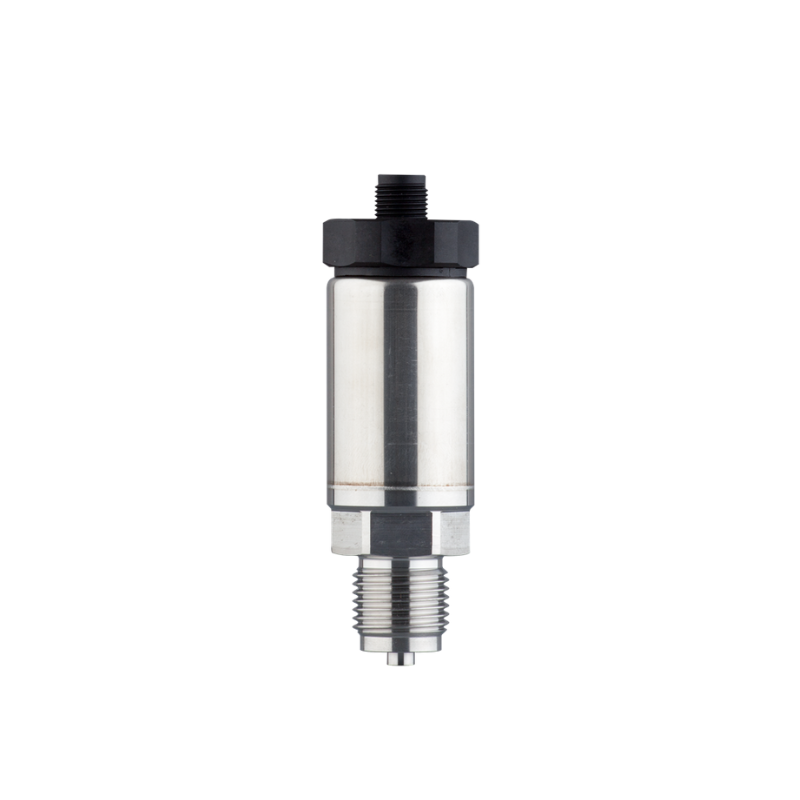

VEGA BAR 19 VEGABAR 19 Pressure transmitter
$250.00
The VEGABAR 19 is a reliable compact pressure transmitter designed for industrial process applications. This high-performance transmitter delivers accurate pressure measurement for liquids and gases across various industrial processes. Featuring a robust construction and compact design, it ensures easy integration into existing systems while maintaining reliable operation in demanding environments. Suitable for chemical processing, water treatment, and industrial automation, the VEGABAR 19 offers excellent long-term stability with minimal maintenance needs. Its precision and durability make it an ideal choice for critical process control applications where consistent performance is paramount.
Application area
Your benefit
- Price-favourable version with small mounting dimensions
- Universally applicable due to fully welded metallic measuring cell
| Measuring range - Pressure | -1 … 60 bar [Bar – kPa – psi] |
|---|---|
| Process temperature | -40 … 130 °C [°C – °F] |
| Accuracy | 0,3 % |
| Materials, wetted parts | PVDF |
| Threaded connection | ≥ G¼, ≥ ¼ NPT |
| Seal material | EPDM |
| Protection rating | IP65 |
| Output | 4 … 20 mA |
| Ambient temperature | -40 … 70 °C |
| Adjustment | Smartphone / Tablet / PC via Bluetooth |
| Indication | 360° status display |
| Hygenic fittings | Clamp ≥ 2", DN50 – DIN32676, ISO2852 |
| Scope | ATEX / Europe |
| Explosion protection | Intrinsic safety "i" |
| Foodstuffs/Pharma | FDA |
| Ship approval | ABS |
