SIEMENS Level Measurement Capacitance point level switches – LCS100 7ML700/701/702/703
Original price was: $1,500.00.$1,350.00Current price is: $1,350.00.

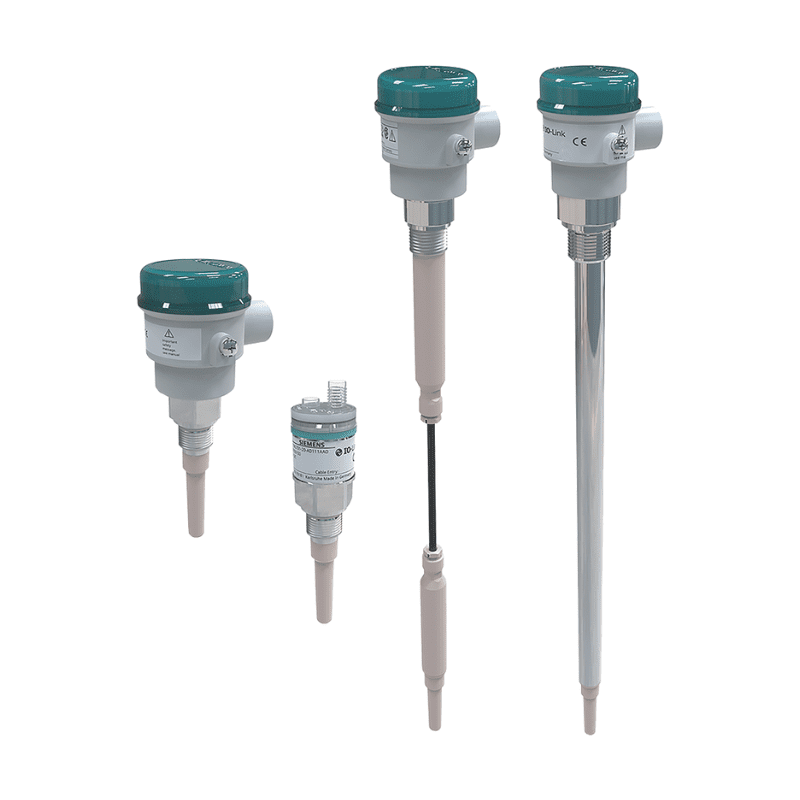

SITRANS LCS100 is a point level switch that detects point level in liquids, solids, slurries, foam, and interface detection. Its compact design is ideal for confined spaces with plastic or stainless steel process connections and flexible rod and cable probe extensions. SITRANS LCS100 is used for overflow, high, low, and demand applications as well as pump protection. It works in all types of vessels, pipes, and silos in a broad range of industries including food, pharmaceuticals, chemical, petrochemical, water, and machine building.
Overview
SITRANS LCS100 7ML700/701/702/703 is a point level switch that detects point level in liquids, solids, slurries, foam, and interface detection. Its compact design is ideal for confined spaces with plastic or stainless steel process connections and flexible rod and cable probe extensions. SITRANS LCS100 is used for overflow, high, low, and demand applications as well as pump protection. It works in all types of vessels, pipes, and silos in a broad range of industries including food, pharmaceuticals, chemical, petrochemical, water, and machine building.
Benefits
- Potted construction provides protection from shock and vibration
- Factory calibrated to work in most applications without tuning
- Active shield and tunable to compensate for build-up
- Optional IO-link communication and remote testing
- Options for plastic or Stainless steel enclosure and M12 connection
Application
SITRANS LCS100’s flexible insertion length, starting at 92 mm (3.6 inch), and its versatility in various applications and in vessels or pipes make it a good fit for most point level applications.
Its advanced design provides accurate, repeatable, switchpoint performance. The PPS (Polyphenylene sulfide) probe [optional PVDF (Polyvinylidene Fluoride)] and optional peek are chemically resistant with an effective process operating temperature range from ‑40 to +125 °C (‑40 to +257 °F). The fully potted design ensures reliability in a vibrating environment such as agitated tanks. When used with a SensGuard protection cover, the LCS100 is protected from shearing, impact, and abrasion in tough primary processes.

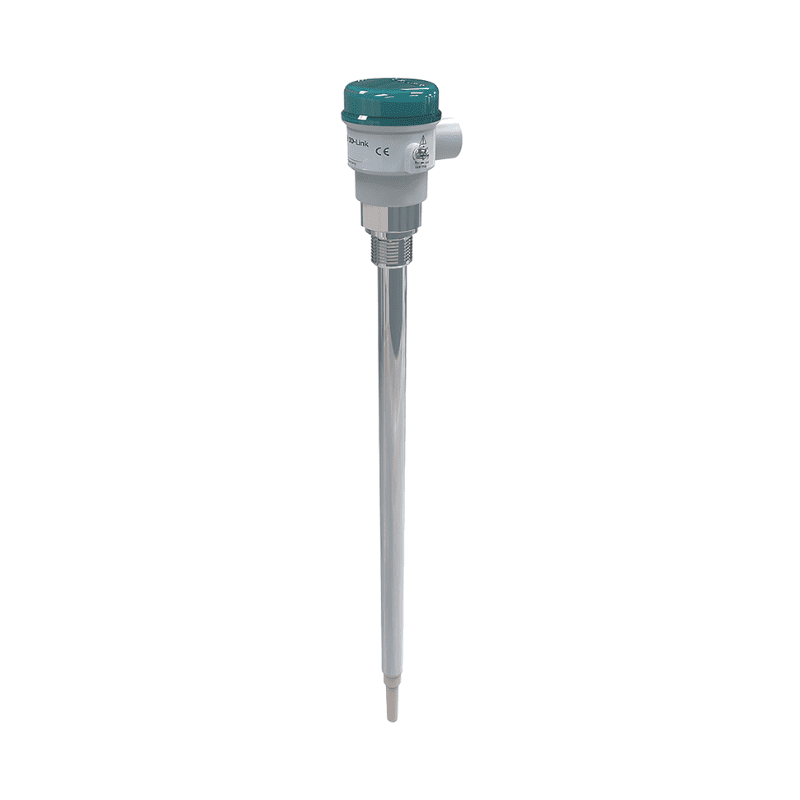

The SITRANS LCS100 is available with either a stainless steel enclosure or a polyester enclosure and stainless steel or PPS process connection options.
- Key Applications: liquids, slurries, powders, granules, food and pharmaceuticals, chemicals, hazardous areas
| Measuring principle | Capacitive level detection |
|---|---|
| Input | Measured variable:Change in picoFarad (pF) |
| Output | Alarm output:8/16 mA or 4 … 20 mA , 2-wire loop or IO-Link, PNP, NPN |
| Repeatability Accuracy | 2 mm (0.08 inch) |
| Ambient temperature | ‑40 … +85 °C (‑40 … +185 °F) |
| Process temperature | ‑40 … +125 °C (‑40 … +257 °F) |
| Degree of protection | Type 4X/IP68 |
| Cable inlet | ½" NPT or M20 x 1.5 |
| Body Material | Thermoplastic polyester |
| probe/wetted parts | Connection: 316L stainless steel or PPS; |
| Process connection | Thread: G ½", G ¾", G 1“, NPT ¾" Tri-clamp DN25 (1"), DN40 (1 1/2"), DN50 (2") DIN 32676 Type A (DIN 11851) and DIN 32676 Type C (ASME BPE 2009) Flange (screwed) DN 25, 40, 50; ASME 1", 1 ½”, 2" |
| Power supply | Standard: |
| Certificates and approvals | General purpose: CE, UKCA, FM, CSA |
