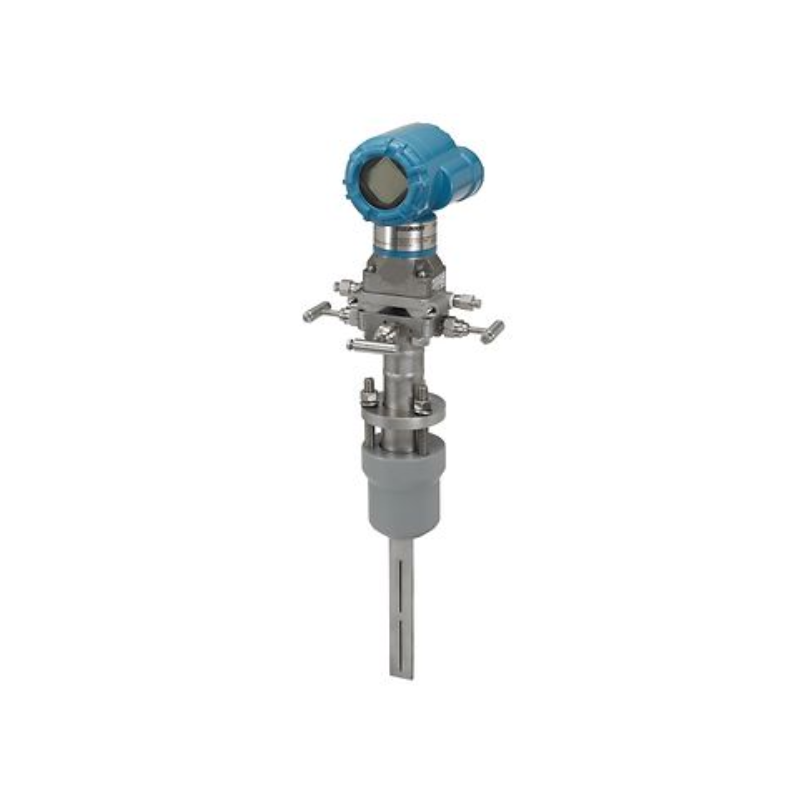

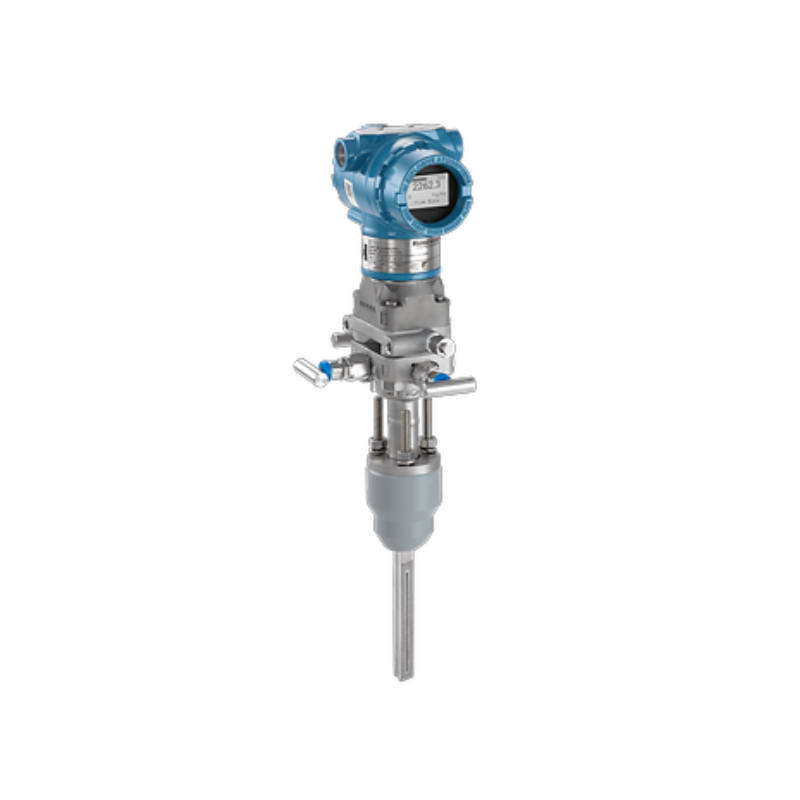

Rosemount™ 3051CFA Annubar™ Flow Meter
$400.00
The Rosemount 3051CFA Annubar Flow Meter integrates Annubar averaging pitot technology with a differential pressure transmitter for accurate and efficient flow measurement. This innovative design features low permanent pressure loss, significantly reducing energy consumption in pumping and compression systems. The compact configuration eliminates impulse piping while providing reliable flow data for liquids, gases, and steam. With easy installation and minimal maintenance requirements, the 3051CFA is ideal for various industrial applications where energy efficiency and measurement reliability are paramount. Its robust construction ensures long-term performance in demanding process conditions.
Featuring industry-standard performance, the Rosemount 3051CFA Annubar Flow Meter provides dependable flow measurements via mulitple communication protocols including WirelessHART® technology. This patented sensor design maintains a small profile in the pipe for reduced permanent pressure loss and is capable of flow and pressure measurements via a single pipe penetration. Available with a graphical, back-lit display, Bluetooth® connectivity, Flow specific configuration and enhanced software capabilities designed to access data quickly.
| Warranty | Up to 5-year limited warranty |
|---|---|
| Rangedown | Up to 150:1 (8:1 flow turndown) |
| Communication Protocol | 4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART® |
| Line Size | 2 to 96 in. (50 to 2440 mm) |
| Process Wetted Material | 316L SST, Alloy C-276 |
| Diagnostics | Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE® |
| Wireless Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Internal antenna (225 m) |
