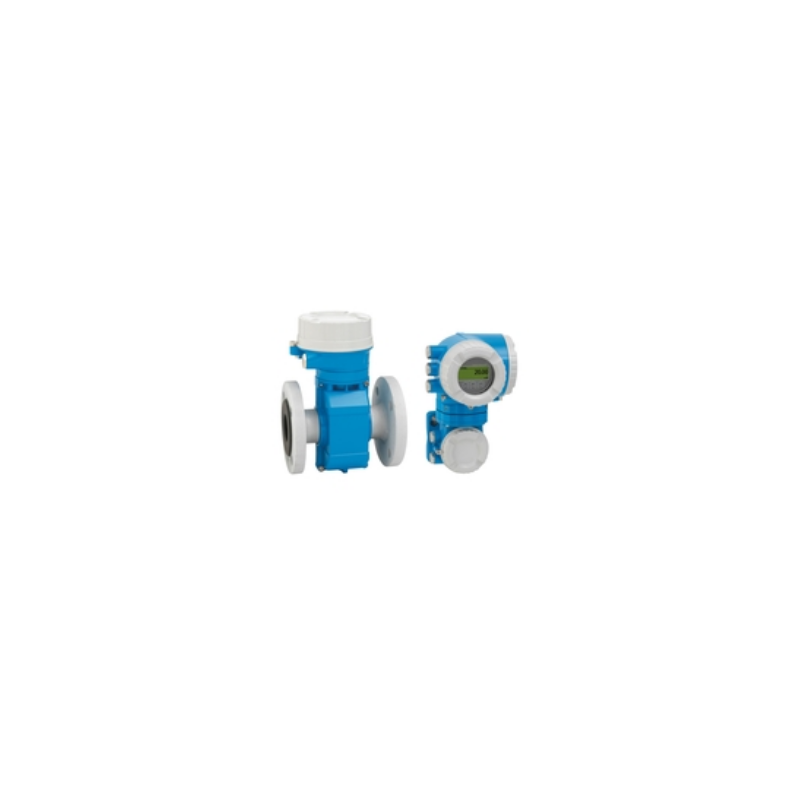

E+H Proline Promag W 500 5W5B electromagnetic flowmeter
$2,000.00
The Proline Promag W 500 (5W5B) Electromagnetic Flowmeter provides high-accuracy flow measurement for water and wastewater applications. It uses electromagnetic measurement technology, ensuring stable performance without pressure loss.

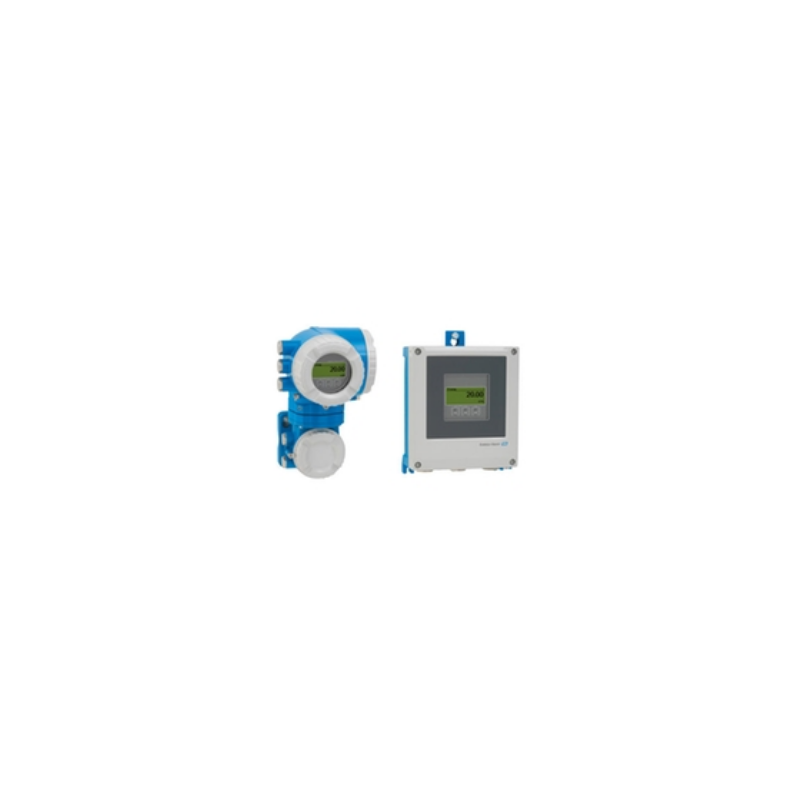

This model features a remote transmitter design, which allows flexible installation in harsh environments. In addition, it supports advanced diagnostics and reliable communication, making it suitable for industrial plants and municipal water systems.
Not Recommended For:
• Non-conductive liquids (e.g., oils, gases)
• Very low conductivity media
Selection Notes
• Measurement Principle: Uses electromagnetic flow measurement, which requires conductive liquids such as water or wastewater.
• Installation Type: Features a remote-mounted transmitter, ideal for environments with vibration, flooding, or limited access.
• Application Type: Designed for municipal water supply, wastewater treatment, and industrial water systems.
• Process Conditions: Verify temperature, pressure, and lining material compatibility for your application.
• Output and Communication: Supports 4–20 mA, pulse, HART, and digital communication options for system integration.
Why Choose the Proline Promag W 500
• Accurate Electromagnetic Measurement
The device uses Faraday’s law to measure flow accurately. Therefore, results remain stable regardless of pressure, temperature, or density changes.
• Remote Transmitter for Flexible Installation
The remote design separates the sensor and transmitter. As a result, it allows installation in harsh or hard-to-access environments.
• No Pressure Loss
The sensor has no internal obstruction, so it does not create pressure drop. This improves system efficiency and reduces energy costs.
• Advanced Diagnostics
Built-in diagnostics help monitor device status and detect issues early. In addition, this improves system reliability and reduces downtime.
• Designed for Water Industry
It is optimized for water and wastewater applications, including pipelines with solids and varying flow conditions.
FAQ
Q: What is the advantage of the Promag W 500?
A: Its remote transmitter design allows flexible installation in difficult environments, improving system reliability.
Q: Can it measure wastewater with solids?
A: Yes. It is designed for water and wastewater applications, including fluids with suspended solids.
Q: Does it require a power supply?
A: Yes. It operates with a standard external power supply for continuous measurement.
Q: Does it cause pressure loss?
A: No. The electromagnetic principle ensures no obstruction and no pressure drop.
| Nominal diameter range | DN 25 to 3000(1 to 120") |
|---|---|
| Wetted materials | Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) |
| Measured variables | Volume flow, conductivity, mass flow |
| Max. measurement error | Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) |
| Measuring range | 0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d) |
| Max. process pressure | PN 40, Class 300, 20K |
| Medium temperature range | Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) |
| Ambient temperature range | Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) |
| Sensor housing material | DN 25 to 300 (1 to 12"): AlSi10Mg, coated |
| Transmitter housing material | AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat |
| Degree of protection | Compact version: IP66/67, type 4X enclosure |
| Display/Operation | 4-line backlit display with touch control (operation from outside) |
| Outputs | 4 outputs: |
| Inputs | Status input |
| Digital communication | HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA |
| Power supply | DC 24 V |
| Hazardous area approvals | ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC |
| Product safety | CE, C-tick, EAC marking |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR |
| Marine approvals and certificates | LR approval, DNV approval, ABS approval, BV approval |
| Pressure approvals and certificates | CRN |
| Material certificates | 3.1 material |
| Hygienic approvals and certificates | ACS, KTW-BWGL, NSF 61, WRAS BS 6920 |
