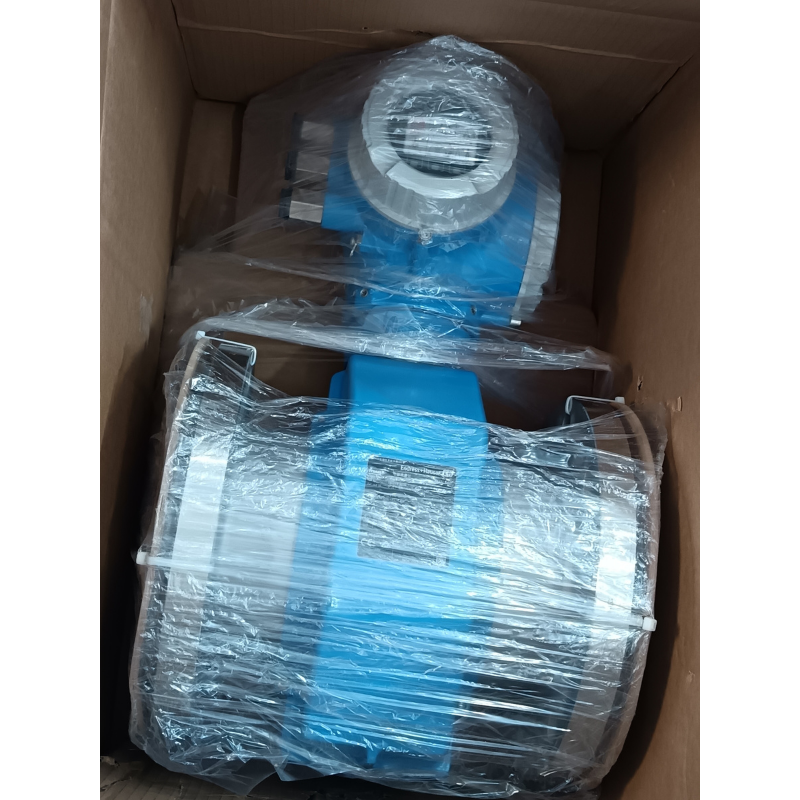

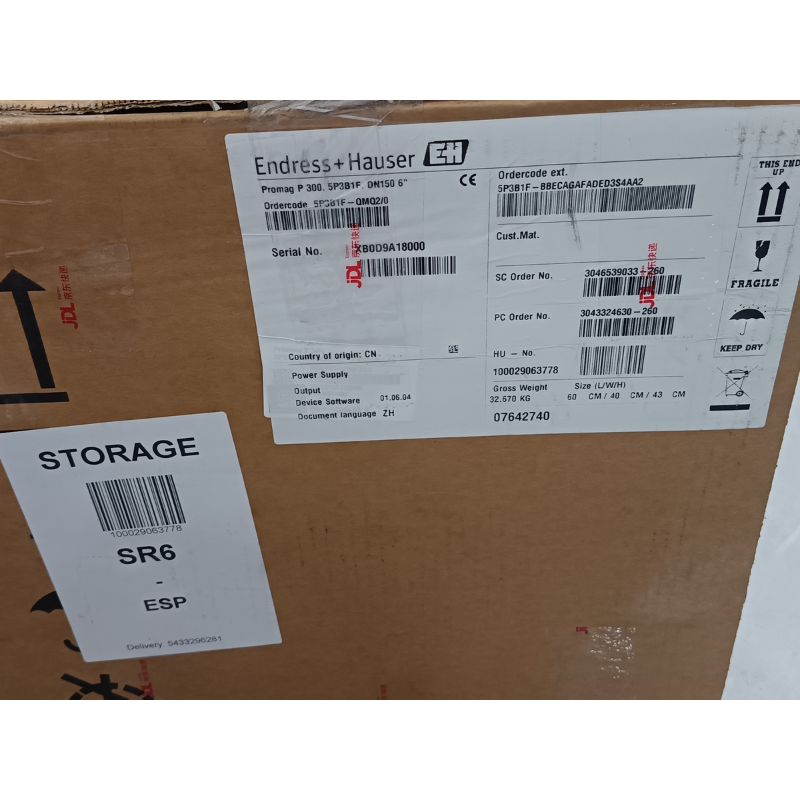

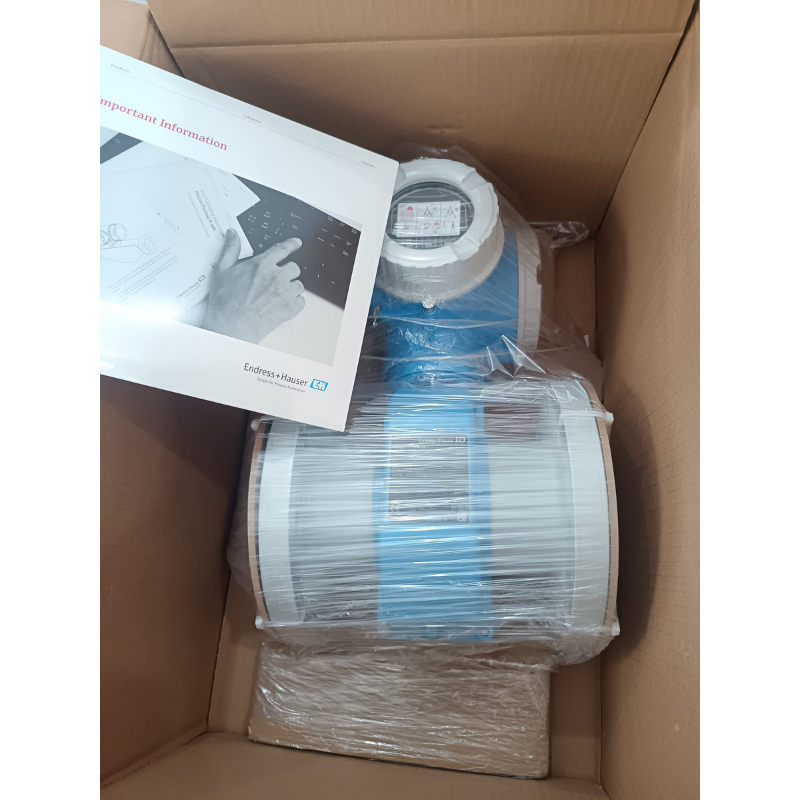

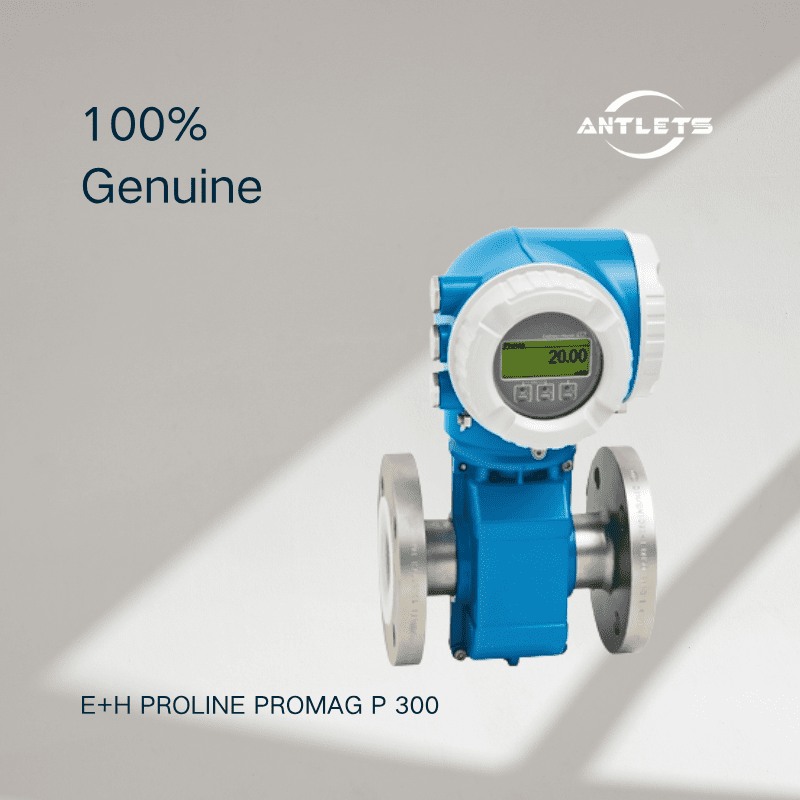

E+H Proline Promag P 300 5P3B electromagnetic flowmeter
$800.00
The Endress+Hauser Proline Promag P 300 (5P3B) is a high-performance electromagnetic flowmeter designed for demanding process applications with corrosive liquids and high temperatures. It delivers stable and accurate flow measurement using proven electromagnetic technology.
This flowmeter features a compact transmitter with advanced diagnostics such as Heartbeat Technology, enabling reliable operation and easy maintenance. In addition, it supports flexible communication interfaces for seamless integration into automation systems.
Typical applications include chemical processing, petrochemical industries and high-temperature liquid handling systems.
Not Recommended For:
• Non-conductive liquids (e.g., oils, gases)
• Simple flow indication without signal output
Selection Notes
• Confirm that the medium is electrically conductive, as electromagnetic flowmeters require conductivity.
• Verify the required flow range, typically from 4 dm³/min up to 9600 m³/h.
• Choose suitable liner material such as PFA or PTFE based on chemical compatibility.
• Check the process temperature, which can reach up to 180 °C depending on configuration.
• In addition, ensure the pressure rating (up to PN40 / Class 300) meets system requirements.
Selection Notes
• Confirm that the medium is electrically conductive, as electromagnetic flowmeters require conductivity.
• Verify the required flow range, typically from 4 dm³/min up to 9600 m³/h.
• Choose suitable liner material such as PFA or PTFE based on chemical compatibility.
• Check the process temperature, which can reach up to 180 °C depending on configuration.
• In addition, ensure the pressure rating (up to PN40 / Class 300) meets system requirements.
FAQ
Q: What type of media can Promag P 300 measure?
A: It measures conductive liquids, including acids, alkalis and process chemicals.
Q: What is the measurement principle?
A: It uses electromagnetic induction based on Faraday’s law to calculate flow velocity and volume.
Q: What is the maximum temperature it can handle?
A: Depending on the liner, it supports up to 180 °C for high-temperature applications.
Q: What communication options are available?
A: The device supports multiple outputs, including 4–20 mA, HART and digital communication protocols.
| Nominal diameter range | DN 15 to 600 (½ to 24") |
|---|---|
| Wetted materials | Liner: PFA; PTFE |
| Measured variables | Volume flow, conductivity, mass flow |
| Max. measurement error | Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s) |
| Measuring range | 4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min) |
| Max. process pressure | PN 40, Class 300, 20K |
| Medium temperature range | Liner material PFA: –20 to +150 °C (–4 to +302 °F) |
| Ambient temperature range | Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) |
| Sensor housing material | DN 15 to 300 (½ to 12""): AlSi10Mg, coated |
| Transmitter housing material | AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design |
| Degree of protection | Standard: IP66/67, Type 4X enclosure |
| Display/Operation | 4-line backlit display with touch control (operation from outside) |
| Outputs | 3 outputs: |
| Inputs | Status input |
| Digital communication | HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA |
| Power supply | DC 24 V |
| Hazardous area approvals | ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC |
| Product safety | CE, C-tick, EAC marking |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Marine approvals and certificates | LR approval, DNV approval, ABS approval, BV approval |
| Pressure approvals and certificates | PED, CRN |
| Material certificates | 3.1 material |
| Hygienic approvals and certificates | ACS, NSF 61, WRAS |
