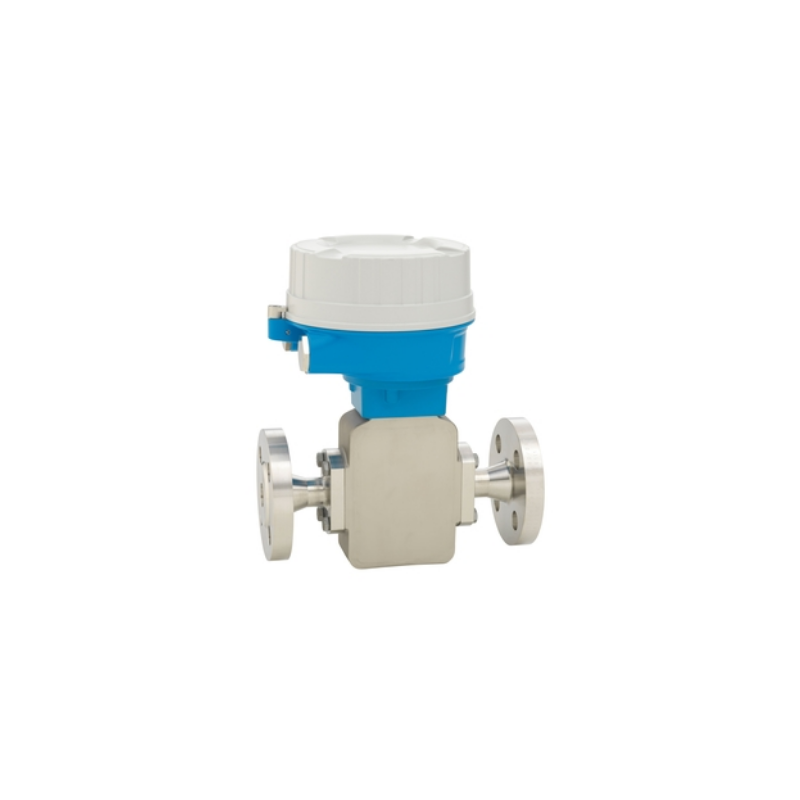

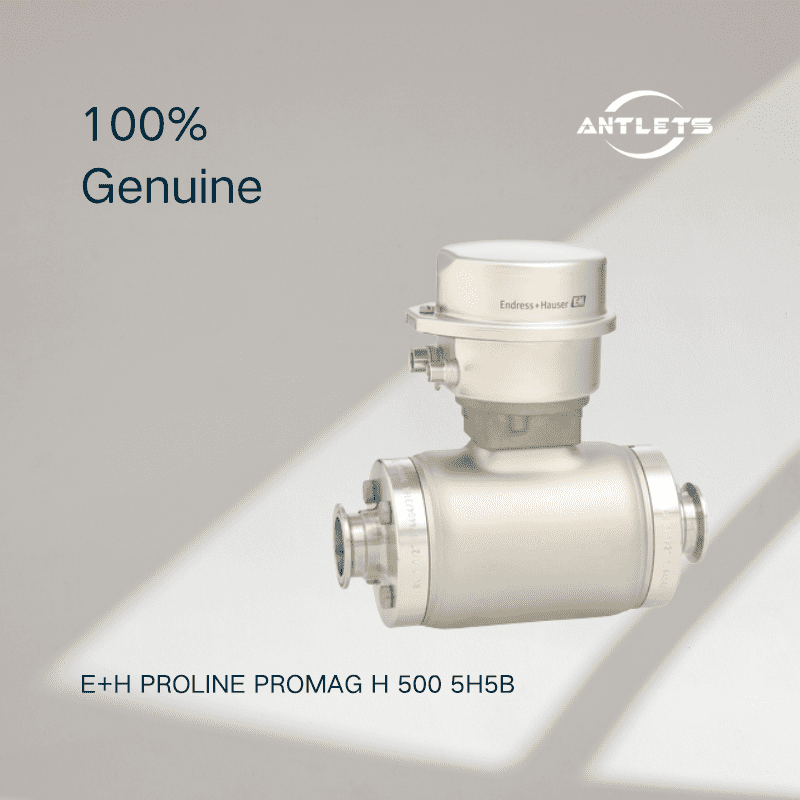

E+H Proline Promag H 500 5H5B electromagnetic flowmeter
$4,000.00
The Endress+Hauser Proline Promag H 500 5H5B Electromagnetic Flowmeter is a high-end hygienic flow measurement solution designed for Food & Beverage and Life Sciences industries. It is optimized for demanding sanitary applications where high accuracy, process safety, and advanced diagnostics are required.
Based on the electromagnetic measuring principle, it provides bidirectional flow measurement of conductive liquids, fully independent of pressure, density, temperature, and viscosity. This ensures stable and reliable performance even in variable process conditions.
The remote transmitter design maximizes installation flexibility and operational safety, making it suitable for complex plant layouts and hygienic environments.
Typical applications include dosing, filling, batching, CIP/SIP processes, and hygienic liquid transport systems.
Not Recommended For:
• Non-conductive liquids such as oils or hydrocarbons
• Media with heavy solid content or strong abrasive particles
Selection Notes
• Confirm the fluid is electrically conductive, required for electromagnetic measurement
• Select appropriate nominal diameter (DN 2 to 150) based on pipeline size
• Define required communication system, such as HART, PROFIBUS, PROFINET, Modbus, Ethernet/IP or OPC-UA
• Choose I/O configuration, as device supports freely configurable multifunction I/Os
• Ensure hygienic requirements, including EHEDG, 3-A, CIP/SIP compatibility
• Consider whether Heartbeat Technology verification is required for compliance and diagnostics
Why Choose the Promag H 500 5H5B
• High-Precision Hygienic Flow Measurement
The electromagnetic principle provides accurate flow measurement for conductive liquids. Therefore, results are stable and independent of physical fluid properties.
• Advanced Remote Transmitter Design
The separated transmitter improves installation flexibility and increases operational safety in hygienic and demanding environments.
• Multivariable Measurement Capability
It measures flow, temperature, conductivity, mass flow, and corrected values. As a result, fewer instruments are required in the process line.
• Heartbeat Technology for Built-in Verification
Integrated diagnostics and verification ensure continuous compliance and process transparency without interrupting production.
• Flexible Communication and Integration
Supports multiple industrial protocols, enabling seamless integration into modern automation systems and digital plants.
• Hygienic and Maintenance-Free Design
With no moving parts and CIP/SIP-compatible materials, the system ensures long-term reliability and minimal maintenance.
• Optimized for Food & Life Sciences Applications
Designed specifically for hygienic processes with strict regulatory requirements, ensuring safety and product quality.
FAQ
Q: What is the Promag H 500 used for?
A: It is used for hygienic flow measurement of conductive liquids in food, beverage, and life sciences industries.
Q: What makes Promag H 500 different from basic flowmeters?
A: It offers advanced diagnostics, multivariable measurement, and Heartbeat Technology verification, making it suitable for critical processes.
Q: Can it measure non-conductive liquids?
A: No. Electromagnetic flowmeters require electrically conductive fluids.
Q: Is it suitable for hygienic applications?
A: Yes. It is fully compliant with EHEDG, 3-A, and CIP/SIP cleaning standards.
| Nominal diameter range | DN 2 to 150 (¹⁄₁₂ to 6") |
|---|---|
| Wetted materials | Liner: PFA |
| Measured variables | Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected conductivity |
| Max. measurement error | Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s) |
| Measuring range | 0.06 dm³/min to 600 m³/h (0.015 gal/min to 2 650 gal/min) |
| Max. process pressure | PN 40, Class 150, 20K |
| Medium temperature range | –20 to +150 °C (–4 to +302 °F) |
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
| Sensor housing material | 1.4301 (304), corrosion resistant |
| Transmitter housing material | AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat |
| Degree of protection | Sensor remote version (standard): IP66/67, type 4X enclosure |
| Display/Operation | 4-line backlit display with touch control (operation from outside) |
| Outputs | 4 outputs: |
| Inputs | Status input |
| Digital communication | HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA |
| Power supply | DC 24 V |
| Hazardous area approvals | ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC |
| Product safety | CE, C-tick, EAC marking |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Marine approvals and certificates | LR approval, DNV approval, ABS approval, BV approval |
| Pressure approvals and certificates | PED, CRN |
| Material certificates | 3.1 material |
| Hygienic approvals and certificates | EHEDG, 3-A, liner and seals acc. to FDA, cGMP |
