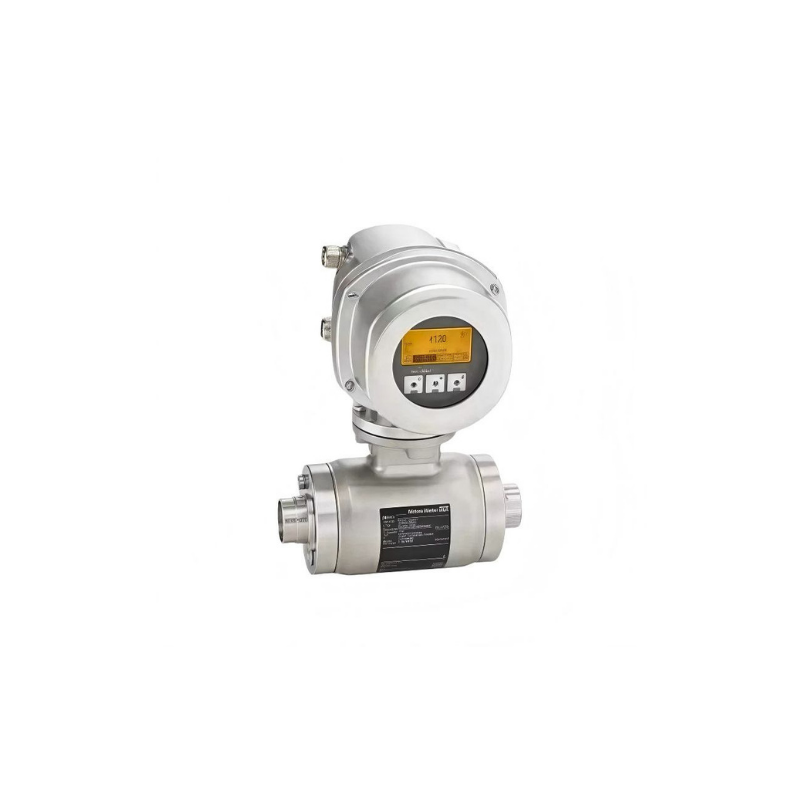

E+H Proline Promag H 200 5H2B electromagnetic flowmeter
$900.00
The Endress+Hauser Proline Promag H 200 5H2B Electromagnetic Flowmeter is designed for high-precision measurement of small flow rates in chemical and life sciences industries. It features genuine loop-powered technology, enabling cost-effective integration without the need for additional power supply.
Using the electromagnetic measuring principle, it provides accurate bidirectional flow measurement of conductive liquids, independent of pressure, temperature, density, and viscosity. This ensures stable performance even in demanding process conditions.
The intrinsically safe design makes it suitable for hazardous areas, while Heartbeat Technology ensures continuous process reliability and verification.
Typical applications include dosing, small-volume measurement, pharmaceutical processes, and chemical injection systems.
Not Recommended For:
• Non-conductive liquids such as oils or hydrocarbons
• Applications with large solids or strong abrasion
Selection Notes
• Confirm the fluid is electrically conductive, required for electromagnetic measurement
• Verify small flow rate range, especially for dosing or micro-flow applications (down to very low flow rates)
• Select appropriate nominal diameter (DN 2–25) for small pipelines
• Choose required communication protocol, such as HART, PROFIBUS PA, or FOUNDATION Fieldbus
• Ensure hazardous area requirements (Ex ia) if installed in explosive environments
• Confirm hygienic or chemical compatibility, including PFA liner and electrode materials
Why Choose the Promag H 200 5H2B
• Optimized for Small Flow Measurement
Designed specifically for very low flow rates, making it ideal for dosing and precise liquid control applications.
• Loop-Powered Technology (2-Wire)
Operates without additional power supply. Therefore, installation is simpler and more cost-efficient.
• Intrinsic Safety for Hazardous Areas
Certified for Ex ia environments, ensuring safe operation in chemical and explosive atmospheres.
• High Measurement Accuracy
Achieves up to ±0.5% accuracy, ensuring reliable process control even at low flow rates.
• Heartbeat Technology for Process Verification
Enables continuous diagnostics and verification without interrupting the process.
• Hygienic and Corrosion-Resistant Design
Features PFA liner and stainless steel housing, suitable for aggressive chemicals and hygienic processes.
• Maintenance-Free Operation
No moving parts and no pressure loss. Consequently, operating costs are minimized.
FAQ
Q: What is Promag H 200 mainly used for?
A: It is designed for small flow rate measurement, especially in chemical dosing and pharmaceutical applications.
Q: What makes it different from Promag H 300 or 500?
A: Promag H 200 focuses on loop-powered, compact, and hazardous-area applications, while higher models provide more advanced communication and diagnostics.
Q: Can it be used in hazardous areas?
A: Yes. It supports intrinsically safe (Ex ia) installations, making it suitable for explosive environments.
Q: What liquids can it measure?
A: It measures electrically conductive liquids, including chemicals, acids, and pharmaceutical fluids.
| Nominal diameter range | DN 2 to 25 (¹⁄₁₂ to 1") |
|---|---|
| Wetted materials | Liner: PFA |
| Measured variables | Volume flow, mass flow |
| Max. measurement error | Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s) |
| Measuring range | 0.06 dm³/min to 300 m³/h (0.015 to 80 gal/min) |
| Max. process pressure | PN 40, Class 150, 20K |
| Medium temperature range | –20 to +150 °C (–4 to +302 °F) |
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
| Sensor housing material | 1.4301 (304), corrosion resistant |
| Transmitter housing material | AlSi10Mg, coated |
| Degree of protection | IP66/67, type 4X enclosure |
| Display/Operation | 4‐line backlit display with touch control (operation from outside) |
| Outputs | 4‐20 mA HART (passive) |
| Digital communication | HART, PROFIBUS PA, FOUNDATION Fieldbus |
| Power supply | DC 18 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output) |
| Hazardous area approvals | ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC, JPN, UK Ex |
| Product safety | CE, C-Tick |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Pressure approvals and certificates | CRN |
| Material certificates | 3.1 material |
