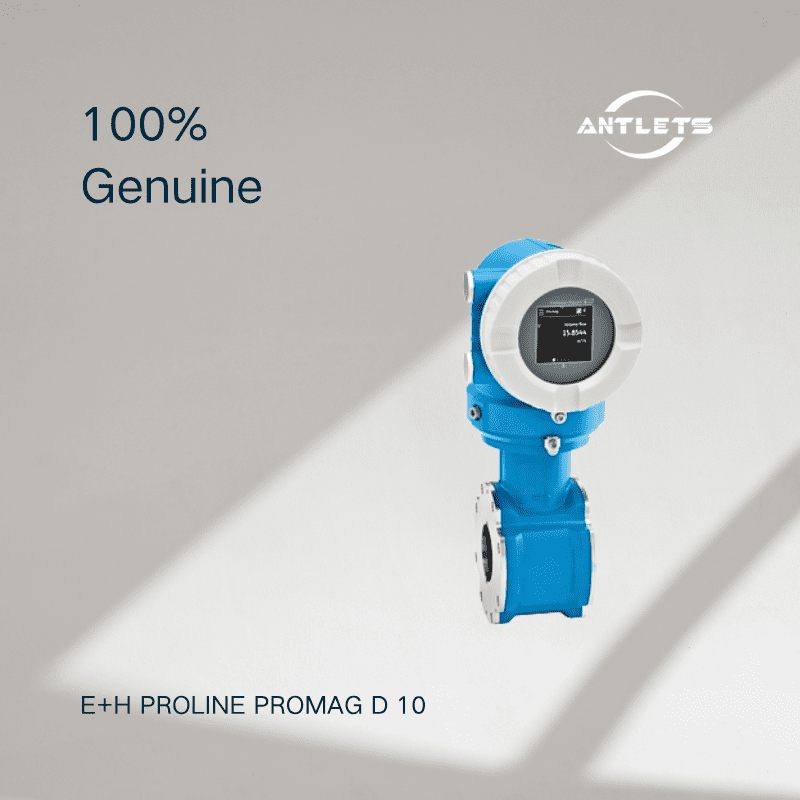

E+H Proline Promag D 10 5DBB electromagnetic flowmeter
$1,100.00
The Endress+Hauser Proline Promag D 10 (5DBB) is a compact and cost-effective electromagnetic flowmeter designed for basic water and wastewater applications. It uses a wafer-type design, which reduces installation space and simplifies mounting in pipelines.
This flowmeter delivers reliable measurement for conductive liquids while maintaining low maintenance requirements. In addition, it integrates modern features such as Heartbeat Technology and mobile operation for easy commissioning and diagnostics.
Typical applications include water distribution, irrigation systems and utility processes.
Not Recommended For:
• Non-conductive media such as oil or gas
• High-temperature or highly corrosive process environments
Selection Notes
• Confirm that the liquid is electrically conductive, which is required for electromagnetic measurement.
• Verify the flow range, typically from 9 dm³/min to 282 m³/h.
• Check the process temperature, limited to around 0 to 60 °C with polyamide liner.
• Ensure the pressure rating (PN16 / Class 150) matches your pipeline system.
• In addition, confirm the pipe size compatibility, typically DN25 to DN100 (1″–4″).
Why Choose the Promag D 10
• Cost-Effective Flow Measurement
This model is designed for basic applications. Therefore, it provides reliable performance at a lower investment cost.
• Compact Wafer Design
The wafer structure reduces installation length and weight. As a result, it fits easily into tight piping systems.
• Stable Measurement Performance
The electromagnetic principle is independent of density, pressure and viscosity. Consequently, readings remain stable under varying conditions.
• Maintenance-Free Operation
Because there are no moving parts, wear is minimal. This design helps reduce downtime and service costs.
• Heartbeat Technology Diagnostics
Integrated diagnostics continuously monitor device health. In addition, verification can be performed without process interruption.
• Flexible Communication Options
The device supports 4–20 mA/HART and Modbus RS485. Therefore, integration with PLC or SCADA systems is straightforward.
FAQ
Q: What type of applications is Promag D 10 best suited for?
A: It is ideal for basic water and wastewater applications, especially where space is limited.
Q: What is the measurement accuracy?
A: The standard accuracy is approximately ±0.5% of reading ±1 mm/s.
Q: What outputs are available?
A: It supports 4–20 mA with HART, pulse outputs and Modbus RS485 communication.
Q: Does it require maintenance?
A: No. The sensor has no moving parts, which significantly reduces maintenance needs.
| Nominal diameter range | DN 25 to 100 (1 to 4") |
|---|---|
| Wetted materials | Liner material polyamide: 0 to +60°C (+32 to +140°F) |
| Measured variables | Volume flow, mass flow |
| Max. measurement error | Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) |
| Measuring range | 9 dm³/min to 282 m³/h (2.5 gal/min to 1250 gal/min) |
| Max. process pressure | PN 16, Class 150, 10K |
| Medium temperature range | Liner material polyamide: 0 to +60°C (+32 to +140°F) |
| Ambient temperature range | -40 to 60°C (-40 to 140°F) |
| Sensor housing material | DN 25 to 100 (1 to 12"): AlSi10Mg, coated |
| Transmitter housing material | Polycarbonat; AlSi10Mg, coated |
| Degree of protection | Compact version: IP66/67, type 4X enclosure |
| Display/Operation | LCD display with touch & auto rotate |
| Outputs | 4-20 mA HART (active/passive), Pulse/frequency/switch output |
| Digital communication | HART, MODBUS RS485 |
| Power supply | DC 24 V |
| Hazardous area approvals | CSA, GP |
| Product safety | Product safety |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Hygienic approvals and certificates | Hygienic approvals and certificates |
