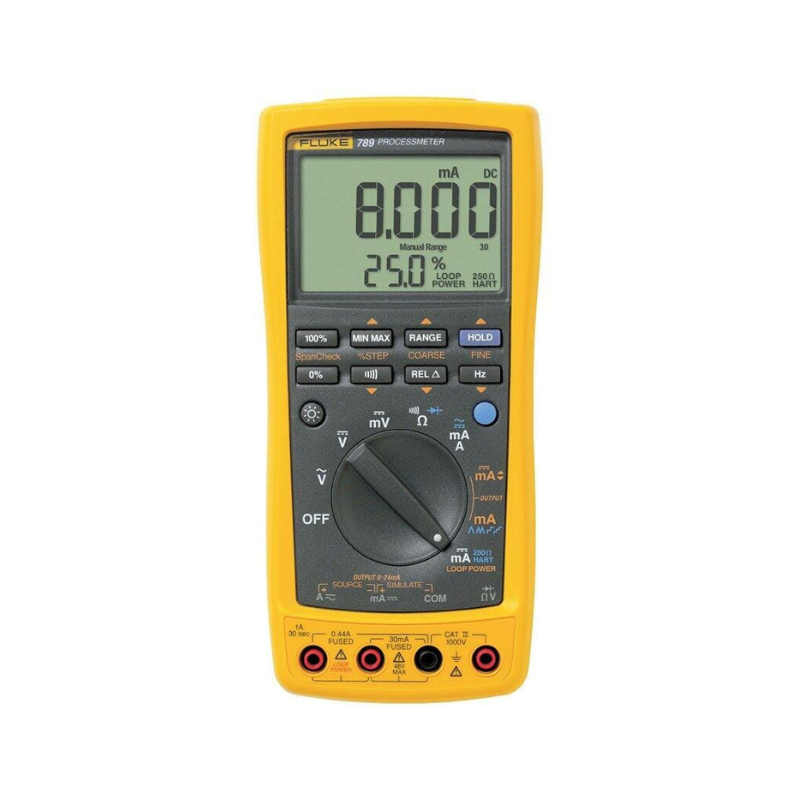

Fluke 789 ProcessMeter™
$600.00
Typical Applications:
• Field calibration and troubleshooting of process transmitters
• Measurement and simulation of current (mA), voltage, resistance, and frequency
• Loop testing and validation for control systems
• Maintenance and commissioning work in industrial plants
Not Recommended For:
• Permanent installation or continuous process monitoring
• Dedicated bench-top calibration systems requiring ultra-high precision
• Applications requiring specialized single-function calibrators
The Fluke 789 ProcessMeter is a versatile loop calibrator and digital multimeter designed for process technicians and electricians. It combines precision mA loop sourcing, simulation, and measurement with full DMM functions, including voltage, resistance, frequency, and continuity testing.
Fluke 787B and 789 ProcessMeter™ | Data Sheet
Selection Notes
• Confirm that a multifunction process calibrator suits your field test requirements
• Suitable for measurement, simulation, and calibration of common process signals
• Ideal for troubleshooting, validating transmitters and control loops
• Supports loop power where applicable for comprehensive testing
• Regular verification ensures long-term accuracy
Why Choose the Fluke 789 ProcessMeter™
• Combines measurement, simulation, and calibration in one portable device
• Measures and sources current, voltage, resistance, and frequency
• Includes loop power for transmitter test and calibration
• Designed for field troubleshooting, commissioning, and maintenance
Key features
- Compact digital multimeter and mA loop calibrator solution
- Full-featured mA loop calibrator with built-in 24v Loop Power
- Quickly and easily troubleshoot every part of a control loop
- Large, bright dual-measurement display
FAQ
Q: What functions does the Fluke 789 support?
A: It supports sourcing, simulating, and measuring current (mA), voltage, resistance, and frequency signals.
Q: Can the Fluke 789 supply loop power?
A: Yes. It includes loop power functionality for comprehensive transmitter testing.
Q: Is the 789 suitable for field troubleshooting?
A: Yes. It is designed for portable field use in process environments.
Q: Can you help confirm if this device fits my calibration and testing needs?
A: Yes. Our engineers can review your signal and calibration requirements and recommend the right solution.
| Electrical safety | Designed in accordance with IEC 61010-1: Pollution Degree 2 |
|---|---|
| Overvoltage category | IEC 61010-2-033: CAT IV 600 V / CAT III 1000 V |
| Maximum voltage | 1,000 V |
| Size (H x W x L) | 50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in) |
| Weight | 610 g (1.6 lbs) |
| Batteries | 4 AA alkaline batteries |
| Battery life | 140 hours typical (measurement), 10 hours typical (sourcing 20 mA) |
| Shock and vibration | Random, 2 g, 5-500 Hz |
