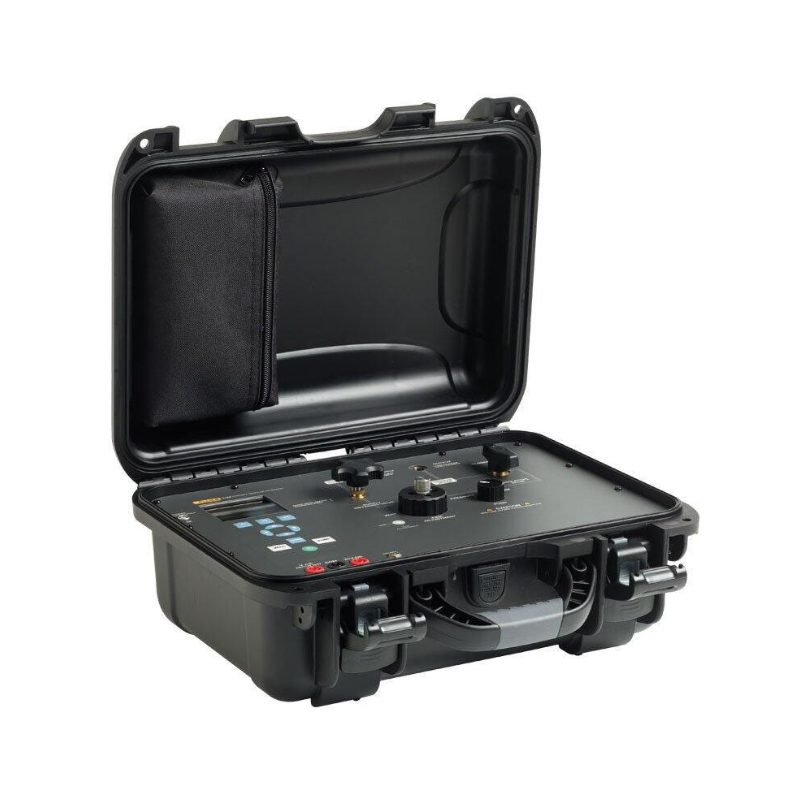

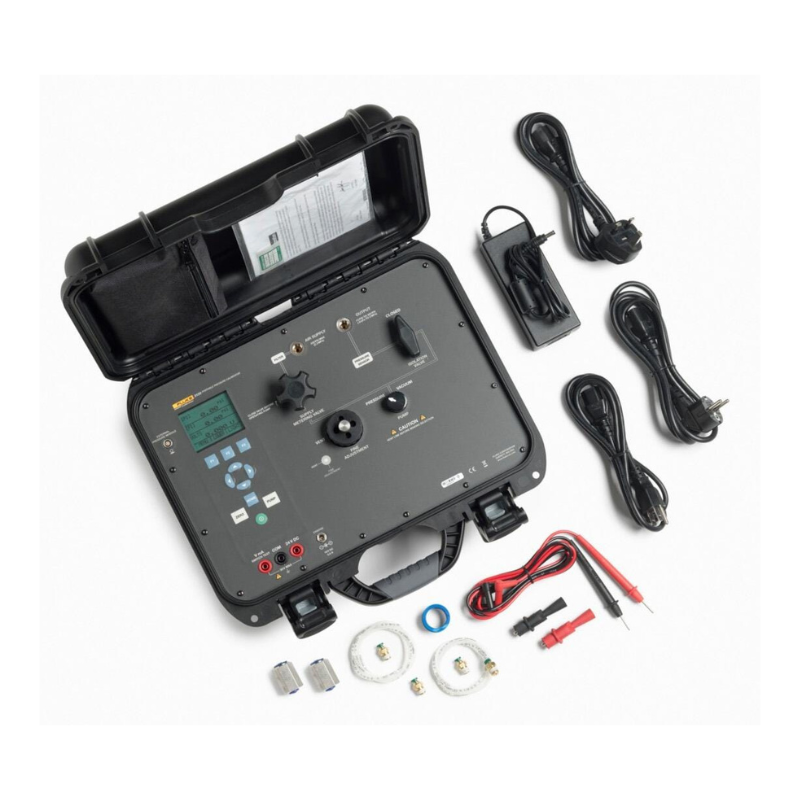

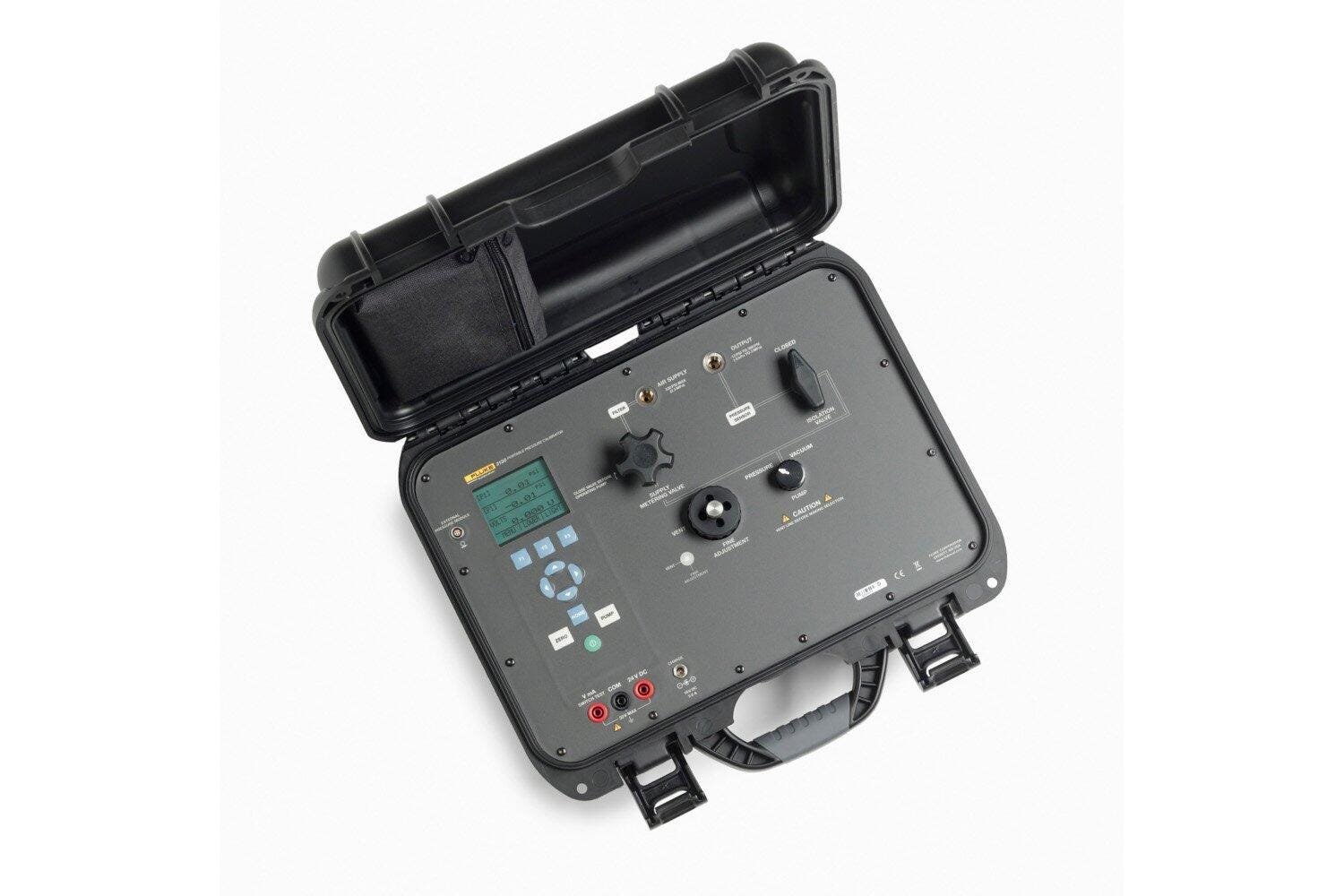

Fluke 3130-G2M Portable Pressure Calibrator
$7,800.00
Typical Applications:
• On-site calibration and testing of high-pressure instruments
• Pressure gauge, transmitter, and switch verification
• Maintenance and commissioning work in industrial plants
• Applications requiring portable and reliable pressure generation
Not Recommended For:
• Permanent installation or continuous pressure monitoring
• Applications requiring automated or bench-top calibration systems
• Low-pressure calibration tasks outside the device pressure range
The Fluke 3130G2M Portable Pressure Calibrator is a professional portable pressure calibration solution combining robust pressure generation with precise measurement and electrical testing.
3130 Portable Pressure Calibrator Technical Data
Selection Notes
• Confirm that a portable pressure calibrator meets field calibration needs
• Designed for manual pressure generation and fine pressure adjustment
• Suitable for on-site maintenance, inspection, and troubleshooting
• High-pressure capability supports demanding industrial applications
• Proper handling and regular verification ensure calibration accuracy
Why Choose the Fluke 3130-G2M
• Precise pressure generation with fine adjustment capability
• Designed for calibration and testing of pressure instruments
• Proven Fluke reliability for industrial maintenance applications
Key features
- Measure/generate pressures from vacuum to 2 MPa (300 psi, 20 bar).
- Measure/generate 4 to 20 mA, measures 0 to 30 V DC
- Generate vacuum to -80 kPa (-12 psi, -0.8 bar) or pressure to 2 MPa (300 psi, 20 bar).
- External gas supply up to 2 MPa (300 psi, 20 bar).
- Fine pressure adjustment.
- Measurement accuracy of ± (0.025 % reading + 0.01 % FS).
FAQ
Q: Is the Fluke 3130-G2M used for calibration or continuous measurement?
A: It is designed for calibration and testing, not for continuous pressure measurement.
Q: Can the 3130-G2M be used on-site?
A: Yes. It is designed for portable field calibration and maintenance work.
Q: What types of instruments can be calibrated?
A: Pressure gauges, transmitters, and pressure switches within the supported range.
Q: Can you help confirm if this calibrator fits my application?
A: Yes. Our engineers can review your calibration requirements and recommend the right solution.
| Operating temperature | -10°C to +50°C |
|---|---|
| Storage Temperature | -20°C to +60°C |
| Power requirements | 12 V DC (Universal ac adapter/charger supplied) |
| Battery | Internal 3800 mAh advanced NiMH pack |
| On full charge | Approx 50 hours (Measure only or external air; no pump) |
| Using internal pump | Approx 100 calibration cycles to 300 psi |
| Dimensions (L x W x D) | 15.25 x 12 x 7 in |
| Weight | ~7 kg (15 lb) |
| EMI/RFI conformance | EMI/RFI conformance |
| Connectors/ports | 1/8 in NPT (External supply port and test port) |
