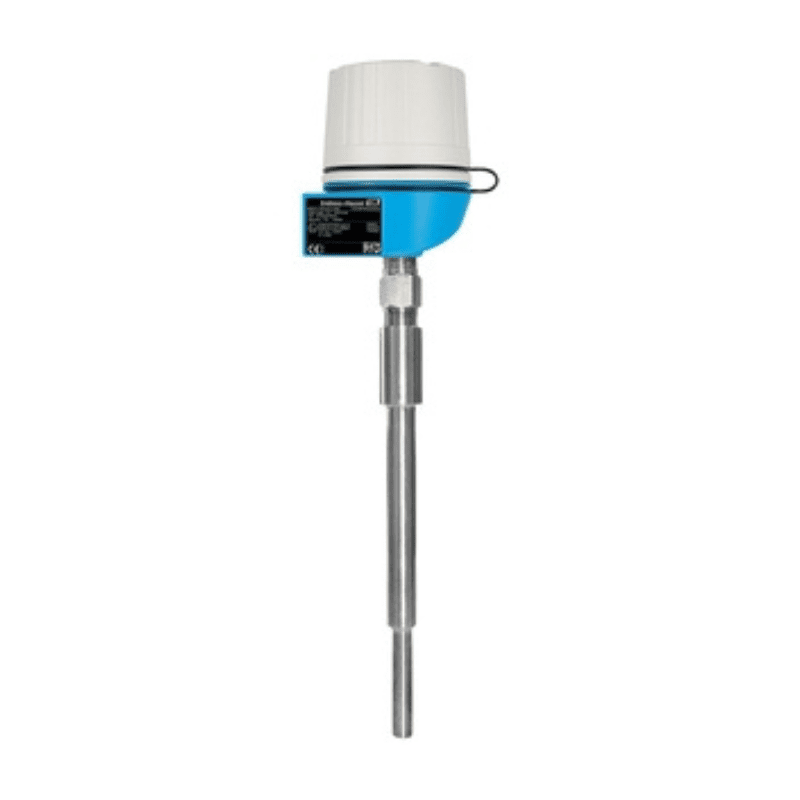

Endress+Hauser T13 Explosion proof Pt100 thermometer, US style
$260.00
The robust device with a barstock thermowell is a complete unit ready for use with various housing transmitter heads to meet the application and space requirements. The unit offers enhanced measurement accuracy and reliability. A variety of process connections, dimensions, and materials (like 316L SS and Hastelloy C276) offer flexible application possibilities.
The T13 temperature sensor is a RTD assembly installed in thermowell and designed for use in harsh environments and explosive areas, due to his FM and CSA approvals.
The sensor is made up of a measurement probe with an insulated RTD element, sheath and a thermowell made of bar-stock material.
T13 Explosion proof Pt100 thermometer, US style
Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry
Specs at a glance
-
Accuracy
class A acc. to IEC 60751
class B acc. to IEC 60751 -
Response time
depending on configuration
63% rt = 20 s -
Max. process pressure (static)
at 20 °C: 100 bar (1.450 psi)
depends on configuration -
Operating temperature range
PT100 WW:
-200 °C … 600 °C
(-328 °F … 1.112 °F)
PT100 TF:
-50 °C … 200 °C
(-58 °F … 392 °F) -
Max. immersion length on request
up to 22.5″ (571 mm)
others on request
Field of application
The robust device with a barstock thermowell is a complete unit ready for use with various housing transmitter heads to meet the application and space requirements. The unit offers enhanced measurement accuracy and reliability. A variety of process connections, dimensions, and materials (like 316L SS and Hastelloy C276) offer flexible application possibilities.
The T13 temperature sensor is a RTD assembly installed in thermowell and designed for use in harsh environments and explosive areas, due to his FM and CSA approvals.
The sensor is made up of a measurement probe with an insulated RTD element, sheath and a thermowell made of bar-stock material.
The sensor assembly can be used in process industries such as:
-
Chemicals
-
Petrochemical
-
Refineries
-
Offshore Platforms
Benefits
-
FM/CSA XP Class I, Div. 1 approved temperature assemblies for maximum safety
-
One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications
-
Remove and install straight out of the box!
-
Improved galvanic isolation on most devices (2 kV)
-
Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor, thermowell and transmitter assembly for a complete point solution
-
All iTEMP transmitters provide long term stability ≤0.05% per year
| Measuring principle | Resistance Temperature Detector |
|---|---|
| Characteristic / Application | Explosions Proof US style |
| Thermowell / protection tube | bar stock (drilled) |
| Insert / probe | mineral insulated (MI), flexible |
| Outer diameter protection tube / Insert | 3/4'' (19,05 mm) |
| Max. immersion length on request | up to 22.5" (571 mm) |
| Material protection tube/ thermowell | 316/ 316L |
| Optional coating | available on request |
| Process connection | male thread: |
| Tip shape | stepped |
| Surface roughness Ra | 32 μin. (0.80 μm) |
| Operating temperature range | PT100 WW: |
| Max. process pressure (static) | at 20 °C: 100 bar (1.450 psi) |
| Accuracy | class A acc. to IEC 60751 |
| Response time | depending on configuration |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Ex - approvals | FM XP DIP |
| Certification | SIL (transmitter only) |
