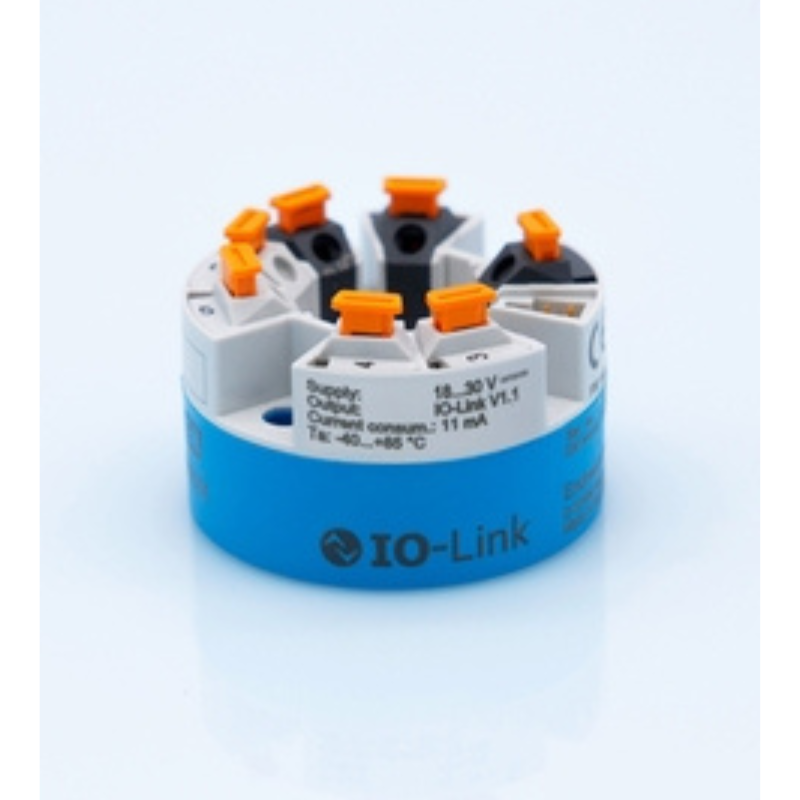

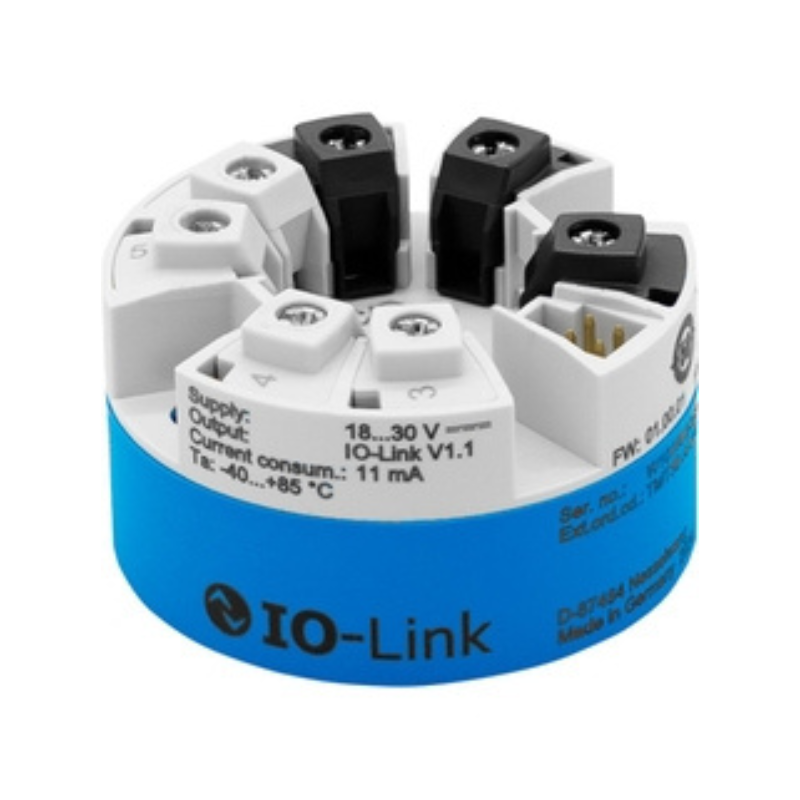

Endress+Hauser iTEMP TMT36 temperature transmitter
$200.00
The iTEMP TMT36 is a reliable, long lasting, single-channel IO-Link temperature head transmitter with a form B connection head. Individual transmitter-sensor matching with Callendar van Dusen linearization further improves the temperature measurement accuracy of RTD sensors. The IO-Link capable iTEMP TMT36 can be installed in all modular Endress+Hauser thermometers to digitize a larger number of applications with special requirements using IO-Link technology.
iTEMP TMT36 temperature transmitter
IO-Link temperature head transmitter with one RTD sensor input
Specs at a glance
-
Accuracy
(Pt100, -50…200 °C) <= 0,15 K
(Pt100, -58…392 °F) <= 0,15 K
Field of application
The iTEMP TMT36 is a reliable, long lasting, single-channel IO-Link temperature head transmitter with a form B connection head. Individual transmitter-sensor matching with Callendar van Dusen linearization further improves the temperature measurement accuracy of RTD sensors. The IO-Link capable iTEMP TMT36 can be installed in all modular Endress+Hauser thermometers to digitize a larger number of applications with special requirements using IO-Link technology.
-
The temperature transmitter is characterized by its reliability, long-term stability, high precision and diagnostic functions
-
For maximum safety and availability
-
Installation in terminal head form B (flat face), or on DIN rail with DIN rail clip
-
IO-Link (1x PNP, NPN or push-pull switch output, configurable)
Benefits
-
Push-in terminals for fast, tool-free wiring during installation or maintenance
-
Simple parametrization via free software tools (requires SFP20)
-
Transmitter-sensor matching using Callendar van Dusen linearization for critical measurement points
-
Improved RTD measurement accuracy up to 0.15 K and long-term stability
-
Safe and reliable operation
-
IO-Link technology to digitize the the last mile of your plant
| Measuring principle | Head transmitter |
|---|---|
| Input | 1 x RTD |
| Output | 1 x IO-Link |
| Auxiliary power supply | 18…30 V DC |
| Communication | IO-Link |
| Installation | Terminal head form B |
| Accuracy | (Pt100, -50…200 °C) <= 0,15 K |
| Galvanic isolation | no |
| Certification | CSA General Purpose |
