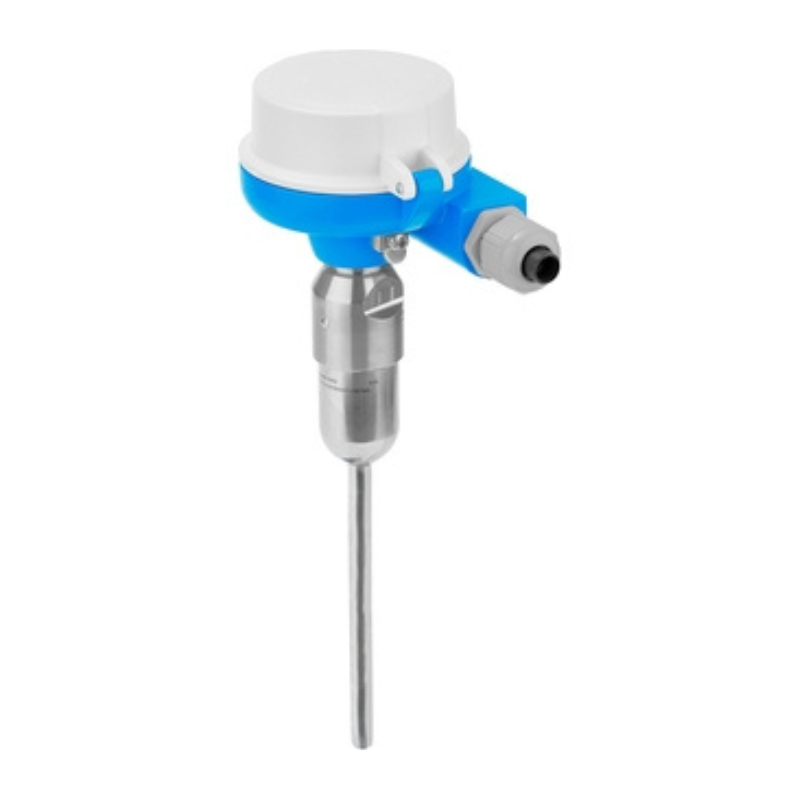

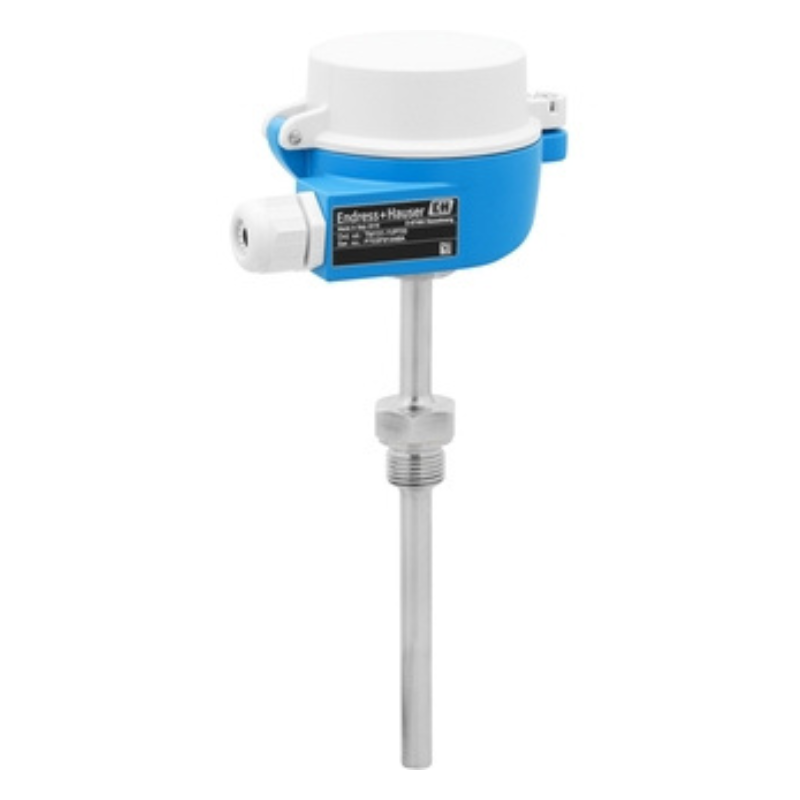

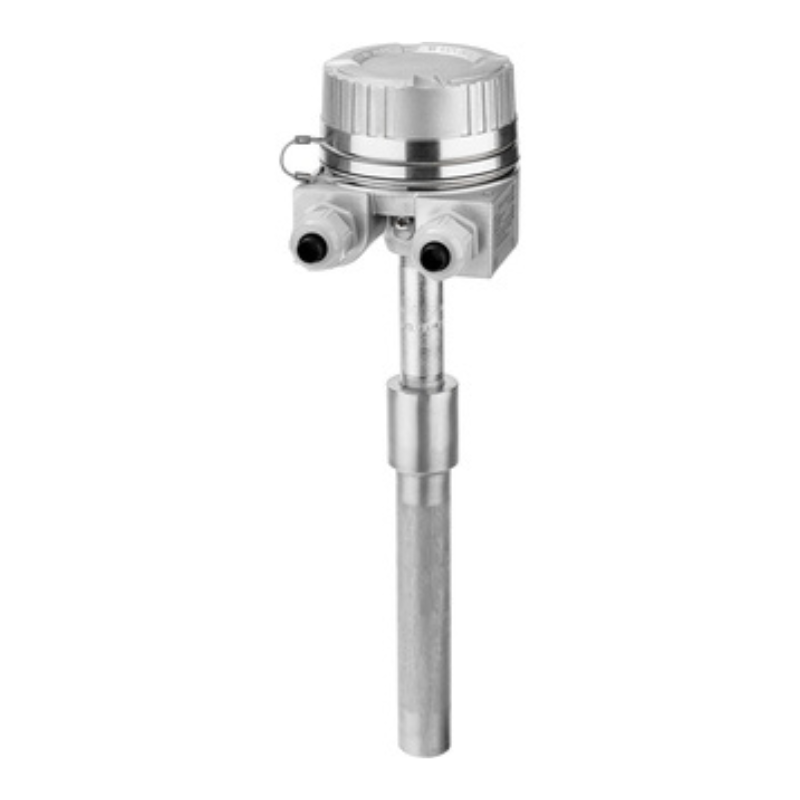

Endress+Hauser iTHERM ModuLine TM131 Industrial modular thermometer

iTHERM ModuLine TM131 Industrial modular thermometer

Metric RTD/TC thermometer with welded thermowell for a wide range of industrial applications

Specs at a glance

• Accuracy

  Class AA acc. to IEC 60751
  Class A acc. to IEC 60751
  Class B acc. to IEC 60751
  Class special or standard acc. to ASTM E230
  Class 1 or 2 acc. to IEC 60584-2

• Response time

  fastest response time with thermowell t90 starting at below 10 s
  depending on configuration

• Max. process pressure (static)

  depending on the configuration up to 100 bar

• Operating temperature range

  PT100 TF iTHERM StrongSens:
  -50 °C …500 °C
  (-58 °F …932 °F)
  PT100 TF iTHERM QuickSens:
  -50 °C …200 °C
  (-58 °F …392 °F)
  PT100 WW:
  -200 °C …600 °C
  (-328 °F …1.112 °F)
  PT100 TF:
  -50 °C …400 °C
  (-58 °F …752 °F)
  Typ K:
  max. 1.100 °C
  (max. 2.012 °F)
  Typ J:
  max. 800 °C
  (max. 1.472 °F)
  Typ N:
  max. 1.100 °C
  (max. 2.012 °F)

• Max. immersion length on request

  up to 4.500,0 mm (177”)

Field of application

Intrinsically safe temperature sensor (RTD / TC assembly) with manufactured thermowell or for use with existing thermowell. An optional head transmitter with all common communication protocols – Bluetooth® technology inclusive – and special features like iTHERM QuickNeck for tool-free, easy recalibration, vibration-resistant and fast-response sensor and thermowell technology (iTHERM StrongSens, QuickSens) as well as hazardous area approvals ensure enhanced measurement accuracy and reliability.

Benefits

• Dual Seal: Second process barrier with failure indication offering valuable health status information

• iTHERM QuickSens: fastest response times 1.5 s for optimum process control

• iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety

• iTHERM QuickNeck: cost and time savings thanks to simple, tool-free recalibration

• Bluetooth® connectivity (optional)

• International certification: explosion protection according to ATEX, IECEx, CSA C/US and NEPSI
