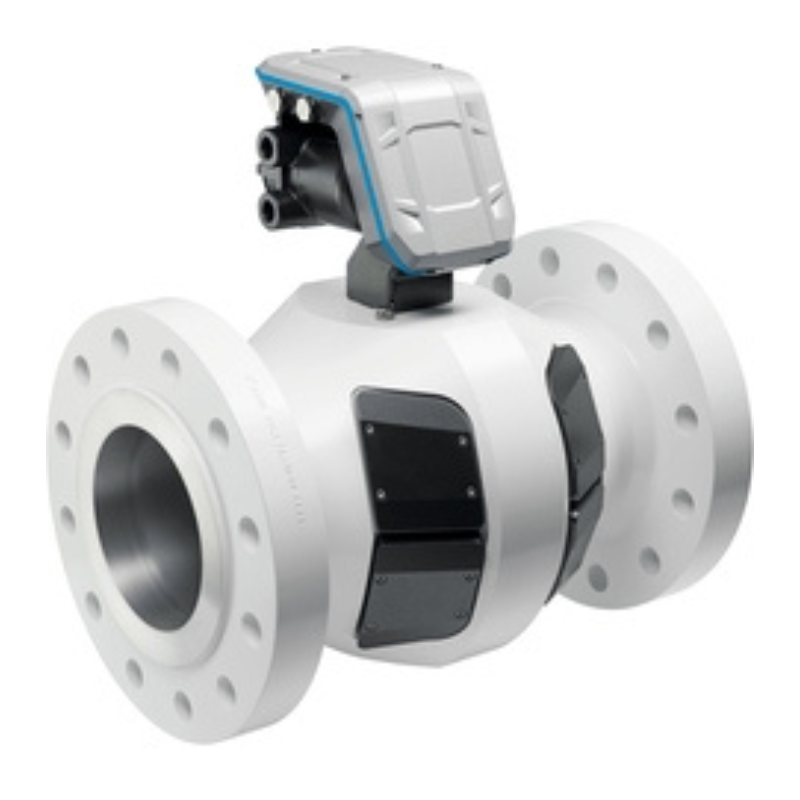

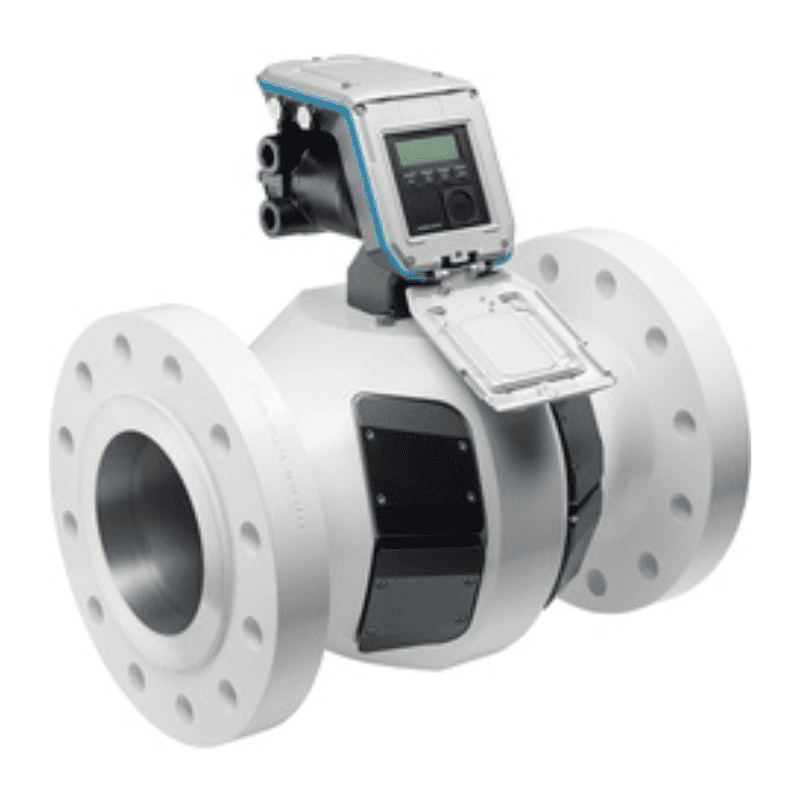

Endress+Hauser FLOWSIC600-XT IFL6XT ultrasonic flowmeter
$9,200.00

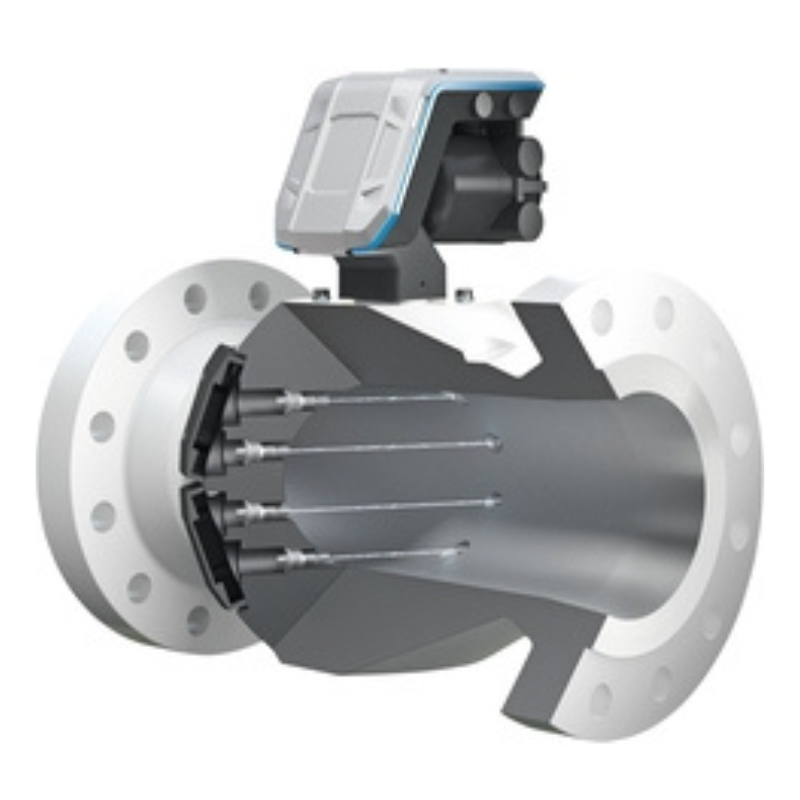

FLOWSIC600-XT is available in variants with 4, 4+1, 4+4, and 8 measurement paths. In addition to the OIML R 137 Class 1.0 requirements, FLOWSIC600-XT meets the requirements of Class 0.5 and AGA9 in their entirety. FLOWSIC600-XT contains i-diagnostics™ – an intelligent application diagnostics function – and PowerIn Technology™ for continuous measurement operation for up to three weeks in the event of a mains voltage failure. For the very best possible measurement accuracy and long-term stability.
FLOWSIC600-XT IFL6XT ultrasonic flowmeter
Custody transfer natural gas measurement with intelligent diagnostic functions
Specs at a glance
-
Measured variables
Volumetric flow a. c., volume a. c., gas velocity, Speed of sound, optional volume correction via integrated, electronic volume corrector (EVC)
-
Measuring Medium
Natural gas (with up to 30% hydrogen), air, natural gases containing increased levels of CO2, N2, H2S, O2, H2
-
Nominal pipe size
3 ″ … 56 ″
(DN 80 … DN 1400), other nominal pipe sizes on request
Field of application
FLOWSIC600-XT is available in variants with 4, 4+1, 4+4, and 8 measurement paths. In addition to the OIML R 137 Class 1.0 requirements, FLOWSIC600-XT meets the requirements of Class 0.5 and AGA9 in their entirety. FLOWSIC600-XT contains i-diagnostics™ – an intelligent application diagnostics function – and PowerIn Technology™ for continuous measurement operation for up to three weeks in the event of a mains voltage failure. For the very best possible measurement accuracy and long-term stability.
-
Custody transfer measurement of natural gas
-
Custody transfer measurement of natural gas with up to 30% H2
-
Transport and storage of gas
-
Onshore and offshore applications
Device properties:
-
Automatic adjustment of pressure and temperature influences
-
Available for all operating conditions
-
PowerIn Technology™ for reliable backup operation
-
Intelligent application diagnostics with i-diagnostics™
-
Measuring capability up to 30% hydrogen in natural gas
Benefits
-
Low measurement uncertainty in every application
-
Excellent measurement data reliability and availability
-
The right ultrasonic gas flow measuring device for every application – without compromise
-
Simple device integration – even in compact systems
-
Quick and easy commissioning and checks
-
Economical quantification of the H2 content in natural gas
| Measuring principle | Ultrasonic transit time difference measurement |
|---|---|
| Measured variables | Volumetric flow a. c., volume a. c., gas velocity, Speed of sound, optional volume correction via integrated, electronic volume corrector (EVC) |
| Measuring Medium | Natural gas (with up to 30% hydrogen), air, natural gases containing increased levels of CO2, N2, H2S, O2, H2 |
| Repeatability | ≤ 0.05 % of the measured value (typical) |
| Accuracy | 4-path and 8-path version ≤ ± 0.5 %, (≤ ± 1%) Dry-calibrated 4-path and 8-path version ≤ ± 0.2 %, (≤ ± 0.5%) After flow calibration and alignment using constant factor. Without the calibration uncertainty of the test bench. 4-path and 8-path version ≤ ± 0.1 %, (≤ ± 0.2%) After flow calibration and alignment using polynomial or piecewise correction. Without the calibration uncertainty of the test bench. |
| Medium temperature range | –46 °C … +180 °C / -51 °F … +356 °F |
| Operating pressure range | 0 bar (g) … 450 bar (g) 0 psi (g) … 6527 psi (g) |
| Nominal pipe size | 3 ″ … 56 ″ |
| Metrological approvals and certificates | OIML R 137-1&2:2012 (class 0.5) |
| Hazardous area approvals | IECEx ATEX |
| Digital Outputs | 4 outputs: 2 x status, 2 x pulse: |
| Digital communication | Modbus TCP |
