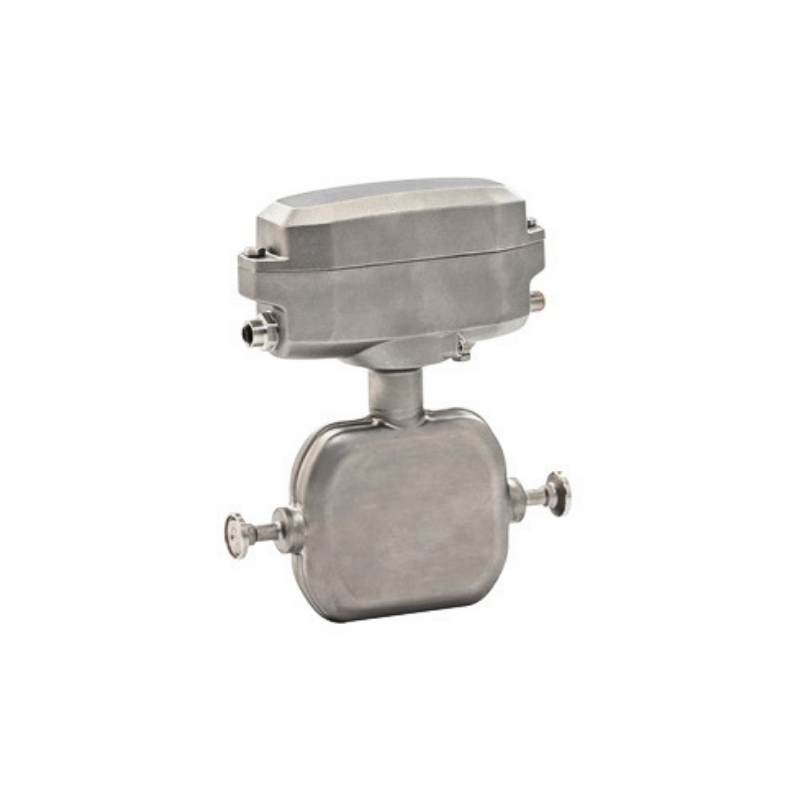

Endress+Hauser Dosimass D8AB Coriolis flowmeter
$6,200.00
The Endress+Hauser Dosimass D8AB Coriolis Flowmeter is designed for filling and bottling applications in Food & Beverage and Life Sciences. It directly measures mass and volume flow, with temperature and density compensation, ensuring high accuracy and repeatability independent of fluid viscosity or density.
Its lightweight and compact design makes it ideal for systems with limited space, preferred by system integrators, skid builders, and equipment manufacturers. The D8AB is available in three electronics versions, offering flexible integration and advanced process control.
Not Recommended For:
• Media with large solids or fibers that may block the flow tube
• Extremely low flow rates outside the meter’s range
E+H Dosimass Technical Information
Selection Notes
• Confirm the application: filling, bottling, or dosing in Food & Beverage or Life Sciences
• Verify the flow medium properties, including density and viscosity
• Select the electronics version according to control requirements:
- Pulse/frequency/status for economical, simple applications
- Intelligent pulse with IO-Link for continuous digital communication and predictive maintenance
- Integrated batching with Dynamic Drip Correction over Modbus RTU for advanced filling control
• Choose the sensor size and process connection for your pipeline and installation space
• Ensure compliance requirements, such as EHEDG, 3-A, FCM, and cGMP
Why Choose the Dosimass D8AB
• High and Stable Filling Performance
Direct mass and volume measurement with temperature and density compensation ensures maximum repeatability and shortest filling times.
• Multivariable Measurement
The flowmeter simultaneously measures flow, density, and temperature, reducing the number of process measuring points.
• Real-Time Digital Communication
The IO-Link version enables easy commissioning, continuous process data availability, and predictive maintenance.
• Compact and Lightweight Design
The small footprint allows installation in tight spaces, optimizing machine layouts.
• Integrated Batching Functionality
Dynamic Drip Correction and Modbus RTU support advanced filling control without extra devices.
• Hygienic and Industry-Compliant Construction
Complies with EHEDG, 3-A, FCM, cGMP standards, and is SIP and CIP cleanable, ensuring safe operation in hygienic processes.
FAQ
Q: What applications is Dosimass D8AB designed for?
A: It is ideal for filling, bottling, and dosing in Food & Beverage and Life Sciences, including applications with limited space.
Q: How does it ensure accurate measurement?
A: By directly measuring mass and volume flow, with temperature and density compensation, accuracy and repeatability are maintained regardless of fluid properties.
Q: What electronics versions are available?
A:
- Pulse/frequency/status: economical, simple use
- Intelligent pulse with IO-Link: continuous digital communication, predictive maintenance
- Integrated batching with Dynamic Drip Correction over Modbus RTU: advanced filling control
Q: Is it hygienic and cleanable?
A: Yes. It is SIP and CIP cleanable, and meets EHEDG, 3-A, FCM, cGMP standards.
| Measuring principle | Coriolis |
|---|---|
| Product headline | The compact sensor with an ultra-compact transmitter. |
| Sensor features | High process safety – high measuring accuracy for different media in shortest filling time. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. |
| Transmitter features | Versatile and time-saving wiring – plug connector. Fast commissioning – pre-configured devices. Automatic recovery of data for servicing. |

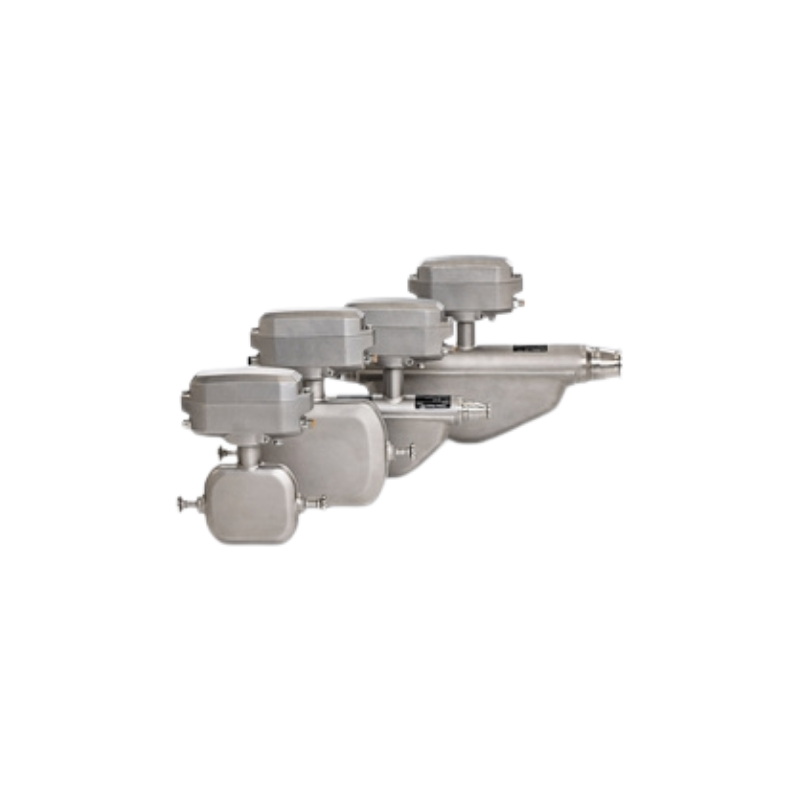

| Nominal diameter range | DN 1 to 40 (¹⁄₂₄ to 1¹⁄₂") |
| Wetted materials | Measuring tube: |
| Measured variables | Mass flow, density, temperature, volume flow |
| Max. measurement error | Mass flow (liquid): ±0.15 % |
| Measuring range | 0 to 45 000 kg/h (0 to 1654 lb/min) |
| Max. process pressure | PN 40 |
| Medium temperature range | –40 to +130 °C (–40 to +266 °F) |
| Ambient temperature range | –20 to +60 °C (–4 to +140 °F) |
| Sensor housing material | Stainless steel, 1.4404 (316/316L) (DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈") |
| Transmitter housing material | Stainless steel, 1.4409 (CF3M) |
| Degree of protection | IP67, type 4X enclosure |
| Display/Operation | No local operation |
| Outputs | Pulse/frequency/switch output (passive) |
| Digital communication | Modbus RS485, IO-Link |
| Power supply | DC 20 to 30 V |
| Hazardous area approvals | ATEX, IECEx, UL, UK Ex |
| Other approvals and certificates | 3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR |
| Product safety | CE |
