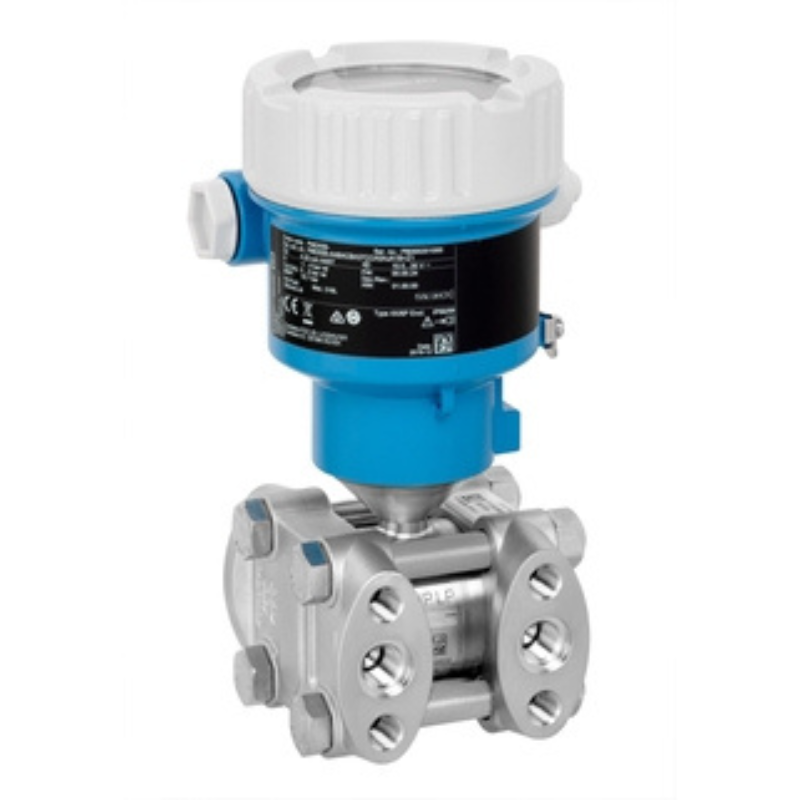

Endress+Hauser Deltabar PMD55B – differential pressure transmitter
$620.00
This transmitter belongs to the new Deltabar generation. It is robust and easy to operate either locally or remotely. The transmitter can be controlled wireless via app on a mobile device using a secure Bluetooth connection. The PMD55B allows condition-based maintenance which increases efficiency in technical service significantly.
The software is designed to simplify the handling. Intuitive wizards guide you through the setup and proof testing of the device which minimizes operating errors.
Deltabar PMD55B – differential pressure transmitter
Smart transmitter with metal membrane for differential pressure monitoring in liquids and gases
Specs at a glance
-
Accuracy
Standard:
up to 0.075 %
Platinum:
up to 0.055 % -
Measuring range
10 mbar…40 bar
(0.15 psi…600 psi) -
Process temperature
-40°C…+110°C (-40°F…+230°F)
-
Medium temperature range
-40°C…+110°C
(-40°F…+230°F) -
Pressure measuring range
10 mbar…. 40 bar (0.15 psi… 600 psi)
-
Main wetted parts
316L, AlloyC
-
Wetted materials
316L, Alloy
-
Measuring cell
10 mbar…. 40 bar (0.15 psi… 600 psi)
Field of application
This transmitter belongs to the new Deltabar generation. It is robust and easy to operate either locally or remotely. The transmitter can be controlled wireless via app on a mobile device using a secure Bluetooth connection. The PMD55B allows condition-based maintenance which increases efficiency in technical service significantly.
The software is designed to simplify the handling. Intuitive wizards guide you through the setup and proof testing of the device which minimizes operating errors.
-
Pressure measuring range: up to 40 bar (600 psi)
-
Static pressure up to 250bar (3750psi)
-
Accuracy: up to +/-0.055%
Benefits
-
Wireless control of the device in the process area with the SmartBlue App without interrupting the process
-
Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
-
Reduce systematic failures – error free SIL commissioning and instrument guided proof testing
| Measuring principle | Differential pressure |
|---|---|
| Characteristic | Transmitter with metal membrane for differential pressure monitoring in liquids or gases. |
| Supply voltage | Ex d, Ex e, non-Ex:: |
| Reference Accuracy | Standard: |
| Long term stability | 0.05 % of URL/ year |
| Process temperature | -40°C…+110°C (-40°F…+230°F) |
| Ambient temperature | -40°C…+85°C (-40°F…+185°F) |
| Measuring cell | 10 mbar…. 40 bar (0.15 psi… 600 psi) |
| Max. overpressure limit | 375 bar (5625 psi) |
| Process connection | NPT 1/4-18, RC1/4" |
| Communication | 4…20 mA HART |
| Certificates / Approvals | ATEX, CSA, IECEx, JPN Ex, KC, INMETRO, NEPSI, UK Ex |
| Safety approvals | SIL |
| Design approvals | EN 10204-3.1, |
| Drinking water approvals | NSF, KTW |
| Specialities | Bluetooth® Operation and maintenance with SmartBlue App, |
