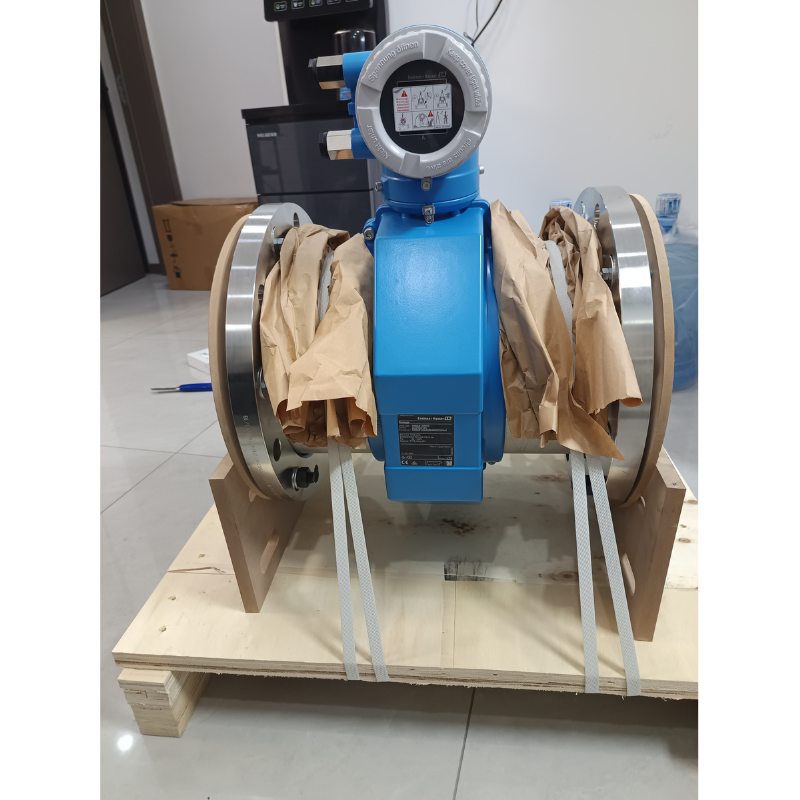

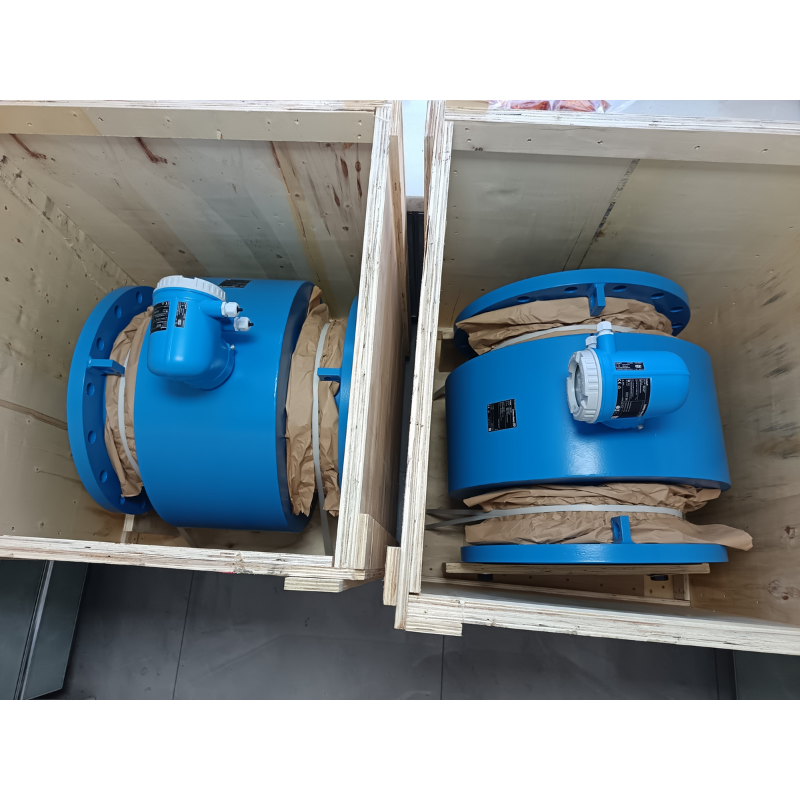

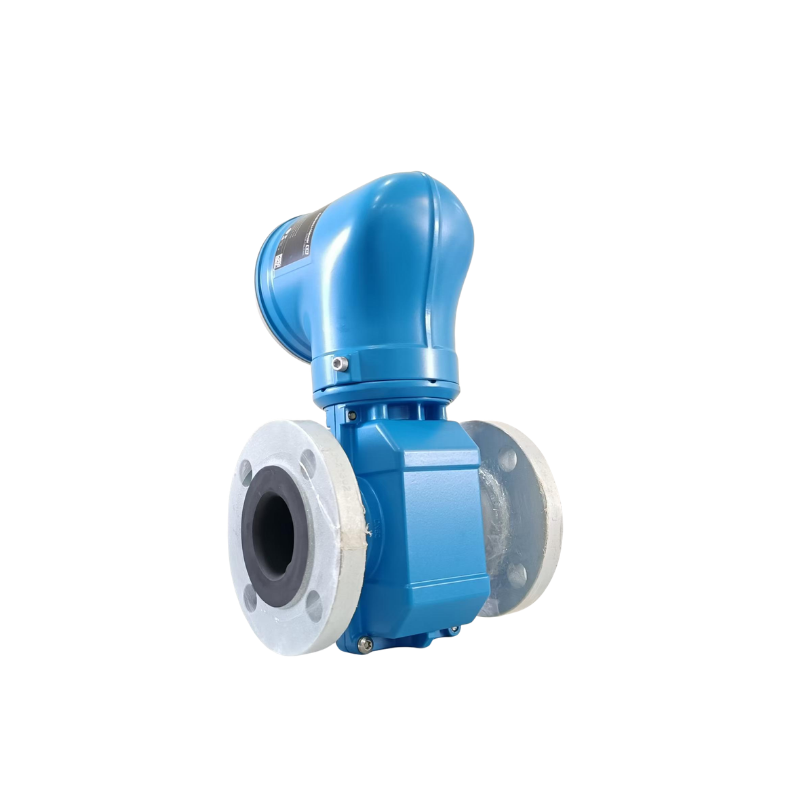

E+H Proline Promag W 10 5WBB electromagnetic flowmeter
$1,000.00
The Proline Promag W 10 (5WBB) Electromagnetic Flowmeter provides reliable and accurate flow measurement for water and wastewater applications. It uses electromagnetic measurement technology, which ensures stable performance without pressure loss.
This flowmeter is ideal for municipal water supply, wastewater treatment, and industrial water systems. In addition, it performs well in applications with varying flow conditions and suspended solids. Thanks to its robust design and simple operation, it offers long-term reliability with minimal maintenance.
Not Recommended For:
• Non-conductive liquids (e.g., oils, gases)
• Very low conductivity media
Selection Notes
• Measurement Principle: The device uses electromagnetic flow measurement, which requires conductive liquids. Ensure the medium has sufficient conductivity.
• Application Type: It is designed for water and wastewater applications, including drinking water, sewage, and sludge.
• Pipe Size and Installation: Select the correct nominal diameter (DN) and confirm installation conditions for optimal accuracy.
• Process Conditions: Verify temperature, pressure, and lining material compatibility with your application.
• Output and Communication: Ensure compatibility with your system, including pulse, analog, or digital outputs.
Why Choose the Proline Promag W 10
• Accurate Electromagnetic Measurement
The flowmeter uses Faraday’s law of electromagnetic induction to measure flow. Therefore, it provides accurate readings independent of pressure, temperature, or density changes.
• Optimized for Water Applications
It is specifically designed for water and wastewater industries. As a result, it ensures reliable performance in municipal and industrial systems.
• No Pressure Loss
The sensor has no internal obstructions, so it does not cause pressure drop. This improves system efficiency and reduces energy consumption.
• Robust and Durable Design
The device withstands harsh environments, including corrosion, moisture, and outdoor installations. Therefore, it ensures long service life.
• Easy Operation and Maintenance
Simple configuration and stable performance reduce maintenance needs. In addition, it lowers overall operating costs.
FAQ
Q: What types of liquids can the Promag W 10 measure?
A: It measures conductive liquids, especially water, wastewater, and sludge. It is not suitable for oils or gases.
Q: Does it cause pressure loss in the pipeline?
A: No. The electromagnetic measurement principle ensures no obstruction and no pressure drop.
Q: Is it suitable for wastewater applications?
A: Yes. It is specifically designed for wastewater and sludge measurement, even with solids present.
Q: How accurate is the measurement?
A: The device provides high accuracy and stable performance, even under fluctuating flow conditions.
| Nominal diameter range | DN 25 to 3000(1 to 120") |
|---|---|
| Wetted materials | Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) |
| Measured variables | Volume flow, conductivity, mass flow |
| Max. measurement error | Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) |
| Measuring range | 0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d) |
| Max. process pressure | PN 40, Class 300, 20K |
| Medium temperature range | Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) |
| Ambient temperature range | -40 to 60°C (-40 to 140°F) |
| Sensor housing material | DN 25 to 300 (1 to 12"): AlSi10Mg, coated |
| Transmitter housing material | Polycarbonat; AlSi10Mg, coated |
| Degree of protection | Compact version: IP66/67, type 4X enclosure |
| Display/Operation | LCD display with touch & auto rotate |
| Outputs | 4-20 mA HART (active/passive), Pulse/frequency/switch output |
| Digital communication | HART, MODBUS RS485 |
| Power supply | DC 24 V |
| Hazardous area approvals | CSA, GP, KC |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Pressure approvals and certificates | CRN, PED |
| Material certificates | 3.1 material |
| Hygienic approvals and certificates | Drinking water approvals: ACS, KTW-BWGL, NSF 61, WRAS BS 6920 |
