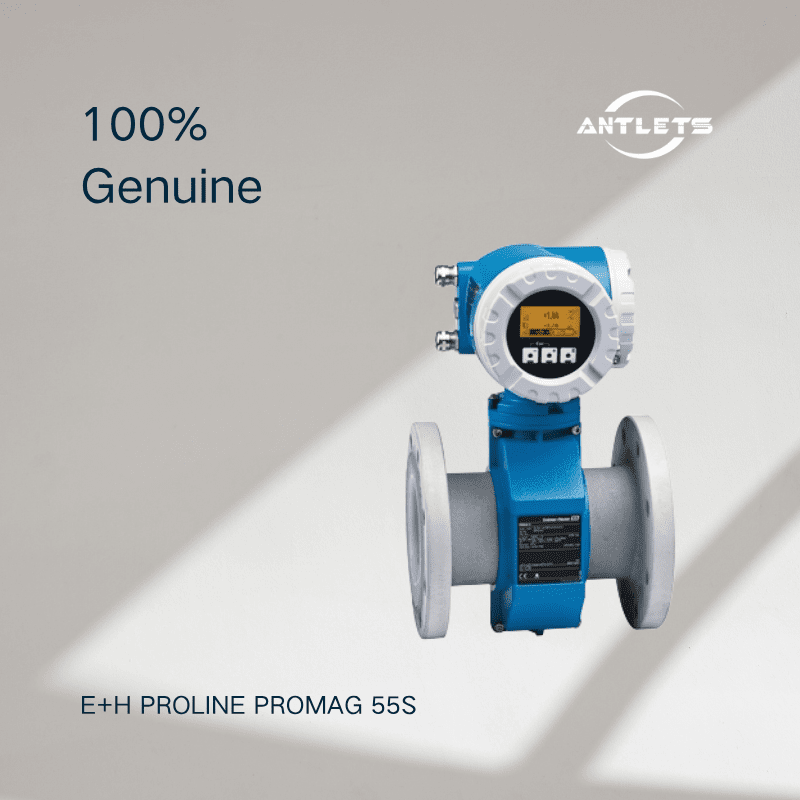

E+H 55S Proline Promag 55S electromagnetic flowmeter
$1,350.00
The Endress+Hauser Proline Promag 55S is a high-performance electromagnetic flowmeter designed for abrasive, inhomogeneous and high-solids-content liquids. It delivers reliable flow measurement even in challenging environments such as slurry, pulp or wastewater applications.
This flowmeter features a robust sensor design with optimized liners and electrodes. In addition, it can measure solids content alongside flow, which makes it highly valuable in demanding industrial processes.
Typical applications include mining slurry, sewage treatment, pulp and paper production, and metal processing industries.
Not Recommended For:
• Non-conductive liquids such as oil or gas
• Clean, low-solids applications where simpler models are sufficient
Selection Notes
• Confirm that the medium is conductive and contains solids, as this model is optimized for such conditions
• Verify the flow range, typically from 0.06 dm³/min to 600 m³/h
• Choose the correct liner material (e.g., polyurethane, rubber, PTFE) based on abrasion and chemical resistance
• Check the process temperature, which can reach up to 180 °C depending on configuration
• In addition, ensure the pressure rating (up to PN40 / Class 300) matches your system requirements
Why Choose the Promag 55S
• Designed for Abrasive and High-Solids Media
This model is specifically built for slurry and solids-laden liquids. Therefore, it performs reliably where standard flowmeters fail.
• Integrated Solids Content Measurement
The transmitter can calculate solids concentration in addition to flow. As a result, process monitoring becomes more efficient.
• Excellent Durability with Specialized Liners
A wide range of liner materials improves resistance to wear and corrosion. Consequently, service life is extended in harsh environments.
• Stable Measurement Independent of Process Variables
The electromagnetic principle is unaffected by density, viscosity or pressure. Therefore, measurement remains stable under varying conditions.
• Maintenance-Free Operation
There are no moving parts inside the sensor. This design reduces maintenance and minimizes downtime.
• Advanced Communication and Diagnostics
It supports HART, PROFIBUS PA/DP and FOUNDATION Fieldbus. In addition, built-in diagnostics improve operational safety.
FAQ
Q: What makes Promag 55S different from standard mag flowmeters?
A: It is specifically designed for abrasive and high-solids media, with enhanced durability and solids measurement capability.
Q: What industries commonly use this flowmeter?
A: It is widely used in mining, wastewater treatment, pulp and paper, and metals processing.
Q: What is the measurement accuracy?
A: Standard accuracy is ±0.5% of reading, with optional higher accuracy available.
Q: Does it require maintenance?
A: No. Because it has no moving parts, maintenance requirements are minimal.
| Nominal diameter range | DN 15…600 |
|---|---|
| Wetted materials | Liner: Polyurethane, Hard rubber, PFA, PTFE, Natural rubber |
| Measured variables | Volume flow, electrical conductivity, mass flow |
| Max. measurement error | Volume flow: ±0.5 % o.r.± 1 mm/s (0.04 in/s) |
| Measuring range | 0.06 dm3/min to 600 m3/h (0.015 gal/min to 2650 gal/min) |
| Max. process pressure | PN 40, Cl. 300, JIS 20 K |
| Medium temperature range | 0 to +60 °C (+32 to +140 °F), 0 to +80 °C (+32 to +176 °F), –20 to +50 °C (–4 to +122 °F), –20 to +180 °C (–4 to +356 °F), –20 to +150 °C (–4 to +266 °F) |
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
| Sensor housing material | Aluminum coated AlSi10Mg, carbon steel with protective varnish |
| Transmitter housing material | Powder-coated die-cast aluminum |
| Degree of protection | Standard: IP 67 (Type 4X enclosure) for transmitter and sensor |
| Display/Operation | Liquid-crystal display: illuminated, four lines with 16 characters per line |
| Outputs | 4…20mA |
| Inputs | Status |
| Digital communication | HART, PROFIBUS DP/PA, FOUNDATION Fieldbus |
| Power supply | AC 20 to 260 V |
| Hazardous area approvals | ATEX, FM, CSA, UK Ex |
| Product safety | CE, C-tick, EAC marking |
| Pressure approvals and certificates | CRN, PED |
| Material certificates | 3.1 material |
| Hygienic approvals and certificates | Drinking water approval:ACS, KTW-BWGL, NSF 61, WRAS BS 6920 |
