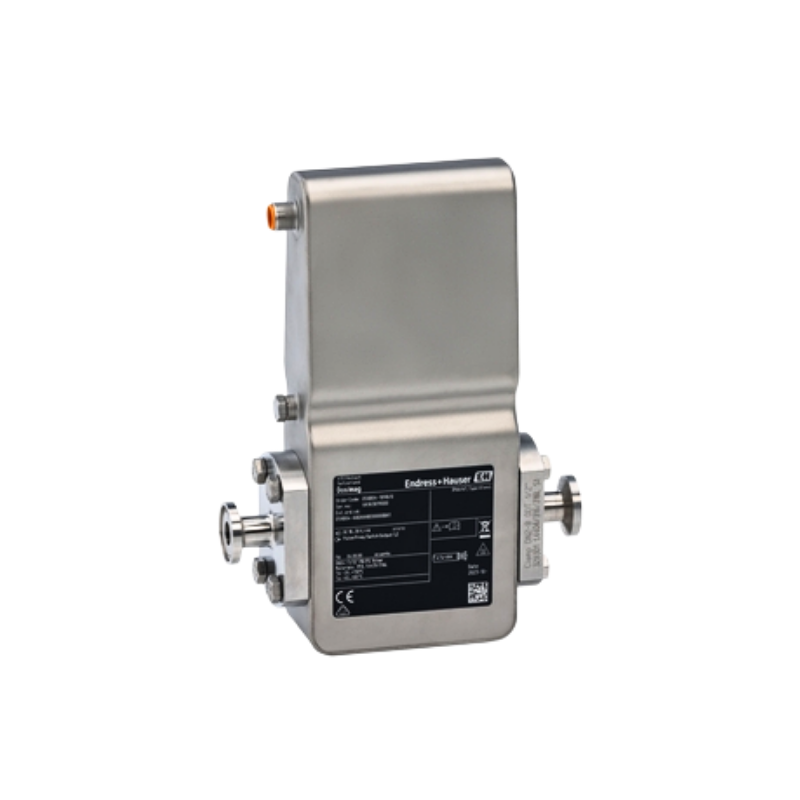

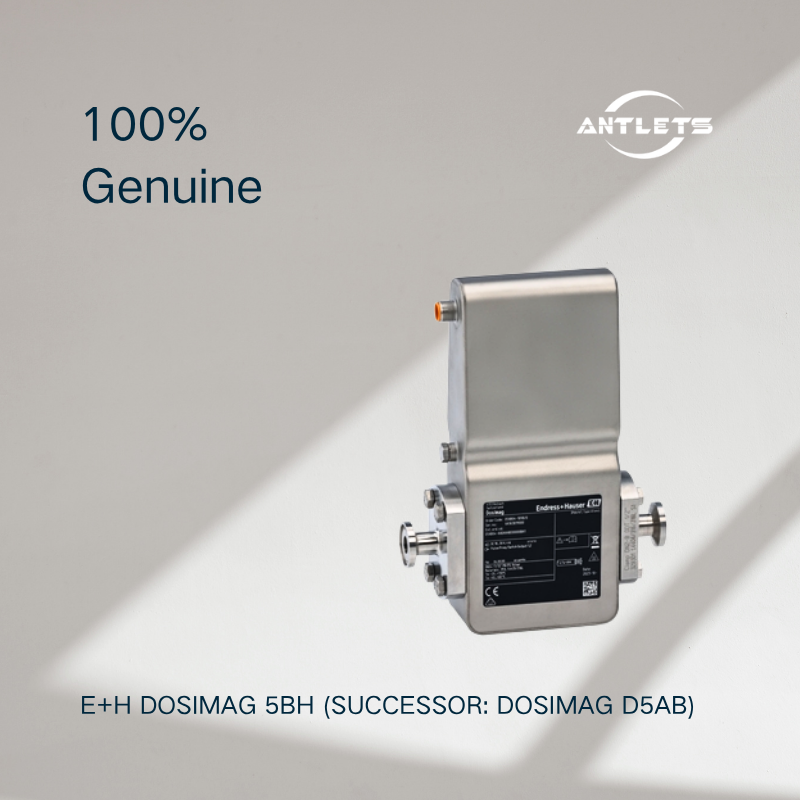

E+H D5AB Dosimag electromagnetic flowmeter
$2,000.00
The Endress+Hauser Dosimag D5AB is a compact electromagnetic flowmeter designed for high-precision filling and dosing applications in hygienic industries. It features a fully welded stainless-steel housing, which ensures durability and easy cleaning in sanitary environments.
This flowmeter provides exceptional repeatability and fast response, making it ideal for bottling, batching and dosing processes. In addition, the electromagnetic measuring principle is independent of pressure, density and viscosity.
Typical applications include food & beverage production, pharmaceuticals and life sciences processing systems.
Not Recommended For:
• Non-conductive liquids such as oils or gases
• Large pipe systems requiring high flow ranges
Selection Notes
• Confirm that the liquid is electrically conductive, which is required for electromagnetic measurement
• Verify the flow range, typically from 0.14 to 1.66 l/s depending on configuration
• Choose the correct hygienic connection, such as Tri-Clamp or threaded fittings
• Check the process temperature, up to 130 °C (or 150 °C with specific seals)
• In addition, ensure compliance with hygienic standards such as EHEDG or 3-A if required
Why Choose the Dosimag D5AB
• High Repeatability for Filling Processes
The sensor delivers repeatability up to ±0.25% of reading. Therefore, it ensures consistent filling accuracy in dosing applications.
• Hygienic Design with Full Cleanability
The fully welded housing and smooth surfaces support CIP and SIP cleaning. As a result, it meets strict hygienic requirements.
• Compact and Space-Saving Construction
Its ultra-compact design reduces installation space. Consequently, it is ideal for skid systems and OEM equipment.
• No Pressure Loss and Maintenance-Free Operation
The flowmeter has no internal obstructions or moving parts. This design eliminates pressure loss and reduces maintenance needs.
• Integrated Batching and Digital Communication
Optional features include IO-Link and Modbus communication. In addition, integrated batching functions improve filling control and process efficiency.
• High Chemical Resistance Materials
With PFA lining and corrosion-resistant electrodes, the device performs reliably in aggressive media.
FAQ
Q: What applications is Dosimag D5AB best suited for?
A: It is designed for filling, dosing and bottling processes in hygienic industries such as food, beverage and pharmaceuticals.
Q: What is the measurement principle?
A: It uses electromagnetic flow measurement based on Faraday’s law, ensuring accuracy independent of fluid properties.
Q: Does it support hygienic standards?
A: Yes. The device complies with EHEDG, 3-A and FDA requirements, and supports CIP/SIP cleaning.
Q: What communication options are available?
A: It supports pulse output, IO-Link and Modbus RS485, depending on configuration.
| Nominal diameter range | DN 4 to 25 (¹⁄₈ to 1") |
|---|---|
| Wetted materials | Liner: PFA |
| Measured variables | Volume flow, Temperature (DN15-26) |
| Max. measurement error | ±0.25 % o.r. ± 1 to 4 m/s (3.3 to 13 ft/s) |
| Measuring range | 0.14 to 1.66 l/s (0.035 to 0.44 gal/s) |
| Max. process pressure | PN 16 |
| Medium temperature range | Seal material EPDM: –20 to +130 °C (–4 to +266 °F) |
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
| Sensor housing material | 1.4404 (316/316L) |
| Transmitter housing material | 1.4404 (316/316L) |
| Degree of protection | IP66/67, type 4X enclosure |
| Display/Operation | No local Operation |
| Outputs | Pulse/frequency/switch output (passive) |
| Digital communication | Modbus RS485, IO-Link |
| Power supply | DC 20 to 30 V |
| Hazardous area approvals | ATEX, IECEx, UL, UK Ex |
| Product safety | CE |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc.to ISO/IEC 17025) |
| Material certificates | 3.1 material |
| Hygienic approvals and certificates | Sanitary approval: 3-A, EHEDG, seals acc. to FDA |
