Temperature Measurement Instrument Structure: Managing Heat, Not Just Measuring It

When selecting a temperature measurement instrument, many people see it as nothing more than a metal probe.

But temperature is fundamentally different from pressure or level.

Pressure measures force.
Level measures height.
Temperature measures thermal energy.

And heat behaves differently.

It conducts. It lags. It is influenced by its surroundings.

That is why the structure of a temperature measurement instrument is not just mechanical design — it is about managing heat flow.

---

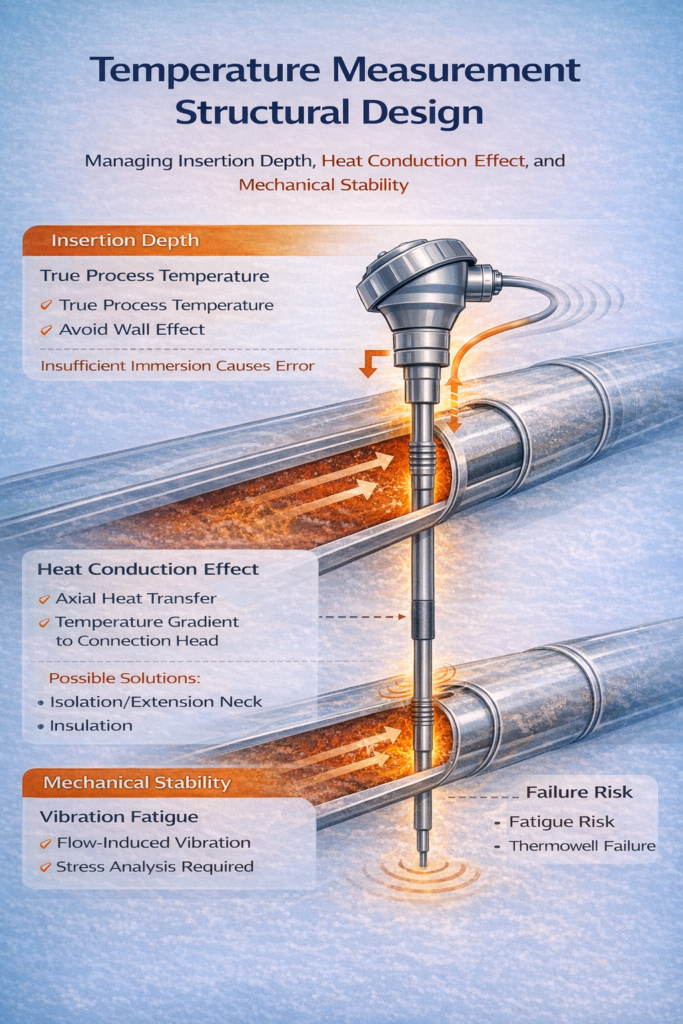

Insertion Depth: Are You Measuring the Medium or the Pipe Wall?

Unlike pressure transmitters that can be mounted on the pipe surface, a temperature sensor must physically enter the process.

If the insertion length is too short, you may actually be measuring:

• Pipe wall temperature
• Ambient influence
• Or a mixed, distorted value

A common engineering rule of thumb:

The insertion length should reach at least one-third to one-half of the pipe diameter
to minimize thermal conduction error.

This is directly related to how heat transfers within solids and fluids — a topic explained in detail in 【Temperature Measurement Principle】.

In temperature measurement, structural positioning directly affects accuracy.

---

Thermal Conduction Error: Metal Can Steal Your Measurement

Most industrial temperature instruments use metallic probes and thermowells.

The challenge?

Metal conducts heat efficiently.

If there is a significant temperature difference between the process and the surrounding environment:

• Heat can travel along the probe
• The connection head may influence readings
• Measurement bias may develop over time

That is why high-temperature applications often include:

• Extended neck designs
• Thermal isolation sections
• Remote-mounted transmitters

These are not cosmetic features.
They are structural solutions to control unwanted heat transfer.

This behavior is unique to temperature measurement and is rooted in thermal physics 【Temperature Measurement Principle】.

---

Response Time: Temperature Is a Slow Variable — But Structure Still Matters

Temperature does not change instantly like pressure spikes.

However, the probe diameter and thermowell design directly influence response time.

A thicker probe:

• Offers higher mechanical strength
• But increases thermal inertia
• Slows response time

A thinner probe:

• Responds faster
• But may introduce vibration risk

Therefore, temperature instrument design is always a balance between:

Response speed vs. mechanical stability

In industries such as power generation or chemical processing, response time can significantly affect control performance.

---

Vibration Risk: A Hidden Structural Challenge

In high-velocity flow conditions, long insertion thermowells can experience vortex-induced vibration.

Over time, this may lead to:

• Metal fatigue
• Thermowell cracking
• In extreme cases, process leakage

This is why critical temperature measurement points may require:

• Flanged connections for stronger fixation
• Shortened insertion length
• Vibration calculation during engineering design

Unlike pressure measurement, where sensors are often flush-mounted, temperature probes extend into the process — making structural integrity a key concern.

---

Structure and Measurement Principle Are Connected

Whether using:

• RTDs (Resistance Temperature Detectors), or
• Thermocouples

Both rely on temperature-induced electrical changes.

RTDs measure resistance variation.
Thermocouples generate thermoelectric voltage.

In both cases, the sensor’s electrical behavior is influenced by thermal distribution and conduction paths — concepts discussed further in 【Temperature Measurement Principle】.

The mechanical structure and the measurement principle are not separate topics.
They directly interact.

---

Structural Considerations Across Industries

Different industries emphasize different structural priorities:

• Power & Energy → High temperature stability and vibration resistance
• Chemical processing → Corrosion resistance and explosion-proof design
• Food & Beverage → Hygienic stainless steel construction
• Water & Wastewater → Easy installation and maintenance

Temperature measurement instruments are not generic metal probes.
They are engineered solutions adapted to process conditions.

---

Conclusion: A Temperature Instrument Is a Heat Management System

From an engineering perspective, the structure of a temperature measurement instrument must solve:

• Proper insertion depth
• Thermal conduction control
• Response time optimization
• Vibration resistance
• Long-term stability

It is not simply a sensor inside a metal tube.

It is a system designed to manage heat behavior inside an industrial process.

And that is what makes temperature measurement fundamentally different from pressure or level measurement.
