Radar vs Ultrasonic Level Transmitters: How to Choose

In modern industrial production storage tanks and process vessels, non-contact level measurement technology is central to achieving safe and precise control. As the two mainstream solutions, radar level gauges and ultrasonic level gauges exhibit technical differences that directly impact the reliability of measurement results. Notably, in recent years across chemical, petrochemical, and power industries, radar level gauges are gradually replacing ultrasonic models due to their superior adaptability. This article synthesizes the latest market trends, offering a comprehensive and in-depth comparative analysis—from operating principles and technical classifications to selection criteria. Leveraging practical data from the latest products by leading international brands such as VEGA, Endress+Hauser, and SIEMENS, it provides a clear and practical selection guide.

I. Working Principle: The Fundamental Difference Between Electromagnetic Waves and Sound Waves

Principle Summary: Radar level gauges leverage the inherent advantages of electromagnetic waves in complex, dynamic industrial environments. Ultrasonic level gauges, however, offer a cost-effective solution for stable, mild operating conditions.

II. Technical Classification and Product Landscape of Leading Brands

Both types of instruments have developed distinct technical branches to address varying requirements, with major brands establishing clear product matrices accordingly.

1. Radar Level Transmitter Classification and Representative Models

The technological evolution of radar level transmitters—particularly the shift toward higher frequencies (e.g., 80GHz)—is pivotal for enhancing performance and driving market substitution trends.

Type	Advantages	Typical Application Scenarios	Recommended Brands and Models (Latest Examples)

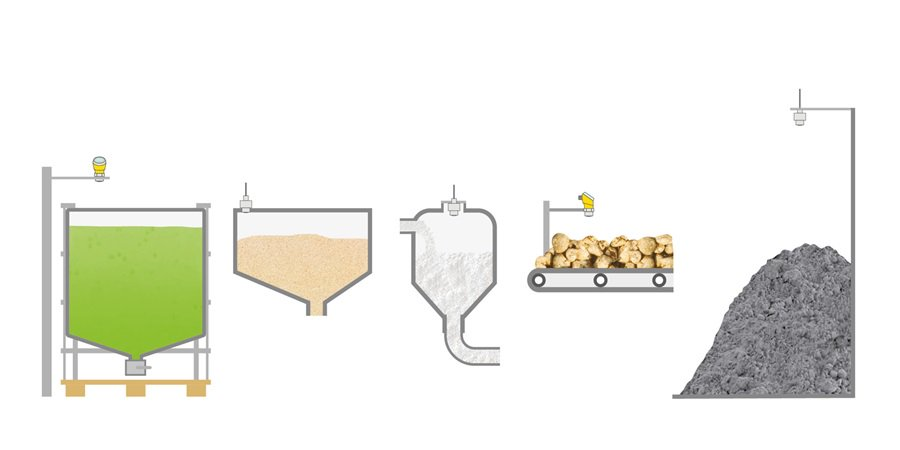

High-frequency pulse radar (e.g., 80GHz)	Ultra-narrow beam angle with exceptional interference resistance; minimal blind zone (as low as several centimeters) and flexible installation; high signal-to-noise ratio.	Highly dusty silos, complex vessels with agitators or heating pipes, small containers.	VEGA VEGAPULS 6X series (range up to 120 meters, commonly procured in the power industry). Siemens SITRANS LR250 (25GHz, suitable for small containers in high-temperature, high-pressure applications).
Guided Wave Radar (GWR/TDR)	Propagates along guided rods with concentrated energy, unaffected by foam or low-dielectric-constant media; capable of interface measurement (oil/water).	Suitable for high-foam conditions, light oils, condenser liquid levels, etc.	Endress+Hauser Levelflex FMP51 series (commonly procured in the thermal power industry). Magnetrol (now part of YOKOGAWA) Eclipse/OPTIFLEX series.
Low-Frequency Pulse Radar (6/26 GHz)	Technologically mature with relatively low cost; wide beam angle.	Suitable for large clean water and wastewater storage tanks, and liquid measurement in relatively simple operating conditions.	Classic series from various brands.

2. Classification and Representative Models of Ultrasonic Level Transmitters

Ultrasonic level transmitters still hold a place in budget-sensitive applications with straightforward operating conditions.

Type	Advantages	Typical Application Scenarios	Recommended Brands and Models (Latest Examples)
Integrated Ultrasonic	Compact design, easy installation, high cost-effectiveness.	Spare parts for open channel flow, tanks, and acid/alkali tank level measurement.	Endress+Hauser Prosonic FMU30/FMU40 series (widely used in water treatment and power industries). Siemens SITRANS Probe LU (12-meter range, accuracy up to 0.15%).
Split-type ultrasonic	The electronics unit is separated from the sensor, allowing electronic components to be installed in safer, more accessible locations for maintenance.	Ideal for corrosive environments, high-temperature conditions, or applications requiring remote display.	Endress+Hauser Prosonic FMU40 Series (feature-rich with advanced diagnostics).
Corrosion-Resistant/Explosion-Proof Type	Constructed with specialized materials and encapsulation for harsh environments.	Suitable for corrosive media or hazardous areas in chemical and oil & gas industries.	Derivative models available for all brands.

III. Core Selection Decision Matrix: Five Golden Rules

Equipment selection should not be a simple comparison of brands, but rather based on a thorough analysis of your specific operating conditions. Below is a decision-making guide that integrates the latest market trends and official brand selection logic.

Reference Factors	Prefer Radar Level Transmitters	Prefer Ultrasonic Level Transmitters	Decision Analysis and Latest Practice References
Process Environment	Characterized by high steam content, heavy dust, vacuum conditions, high pressure, or extreme temperature fluctuations.	Stable environment with atmospheric pressure, ambient temperature, and clean air.	Trend: In steam and dusty environments, radar’s stability makes it a preferred alternative. Example: Guided wave radar is widely used for condenser level measurement in power plants.
Medium Characteristics	Foam, vigorous agitation, low-dielectric-constant media, high-viscosity media.	Clear water or wastewater with smooth surfaces and no foam or minimal foam.	Trend: Radar offers more reliable detection of true liquid levels in foamy conditions due to dielectric constant differences. Example: Radar is the preferred choice for stirred conditions in chemical reactors.
Performance and Installation	Requires large range (>20 meters), high accuracy, and minimal blind zone.	Suitable for small to medium ranges (<12 meters) with less stringent blind zone requirements.	Trend: 80GHz radar achieves a blind zone of just a few centimeters, solving measurement challenges in small tanks. Example: VEGA 80GHz radar offers a range up to 120 meters, ideal for large silos.
Intelligent Requirements	Requires advanced diagnostics, waveform analysis, remote operation and maintenance, and Industry 4.0 integration.	Basic liquid level monitoring without complex diagnostics.	Trend: Modern radar systems commonly integrate intelligent algorithms and communication protocols (e.g., Bluetooth) to facilitate predictive maintenance.
Life Cycle Cost	High initial investment but virtually maintenance-free, with long-term operational reliability and a more favorable total cost of ownership (TCO).	Low initial investment but may require periodic probe cleaning, and performance is significantly affected by process conditions.	Trend: Declining unit prices and TCO advantages are the key economic drivers propelling radar technology adoption.

IV. Conclusions and Quick Selection Guide

To make rapid decisions in your project, follow this path:

Select radar level transmitters immediately if your application meets any of the following conditions:

1. The process environment involves significant steam, dust, pressure, or temperature fluctuations.

2. The medium itself exhibits foaming, agitation, low dielectric constant, or high viscosity characteristics.

3. High demands exist for measurement accuracy, reliability, maintenance-free operation, and intelligent features.

4. The application involves critical process control or requires optimizing long-term total cost of ownership (TCO).

Consider ultrasonic level transmitters if all of the following conditions are met:

1. The measurement environment is at ambient temperature and pressure with clean, stable air.

2. The medium surface is flat with no significant foaming or volatilization.

3. The measurement range is within 12 meters, and centimeter-level accuracy is sufficient.

4. The project budget is very limited, and it is suitable for non-critical routine monitoring points.

Final Recommendations:

Radar level transmitters represent “certainty and future trends for complex industrial environments.” They trade higher initial costs for long-term stability, precision, and superior overall economics, making them the preferred choice for process industry upgrades and new construction projects. Ultrasonic level transmitters embody “cost-effectiveness in mild scenarios,” serving as a pragmatic solution for many municipal, water treatment, and simple industrial applications in specific contexts.
