Yokogawa RAGK Short Rotameter
$15.00

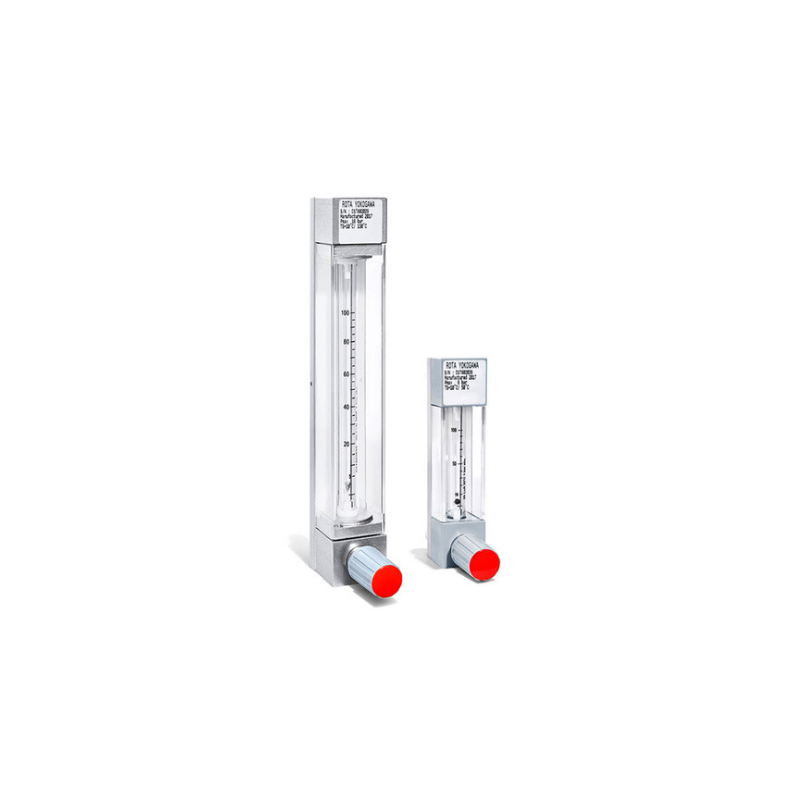

The Yokogawa RAGK Short Rotameter is a compact variable area flow meter designed for space-limited installations. It provides reliable visual indication of liquid and gas flows in industrial processes where traditional longer rotameters cannot fit. With its durable construction and clear visibility, this mini rotameter offers a practical solution for on-site flow monitoring in confined spaces.
The RAGK Short Rotameter measures liquids and gases, designed with a conical glass metering tube that has a free rotating float. The flow is indicated by the top of the float and can be read from the standard scale on the metering tube or from a connected scale.
Measurable Flow Rate:
- Water = 0.002 l/h to 600 l/h
- Air = 0.2 l/h to 6300 l/h
| Input Signals | Thermocouples (J, K, T, E, N, R, S, B, C, L, U, PLII, W5Re/W26Re), RTDs (Pt100, JPt100), DC Voltage (-50 ~ 50 mV, -5 ~ 5 V, 1 ~ 5 V), DC Current (4 ~ 20 mA) |
|---|---|
| Measurement Accuracy | ±0.05% of F.S. (Thermocouple: ±0.05% of span or ±0.5°C, whichever is greater) |
| Control Cycle | 250 ms |
| Display | High-brightness, 7-segment LED (4-digit PV, 4-digit SV) with 21-segment/41-segment bar graph |
| Setting Method | Front panel key operation |
| Control Outputs | Relay contact output (C-contact), SSR drive voltage output (12 V DC, 40 mA), Linear voltage output (0 ~ 10 V), Linear current output (4 ~ 20 mA) |
| Alarm Outputs | Up to 2 alarm outputs (relay or transistor) |
| Communication | RS-485 communication (Supports Modbus® RTU, Option) |
| Power Supply | 100 ~ 240 V AC, 24 V AC, 24 V DC |
| Operating Ambient Temperature | -10 to 55 °C |
| Storage Temperature | -25 to 65 °C |
| Relative Humidity | 10 to 90% RH (non-condensing) |
| Ingress Protection (IP) Rating | Front panel IP66, Body IP40 (horizontal mounting) |
| Mounting | Panel mount |
| Panel Cutout Dimensions (W x H) | 1/4 DIN (96 x 96 mm), 1/8 DIN (48 x 96 mm) |
| Case Depth | Typically 100 mm (depends on model) |
| Weight | Approx. 500 g (depends on model) |
