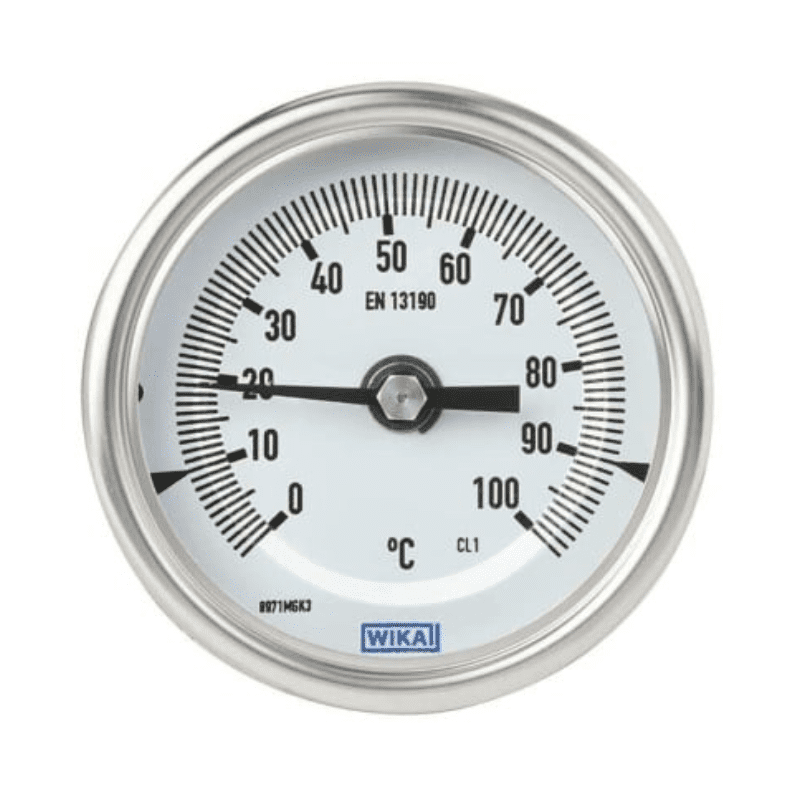

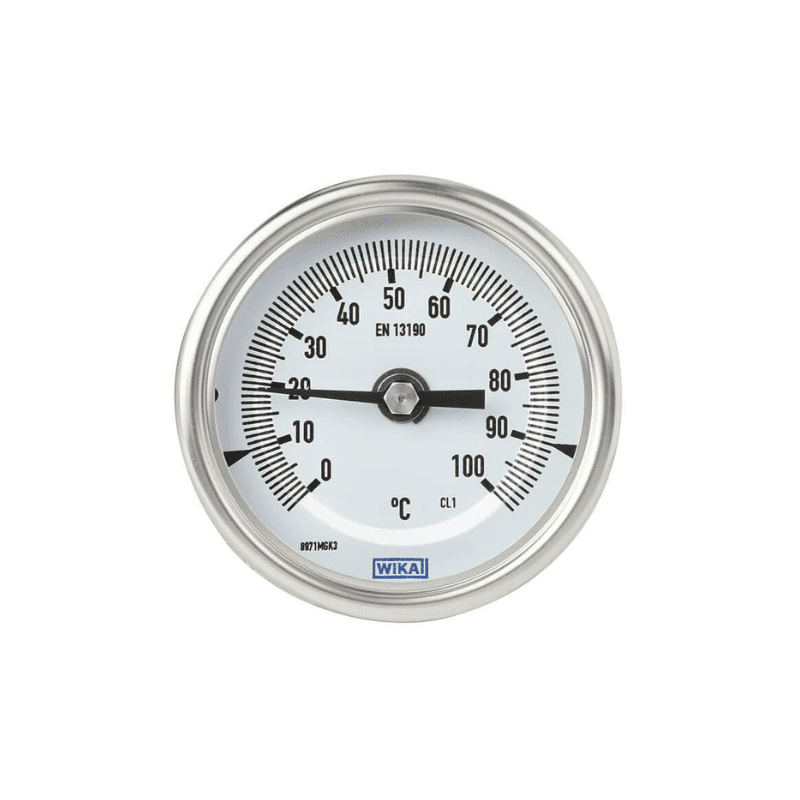

WIKA Model TG54 Bimetal thermometer
Original price was: $150.00.$120.00Current price is: $120.00.
The TG54 bimetal thermometer complies with EN 13190, meeting high demands in process industries like chemical, petrochemical, oil/gas, power, and shipbuilding. Its stainless steel construction features a robust, hermetically sealed IP65 case for harsh conditions and high vibration.
Available in four sizes for optimal space/mounting adaptation. Includes rear-accessible zero-point adjustment.
Resistant to aggressive media; optional 316L case/stem/process connection.
Applications
- General process instrumentation in the chemical and petrochemical industries, oil and gas industries, power generation and water/wastewater industries
- Temperature measurement in harsh and aggressive environments
- Suitable for applications with high vibrations
Special features
- Nominal sizes 63, 80, 100, 160 mm [2.5, 3, 4, 6″]
- Robust, hermetically sealed case
- External reset for setting the reference temperature

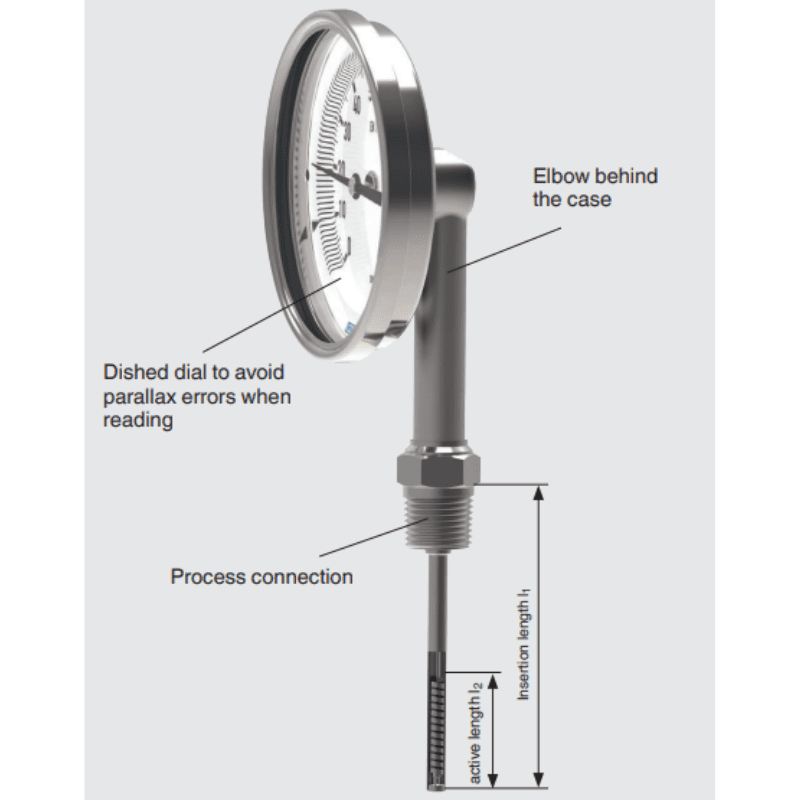

- Dished dial (anti-parallax) for ease of reading

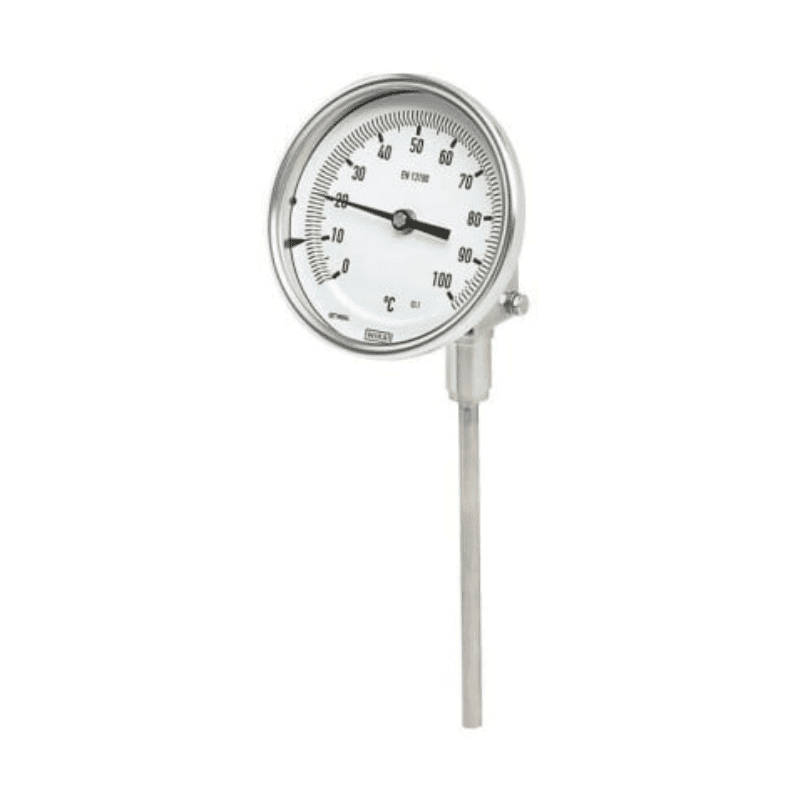

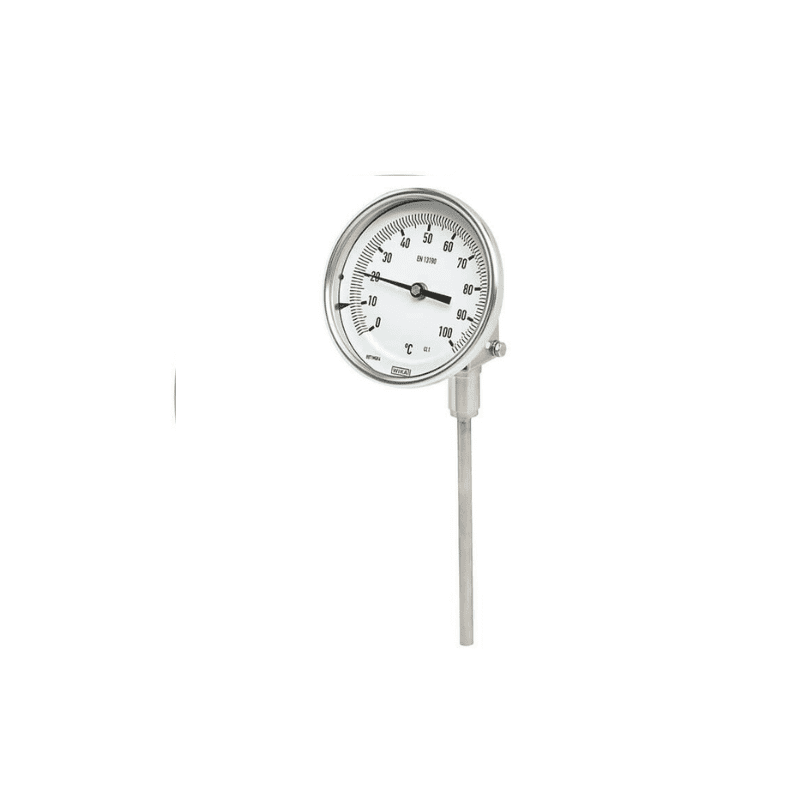

- Adjustable stem and dial version enables optimal process connection
Description
The model TG54 bimetal thermometer has been developed and is manufactured in accordance with the EN 13190 standard. The thermometer meets the high requirements of the process industries.
Especially in the chemical and petrochemical, oil and gas, power engineering and shipbuilding industries, the temperature measuring instrument manufactured from stainless steel is used successfully. The robust, hermetically sealed case with IP65 ingress protection enables use with harsh external conditions and high vibration.
With a count of four different nominal sizes, an optimal matching to the available space and mounting conditions is possible.
At an easily accessible point on the back of the case, the zero point can be easily corrected.
The model TG54 meets the high requirements for resistance against aggressive media. As an option, the case, the stem and the process connection can be made from 316L.
| Standard | EN 13190 |
|---|---|
| Nominal size | ■ 63 mm [2.5"] |
| Window | ■ Instrument glass |
| Connection location | ■ Back mount (axial) |
| Connection design | S Standard (male threaded connection) |
| Versions | ■ Standard version |
| Dampening, case filling | ■ Without |
| Material (in contact with the environment) | Case, ring |
| Type of measuring element | Bimetal coil |

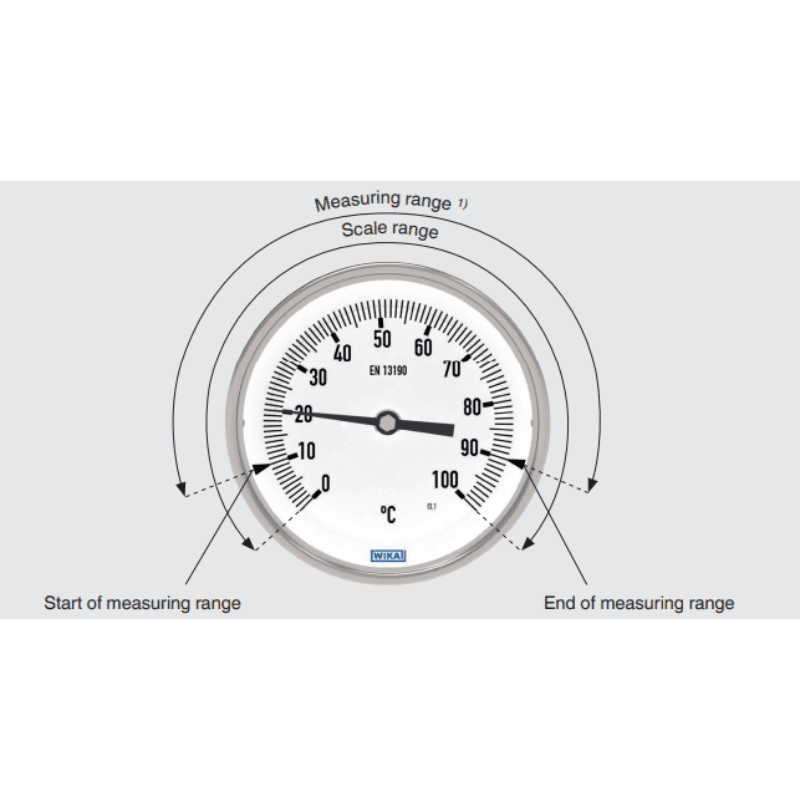

| Nominal effective range | Continuous load (1 year) Measuring range (EN 13190) |
| Accuracy specifications | Accuracy: Class 1 per EN 13190 |
| Unit | ■ °C |
| Pointer | Version: Adjustable pointer |
| Thread size | ■ Plain, without thread |
| Material (wetted) | ■ Stainless steel 304 |
| Stem | Diameter |
