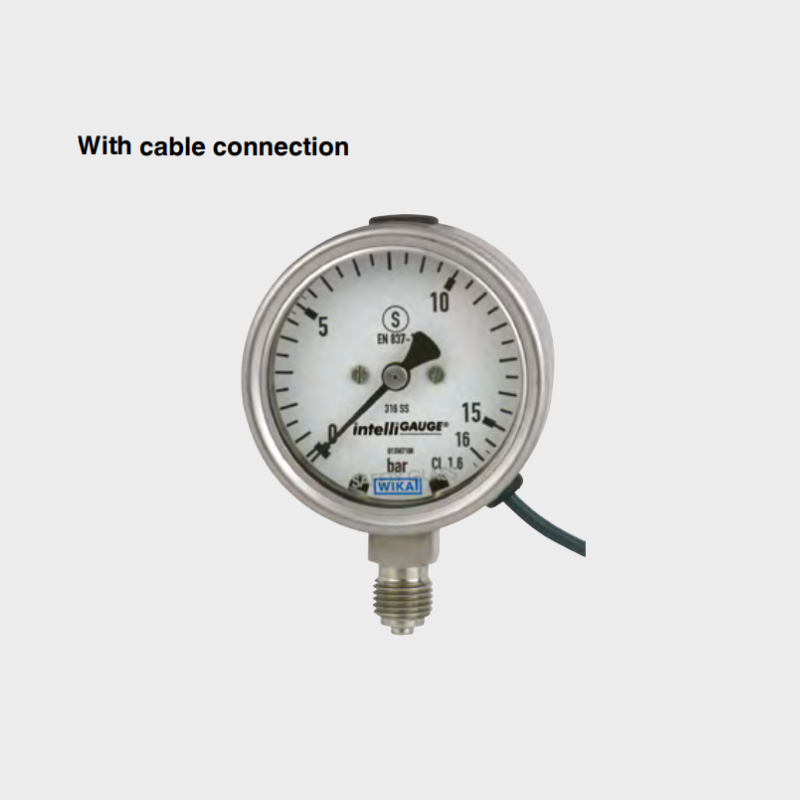

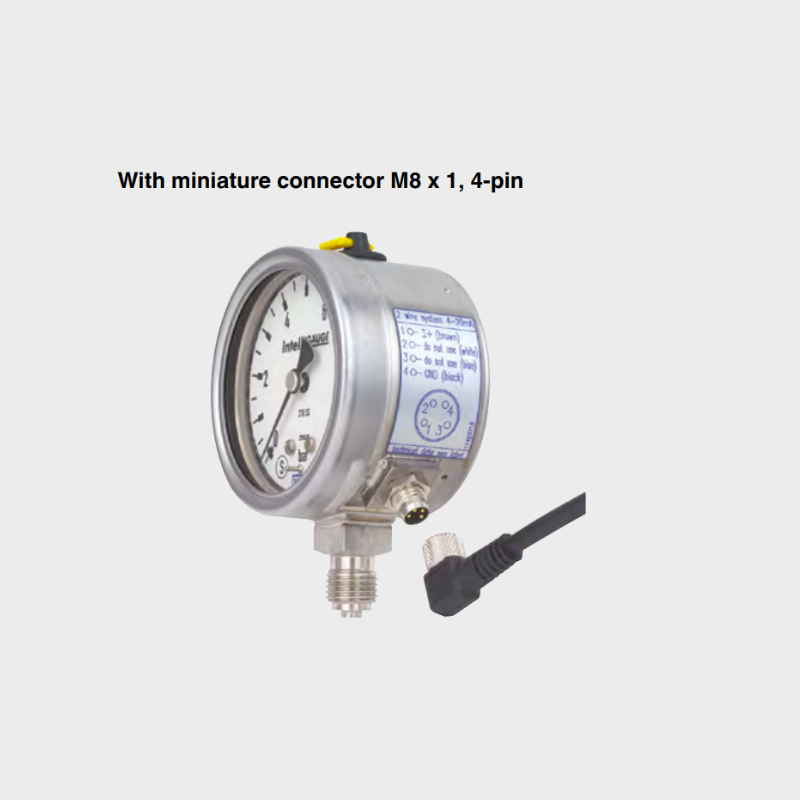

WIKA Model PGT23.063 Bourdon tube pressure gauge with output signal
$120.00
The WIKA PGT23.063 is a high-performance Bourdon tube pressure gauge with integrated output signal capabilities. Designed for precise and reliable pressure measurement in industrial applications, it combines traditional mechanical gauge functionality with the convenience of electronic signal transmission.
Typical Applications:
• Pressure measurement in hydraulic and pneumatic systems
• Industrial automation processes
• HVAC and refrigeration systems
• Water and wastewater treatment plants
• Energy and power generation monitoring
Not Recommended For:
• Applications requiring extreme precision at very low pressures
• Hazardous environments without appropriate protective measures (e.g., ATEX zones)
Selection Notes:
• Ideal for applications where mechanical pressure measurement needs to be supplemented with an electrical output signal
• Suitable for installation in remote monitoring systems with output options such as 4-20mA or 0-10V
• Can be used in combination with control systems to trigger actions based on measured pressure values
• Designed for a wide range of pressure conditions, including both high and low-pressure applications
Why Choose the WIKA PGT23.063 Bourdon Tube Pressure Gauge with Output Signal
• Combines mechanical pressure measurement with an electronic output for seamless integration into modern systems
• High reliability with robust design, even in harsh industrial environments
• Wide operating pressure range, suitable for various industrial applications
• Available with different output signal types (4-20mA, 0-10V) for flexibility in system integration
• Low maintenance and long service life, reducing downtime and operational costs
• Cost-effective solution for both local indication and remote monitoring
FAQ
Q: Can I use the PGT23.063 with my existing control system?
A: Yes, the PGT23.063 can be easily integrated with your existing system using standard output signals like 4-20mA or 0-10V.
Q: Does the PGT23.063 require regular calibration?
A: Yes, like all precision instruments, it is recommended to regularly calibrate the PGT23.063 to ensure continued accuracy.
Q: What pressure ranges are available for the PGT23.063?
A: The PGT23.063 comes in various pressure ranges to suit a broad range of industrial applications. Please contact us for specific pressure range options.
Q: Is the PGT23.063 suitable for hazardous environments?
A: The PGT23.063 is designed for general industrial applications but should not be used in hazardous locations without proper protective equipment (e.g., ATEX zones).
| Standard | ■ EN 837-1 |
|---|---|
| Further version | ■ Oil- and grease-free |

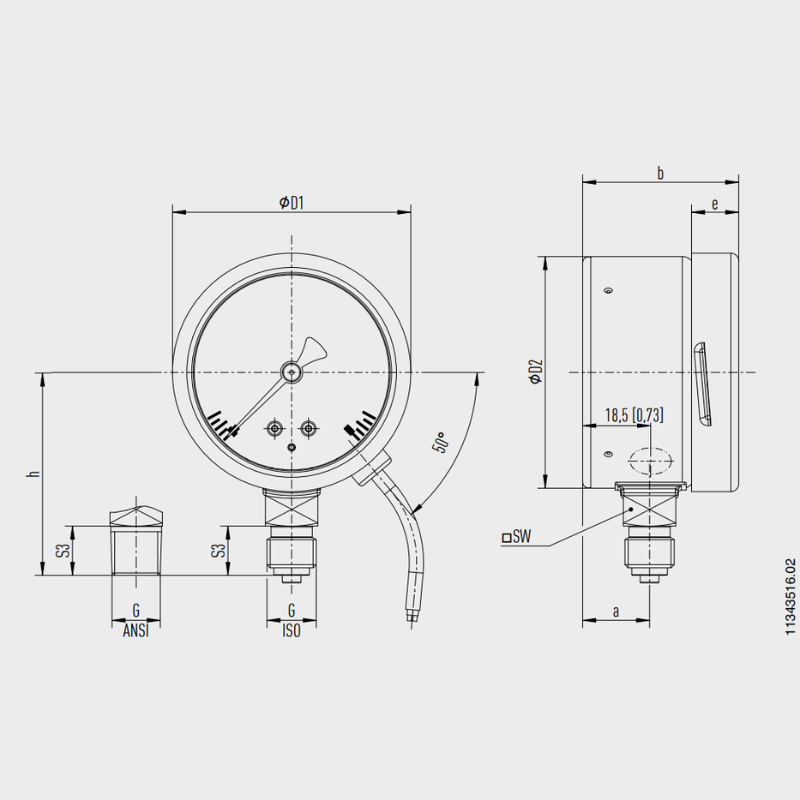

| Nominal size (NS) | Ø 63 mm [2 ½"] |
| Connection location | Lower mount |
| Window | ■ Polycarbonate |
| Case design | Safety level “S3” per EN 837-1 |
| Case material | Stainless steel 1.4301 (304) |
| Ring | Bayonet ring, stainless steel |
| Mounting | ■ Without |
| Case filling | ■ Without |
| Movement | Stainless steel |
| Type of measuring element | Bourdon tube, C-type or helical type |
| Leak tightness | Helium tested, leakage rate: < 1∙10-6 mbar l/s |
| Accuracy of mechanical display | EN 837-1: Class 1.6 |
| Accuracy of output signal | Accuracy: ±1.6 % of measuring span |
| Temperature error | On deviation from the reference conditions at the measuring system: |
| Ambient temperature | +20 °C [68 °F] |
