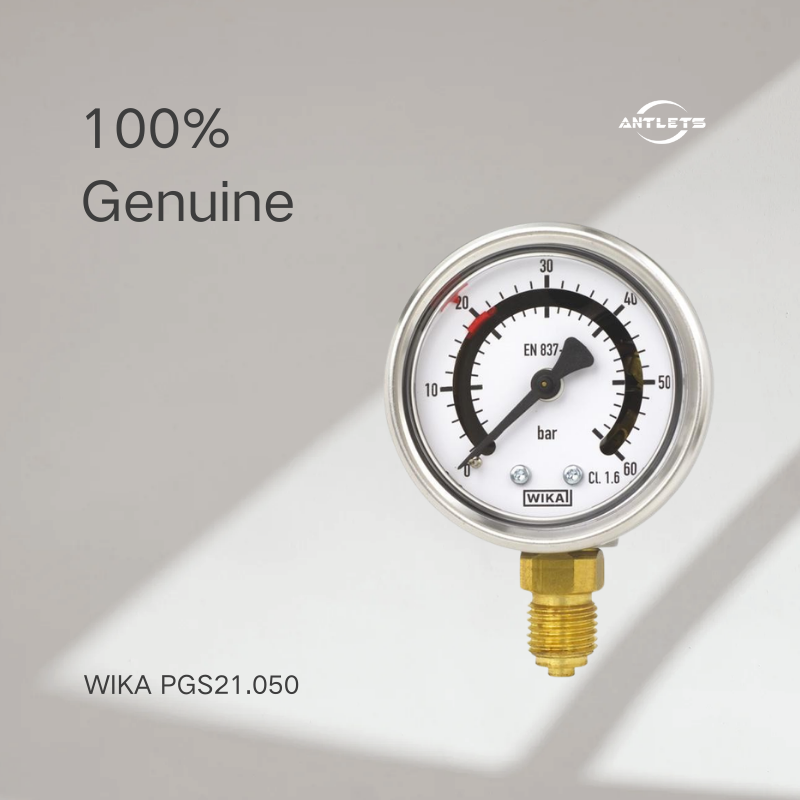

WIKA Model PGS21 Bourdon tube pressure gauge with switch contacts
$120.00
The WIKA PGS21 is a Bourdon tube pressure gauge with integrated switch contacts, designed for pressure monitoring and control in industrial applications. It combines the reliability of traditional mechanical pressure measurement with the ability to trigger external devices or alarms when specific pressure thresholds are reached.
Typical Applications:
• Pressure monitoring and control in hydraulic and pneumatic systems
• Industrial processes requiring pressure-based switching actions
• HVAC and refrigeration systems
• Water and wastewater treatment plants
• Pump protection and safety monitoring
Not Recommended For:
• Applications requiring continuous data transmission or remote monitoring
• Hazardous environments without appropriate protective measures (e.g., ATEX)
Selection Notes:
• Ideal for applications where pressure monitoring is required with the added functionality of switch contacts for process control
• Available with adjustable switch points to set when the switch contacts activate (e.g., alarm, shutdown, or valve control)
• Suitable for both low and high-pressure ranges, depending on your application needs
• Available in various configurations for easy integration into control and safety systems
Why Choose the WIKA PGS21 Bourdon Tube Pressure Gauge with Switch Contacts
• Dual functionality: provides both pressure indication and switch contact output for control and safety actions
• Adjustable switch points allow for flexible control, such as triggering alarms, activating pumps, or shutting down processes
• Long-lasting, robust Bourdon tube technology for accurate and stable pressure measurement
• Low maintenance and easy calibration, reducing downtime and maintenance costs
• Suitable for a wide range of industrial applications, including hydraulic, pneumatic, and chemical processes
• Can be used for both safety and process control in critical applications, such as pump protection or overpressure shutdown
FAQ
Q: What are the switch contact types available with the PGS21?
A: The PGS21 is available with single or double switch contacts, depending on your application’s needs. These can be configured to trigger actions like alarms or process control.
Q: How do I adjust the switch points on the PGS21?
A: The switch points on the PGS21 can be easily adjusted using a dial on the back of the gauge, providing flexibility in pressure control.
Q: Is the PGS21 suitable for hazardous environments?
A: The PGS21 is designed for general industrial use. For hazardous environments, please ensure the appropriate protective measures are in place (e.g., ATEX certification).
Q: Can the PGS21 be integrated into existing control systems?
A: Yes, the PGS21 is designed for easy integration into existing control systems, with switch contacts that can trigger alarms, shutdowns, or other control devices.
| Bourdon tube pressure gauges standard | EN 837-1 |
|---|---|
| Pressure gauges with electrical limit contact devices standara | DIN 16085 |
| Nominal size (NS) | ■ Ø 40 mm [1 ½"] |
| Window | Polycarbonate (PC) |
| Movement | Copper alloy |
| Type of measuring element | Bourdon tube, C-type or helical type |
| Materials (wetted) | Copper alloy |
| Leak tightness | Helium tested, leakage rate: < 5∙10-5 mbar l/s |
| Accuracy class | ■ 2.5 |
| Temperature error | On deviation from the reference conditions at the measuring system: ≤ ±0.4 %/10 K of |
| Ambient temperature | +20 °C |
