WIKA Model A48 Bimetal thermometer
$100.00
The WIKA Model A48 is a specialized bimetal thermometer designed specifically for air-conditioning and refrigeration systems. This compact instrument provides reliable temperature measurement in HVAC-R applications, featuring a durable construction that withstands typical environmental conditions in climate control systems. Utilizing proven bimetal technology, it delivers accurate readings without requiring external power. The thermometer’s space-saving design and easy installation make it ideal for chillers, air handlers, refrigeration units, and ventilation systems. With maintenance-free operation and clear dial display, the A48 ensures effective temperature monitoring for optimal system performance and energy efficiency in building services applications.
Applications
- Air-conditioning and refrigeration systems
- Ventilation systems
Special features
- Accuracy class 2
- Nominal size 63, 80, 100 and 160
- Scale ranges from -30 … +50 °C to 0 … 120 °C
Description
The model A48 bimetal thermometer has been specifically developed for use in air-conditioning and refrigeration technology for measuring the temperature in air ducts.

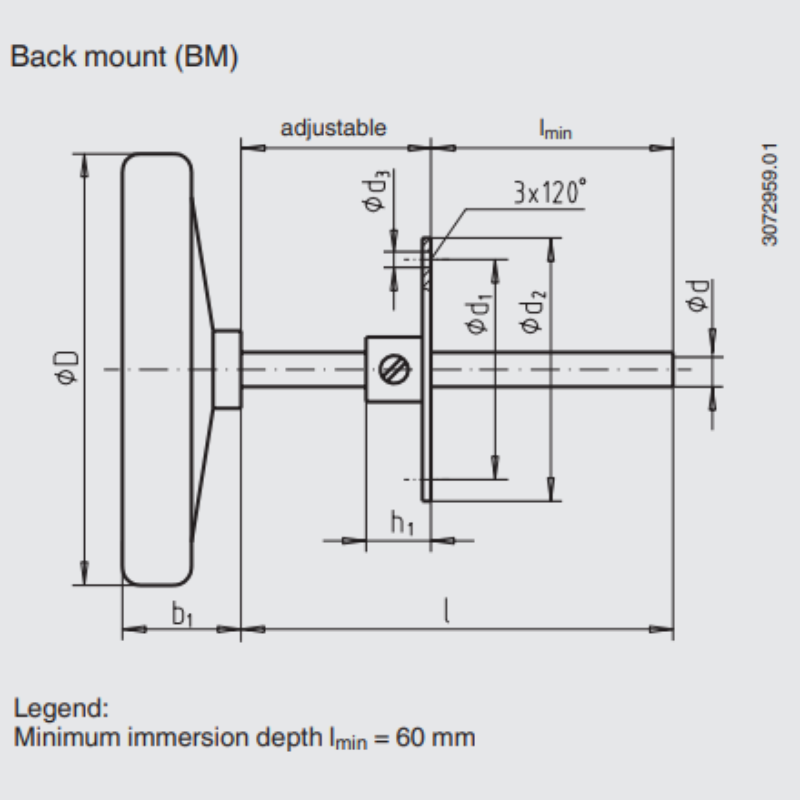

Due to the flexibly adjustable flange, the thermometer can be adapted to all standard wall thicknesses of pipe insulations.
| Measuring element | Bimetal coil |
|---|---|
| Nominal size in mm | 63, 80, 100 and 160 |
| Connection | Flange, steel zinc plated, adjustable on stem |
| Stem | Insertion length l = 160, 200 and 300 mm |
| Accuracy class | Class 2 per EN 13190 |
| Case | Aluminium |
| Dial | Aluminium, white, black lettering |
| Pointer | Aluminium, black |
| Window | Acrylic plastic |
| Zero adjustment | At bottom of stem |
Related products
-

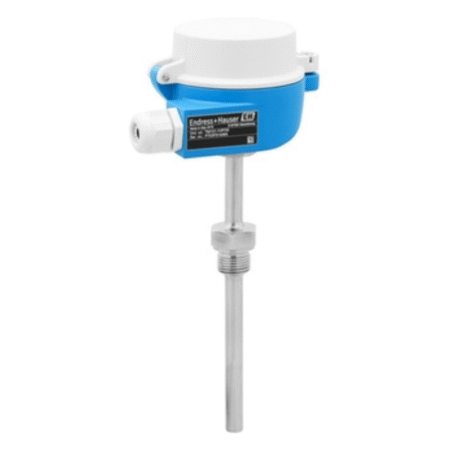

Temperature MeasurementEndress+Hauser iTHERM ModuLine TM131 Industrial modular thermometer
