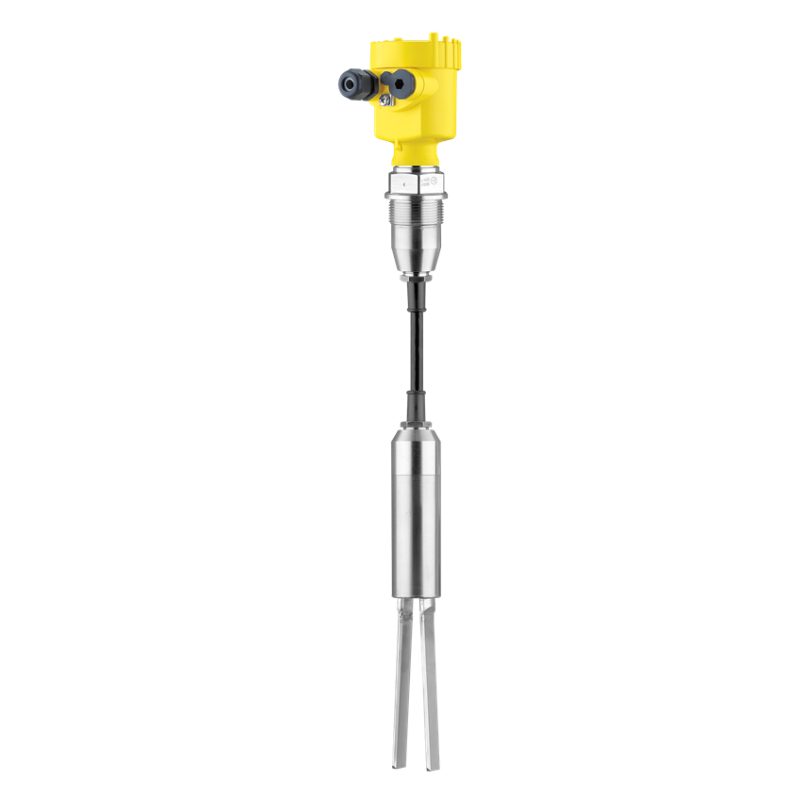

VEGA WAVE62 VEGAWAVE 62 Vibrating level switch with suspension cable for powders

$800.00

The VEGAWAVE 62 vibrating level switch features an innovative suspension cable design specifically for powder level detection in deep silos and large containers. This unique configuration allows for flexible installation and reliable monitoring at virtually any depth, solving the challenge of level detection in extra-tall storage vessels. The specially designed vibrating paddle at the cable end provides sensitive detection of fine powders and dust-like materials, effectively preventing both overfilling and empty conditions. Its continuous vibration ensures self-cleaning operation, preventing material buildup even with cohesive powders. Ideal for cement, flour, fly ash, and other powdered materials, the VEGAWAVE 62 offers unparalleled versatility for challenging powder handling applications. With easy installation and minimal maintenance requirements, this robust switch delivers cost-effective level control where conventional rigid probes cannot be used, ensuring process safety and operational efficiency in your most demanding powder storage facilities.

VEGAWAVE-62

Application area

The position of the switching point can be up to 80 m away from the installation site. The tuning fork design is very robust and unaffected by buildup. Grain size: max. 10 mm
The VEGAWAVE 62 is a level switch for universal use in powders and fine-grained bulk solids. The level switch detects reliably and robust the min. or max. limit level. The tuning fork is ideal for use either in adhesive and abrasive products as well as in bulk solids with very low density. The position of the switching point is determined through the length of the suspension cable.

Your benefit

  • Low costs for maintenance through robust design
  • Minimum time and cost expenditure thanks to simple setup without medium
  • Reliable function through product-independent switching point
Measuring range - Distance

– [Meter – Foot]

Process temperature

-40 … 150 °C [°C – °F]

Process pressure

-1 … 6 bar [Bar – kPa – psi]

Version

Detection of solids in water
Suspension cable

Materials, wetted parts

316L
FEP
PUR

Threaded connection

≥ G1½, ≥ 1½ NPT

Flange connection

≥ DN50, ≥ 2"

Seal material

CR, CSM

Protection rating

IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)

Output

Relay (DPDT)
Contactless electronic switch
Transistor (NPN/PNP)
Two-wire
NAMUR

Ambient temperature

-40 … 80 °C

Scope

ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
UKR Sepro / Ukraine
CCOE / India
KTL Korea

Explosion protection

Intrinsic safety "i"

SIL qualification

SIL2

Indication

Pluggable display module PLICSLED
