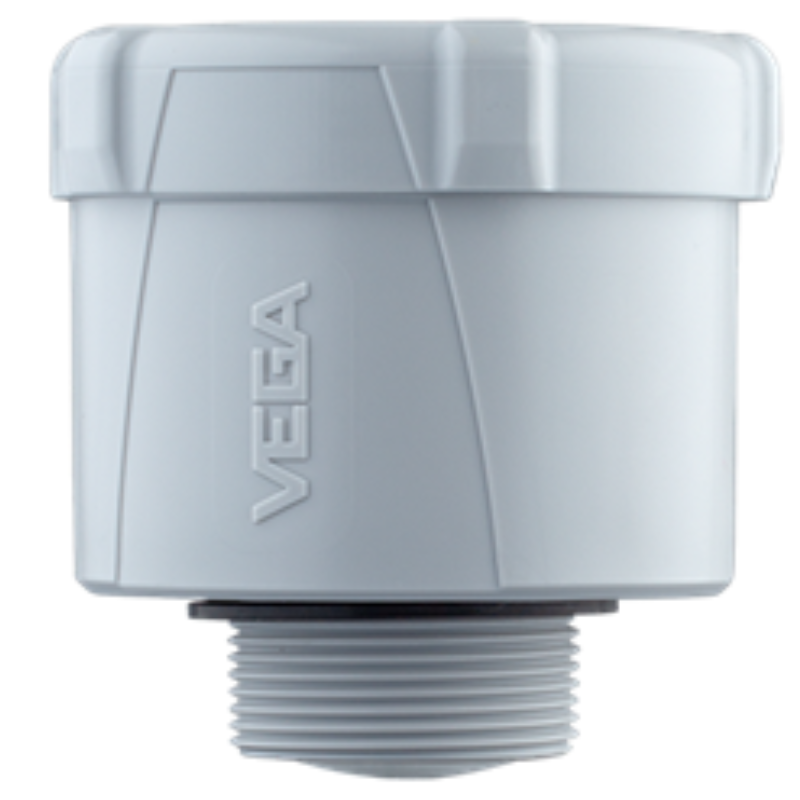

VEGAPULS Air 41
VEGAPULS Air 41

VEGAPULS Air 42 Autarkic, continuous level measurement for liquids and bulk solids

$700.00

autarkic-sensor-with-measured-value-transmission-by-radio-technology

Document

Product catalog

Product information

Specification sheet

Operating instructions

Category: Tag: Brand:

VEGAPULS Air 42

Autarkic, continuous level measurement for liquids and bulk solids

Application area

NB-IoT/CAT-M1, LoRa, measuring range up to 30m, accuracy +/-2mm
VEGAPULS Air 42 is the ideal sensor for all autarkic applications with bulk solids and liquids. It is particularly suitable for level measurement in mobile bulk solids silos for dry mortar, concrete and plasters as well as in liquid tanks of all kinds. VEGAPULS Air 42 offers an economical solution through simple and reliable mounting without additional power supply.

Your benefit

  • Exact measurement results independent of medium, process and environmental conditions
  • Maintenance-free operation due to non-contact 80 GHz radar technology
  • Easy installation thanks to autarkic voltage supply and radio technology





Measuring range - Distance

30 m [Meter – Foot]
Process temperature

-20 … 60 °C [°C – °F]
Process pressure

-1 … 2 bar [Bar – kPa – psi]
Accuracy

± 2 mm
Frequency

80 GHz
Beam angle

4°
Materials, wetted parts

PVDF
Flange connection

≥ DN80
Seal material

EPDM
FKM
Housing material

Plastic
Protection rating

IP66/IP68 (0.2 bar), Type 6X
Output

NB-IoT (LTE-Cat-NB1), LTE-M (LTECAT-M1), LoRa WAN
Ambient temperature

-20 … 60 °C
