VEGAPULS 42-1
VEGAPULS 42-3
VEGAPULS 42-2
VEGAPULS 42-1

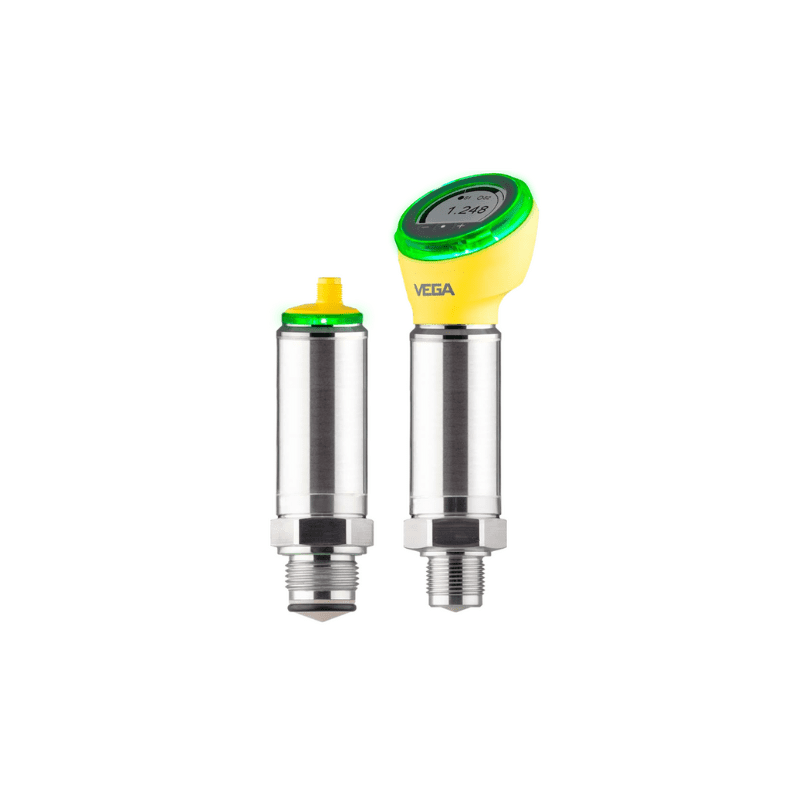

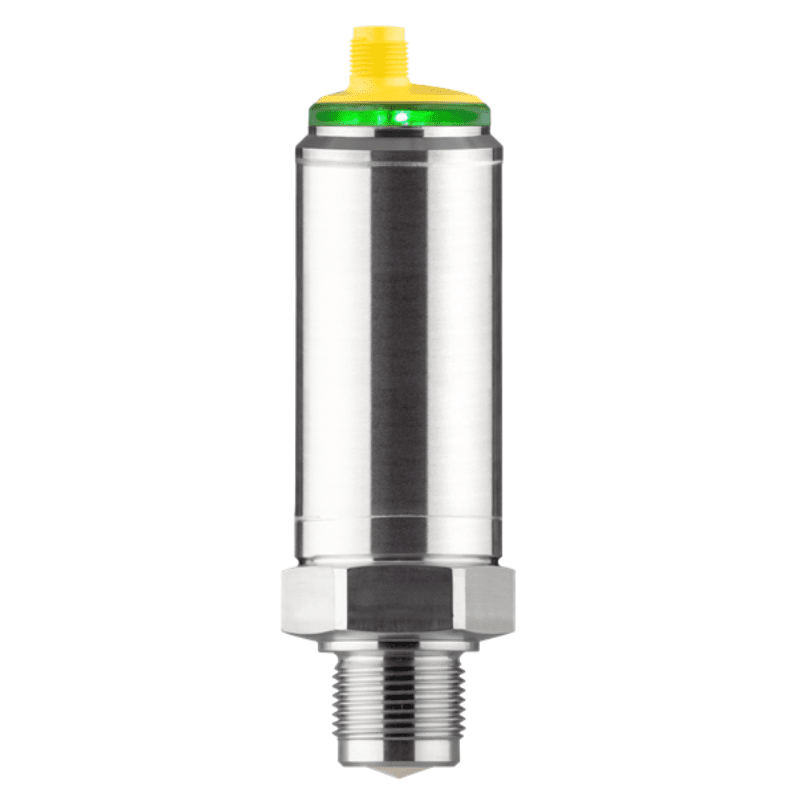

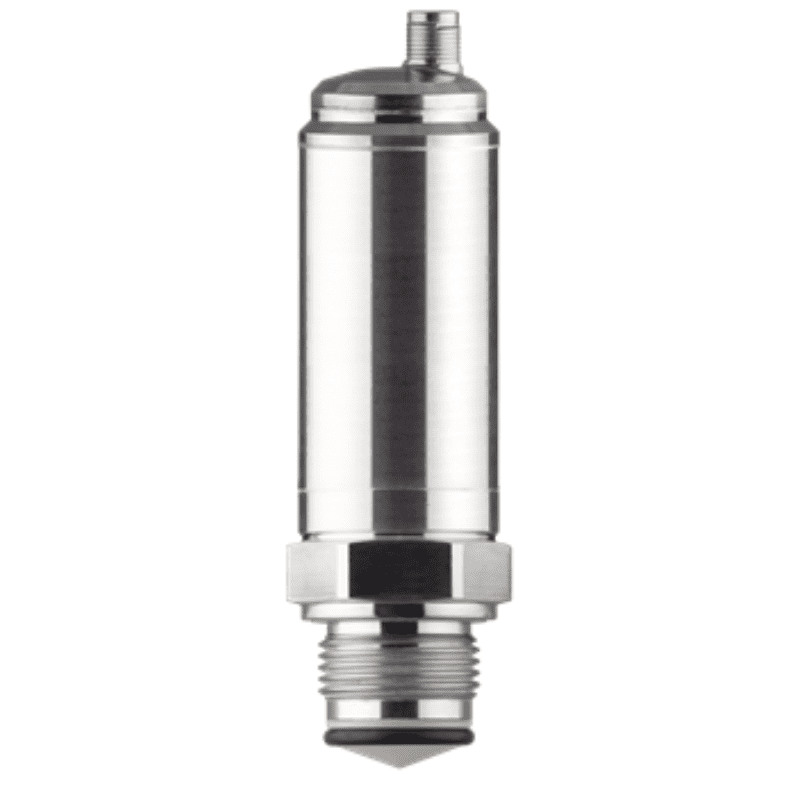

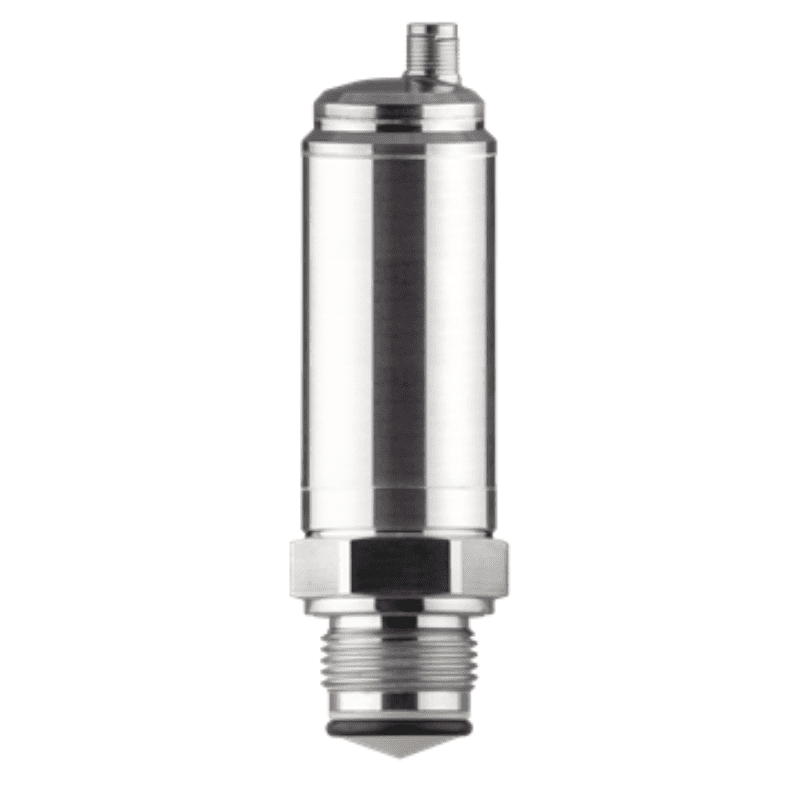

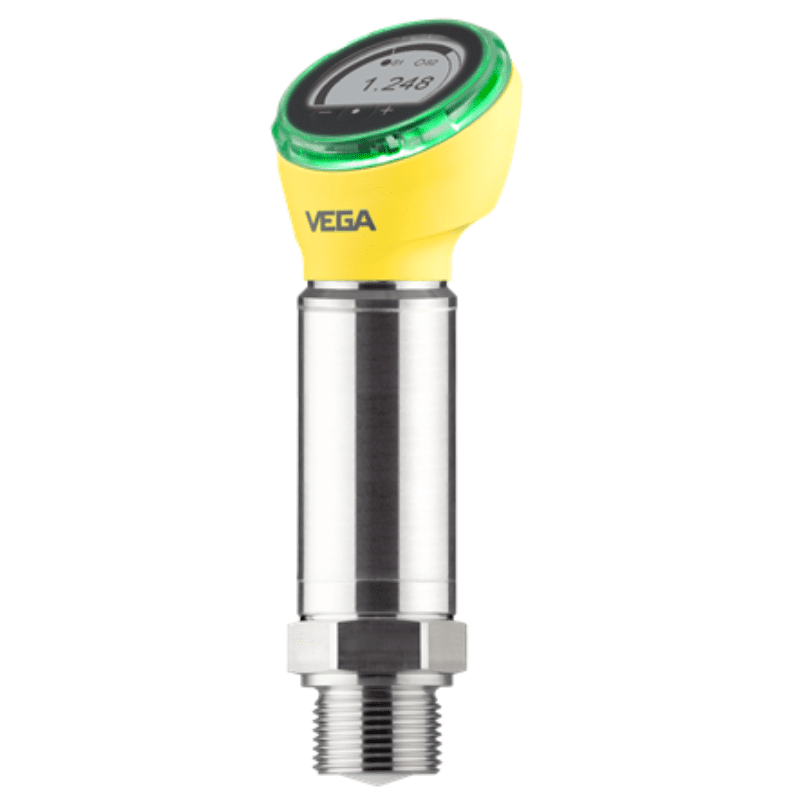

VEGAPULS 42 Compact radar sensor for continuous level measurement

Original price was: $1,900.00.Current price is: $1,700.00.

For simple to moderate measurement tasks in factory automation

Category: Tag: Brand:

Application area

From ¾” thread, universal connection G1″ for hygiene adapter, three-wire: IO-Link, PNP/NPN, 4 … 20 mA (active), hygiene approval, coloured 360° status display
VEGAPULS 42 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple to moderate applications. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock-keeping and perfectly fulfils the requirements for hygienic processes in the food, beverage and pharmaceutical industries. With IO-Link, it offers continuous digital data transmission.

Your benefit

  • Coloured 360° status display, adjustable
  • Easy integration into control systems through IO-Link communication
  • Maintenance-free operation due to non-contact 80 GHz radar technology
Measuring range - Distance

15 m [Meter – Foot]
Process temperature

-40 … 130 °C [°C – °F]
Process pressure

-1 … 16 bar [Bar – kPa – psi]
Accuracy

± 2 mm
Frequency

80 GHz
Beam angle

≥ 12°
Materials, wetted parts

PTFE
316L
PEEK
Threaded connection

≥ G¾, ≥ ¾ NPT
Hygenic fittings

Universal connection G1" for hygiene adapter
Seal material

EPDM
FKM
Housing material

Plastic
Stainless steel
Protection rating

IP66/IP67
IP66/IP67/IP69
Output

Three-wire (PNP/NPN, 4 … 20 mA)
IO-Link
Ambient temperature

-40 … 70 °C
