VEGASON 61

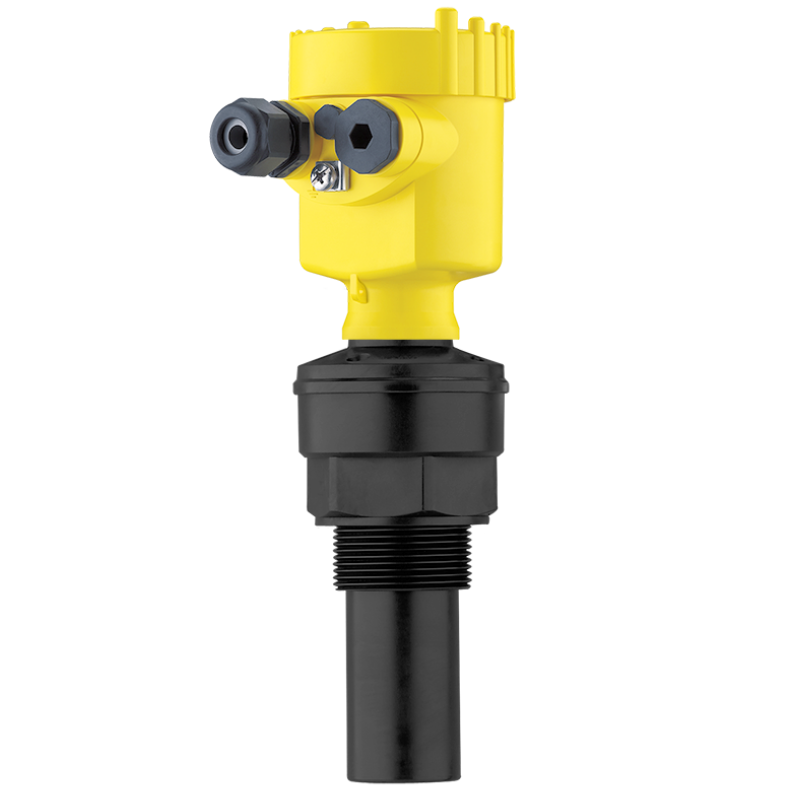

VEGASON 61 Ultrasonic sensor for continuous level measurement

$900.00

Measures liquids up to 5 m and bulk solids up to 2 m away

Product catalog Ultrasonic

Product information VEGASON 61,62,63

Specification sheet VEGASON 61

Operating instructions VEGASON 61

Category: Tags: , Brand:

VEGASON 61 Ultrasonic sensor for continuous level measurement

Application area

Extensive selection of electronics, housings, approvals. Process fittings: G1½ or 1½ NPT
The VEGASON 61 is an ultrasonic sensor for continuous level measurement of liquids or bulk solids. Typical applications are the measurement of liquids in storage tanks or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or open containers. The non-contact measuring principle is independent of product features and allows a setup without medium.

For this instrument, new radar sensors with connection housing VEGAPULS 11, 21 or 31, or radar sensors with fixed connected cable VEGAPULS C 11, C 21, C 22 or C 23 are available as alternative.

Your benefit

  • Price-favourable solution for simple applications
  • Maintenance-free operation through non-contact measuring principle
  • Reliable measurement independent of product features
Measuring range - Distance

5 m [Meter – Foot]
Process temperature

-40 … 80 °C [°C – °F]
Process pressure

-0.2 … 2 bar [Bar – kPa – psi]
Accuracy

± 4 mm
Materials, wetted parts

PVDF
Threaded connection

≥ G1½, ≥ 1½ NPT
Hygenic fittings

Clamp ≥ 2", DN50 – DIN32676, ISO2852
Clamp ≥ 3", DN65 – DIN32676, ISO2852
Clamp ≥ 3½" , DN80 – DIN32676, ISO2852
Clamp ≥ 4" , DN100 – DIN32676, ISO2852
Slotted nut ≥ 3", DN65 – DIN 11851
Slotted nut ≥ 3½", ≥ DN80 – DIN 11851
Slotted nut ≥ 4", ≥ DN100 – DIN 11851
Seal material

EPDM
FKM
Housing material

Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
Protection rating

IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
Output

Profibus PA
Foundation Fieldbus
Two-wire: 4 … 20 mA/HART
Four-wire: 4 … 20 mA/HART
Ambient temperature

-40 … 80 °C
