VEGAFLEX 83
VEGAFLEX 83
VEGAFLEX 83

VEGAFLEX 83 TDR sensor for continuous level and interface measurement of liquids

$1,600.00

For aggressive media or extremely high hygienic requirements

Product catalog-VEGAFLEX 83

Product information-VEGAFLEX 81, 83,86

Specification sheet-VEGAFLEX 83

Operating instructions VEGAFLEX 83



Category: Tags: , Brand:

VEGAFLEX 83

TDR sensor for continuous level and interface measurement of liquids

Application area

PFA coated or polished sensor. Even in applications with steam, buildup, foam or condensation, the sensor delivers precise and reliable readings.
The VEGAFLEX 83 level sensor measures maintenance-free agressive liquids or liquid media with highest hygienic requirements. Even in applications with vapour, buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. The VEGAFLEX 83 is the economical and ideal solution for your application.

Your benefit

  • The gap-free hygienic design ensures simple and reliable cleanability
  • The maintenance-free operation increases the plant efficiency
  • The guided adjustment enables a simple, time-saving and reliable setup
Measuring range - Distance

32 m [Meter – Foot]
Process temperature

-40 … 150 °C [°C – °F]
Process pressure

-1 … 16 bar [Bar – kPa – psi]
Accuracy

± 2 mm
Version

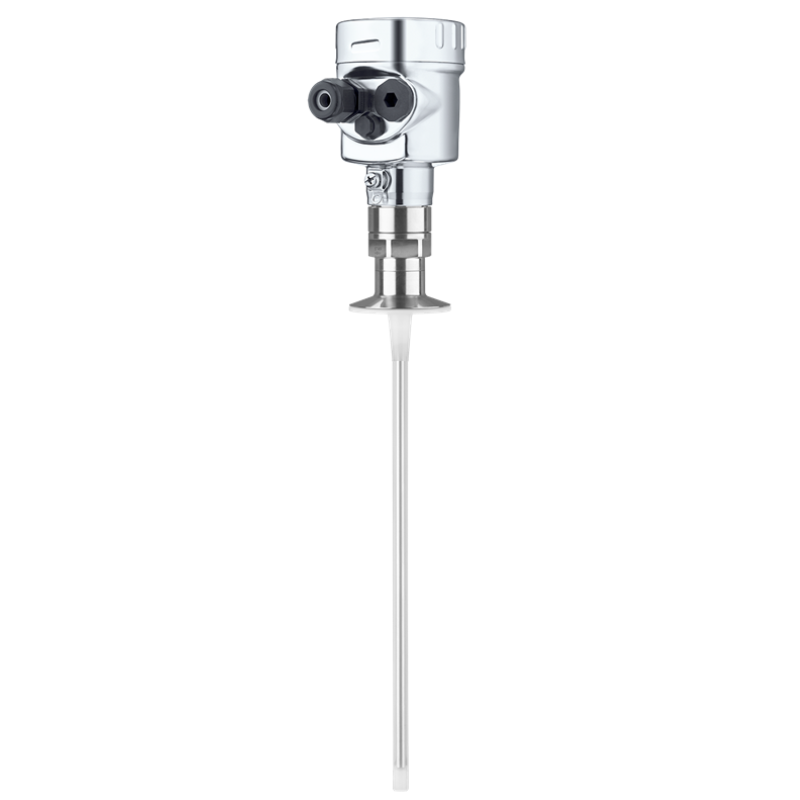

Rod ø 10 mm, PFA-coated

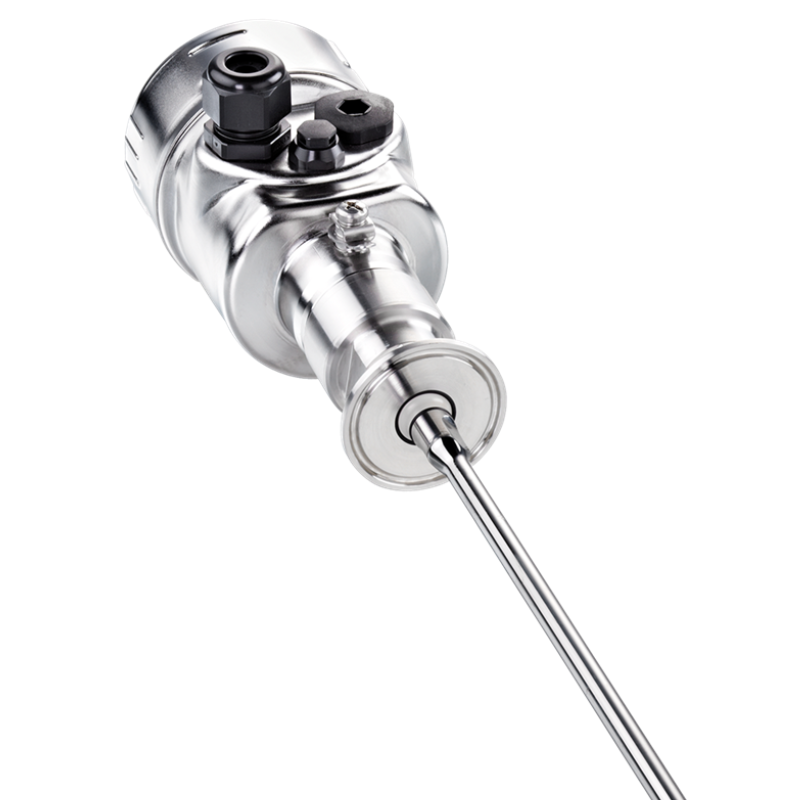

Exchangeable rod ø 8 mm, polished
Exchangeable rod ø 8 mm, electropolished
Exchangeable rod ø 8 mm, electropolished, can be autoclaved
Cable ø 4 mm with gravity weight, PFA-coated
Materials, wetted parts

PFA
316L
TFM-PTFE
Flange connection

≥ DN25, ≥ 1"
Hygenic fittings

Clamp ≥ 2", DN50 – DIN32676, ISO2852
Clamp ≥ 3", DN65 – DIN32676, ISO2852
Slotted nut ≥ 1½", ≥ DN40 – DIN 11851
Slotted nut ≥ 2", DN50 – DIN 11851
Varivent ≥ DN25
Hygienice flange connection ≥ DN50 DIN11864-2
Swagelok VCR screwing
Hygienic collar clamp ≥ DN33 – DIN 11864-3
Safety ingold
Seal material

EPDM
FKM
FEPM
Housing material

Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
Protection rating

IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
Output

Profibus PA
Foundation Fieldbus
Two-wire: 4 … 20 mA/HART
Modbus
Four-wire: 4 … 20 mA/HART
Ambient temperature

-40 … 80 °C
