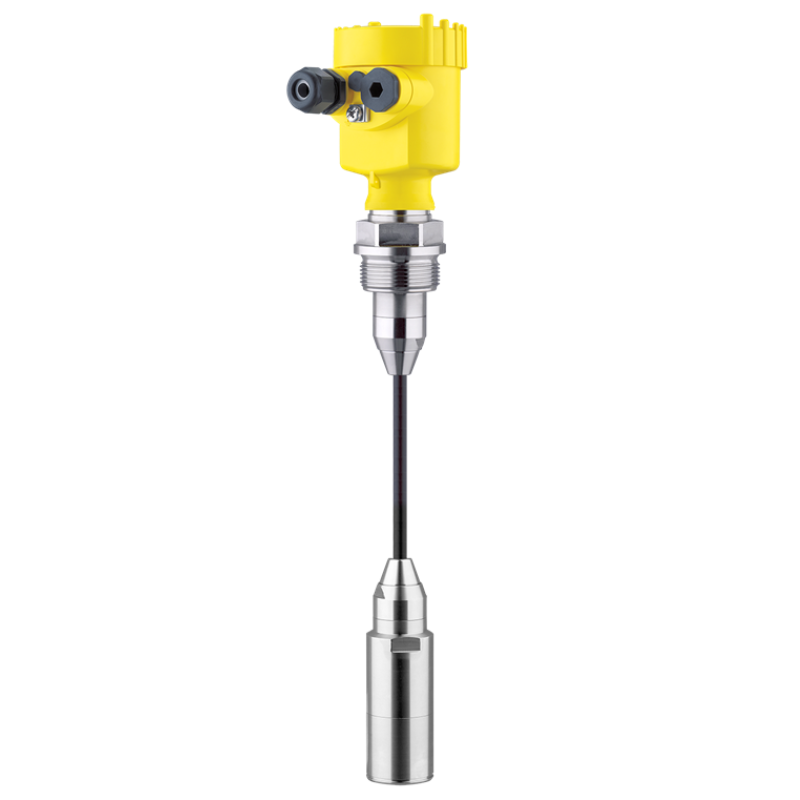

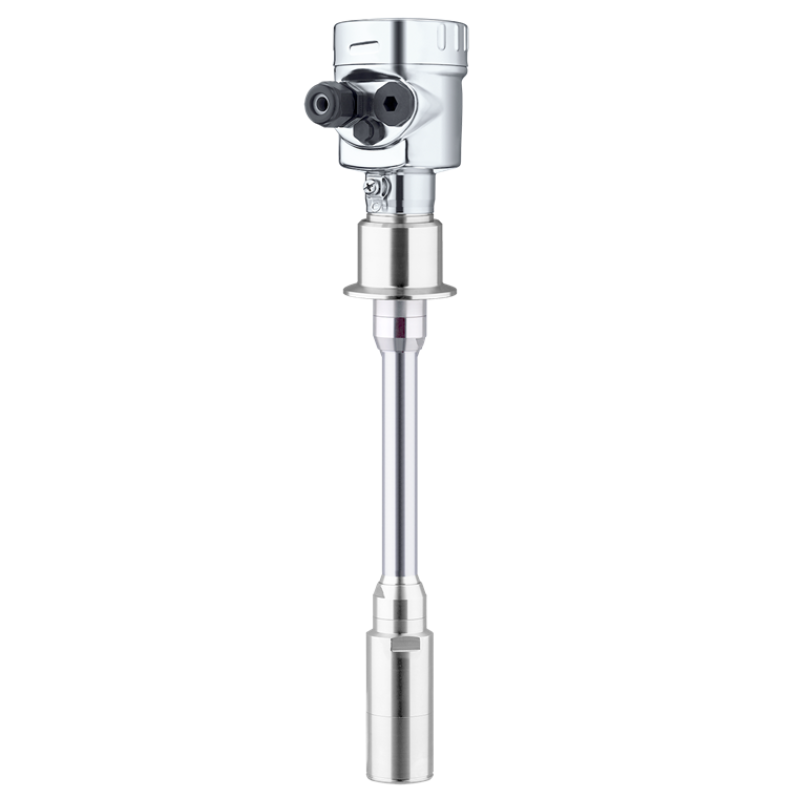

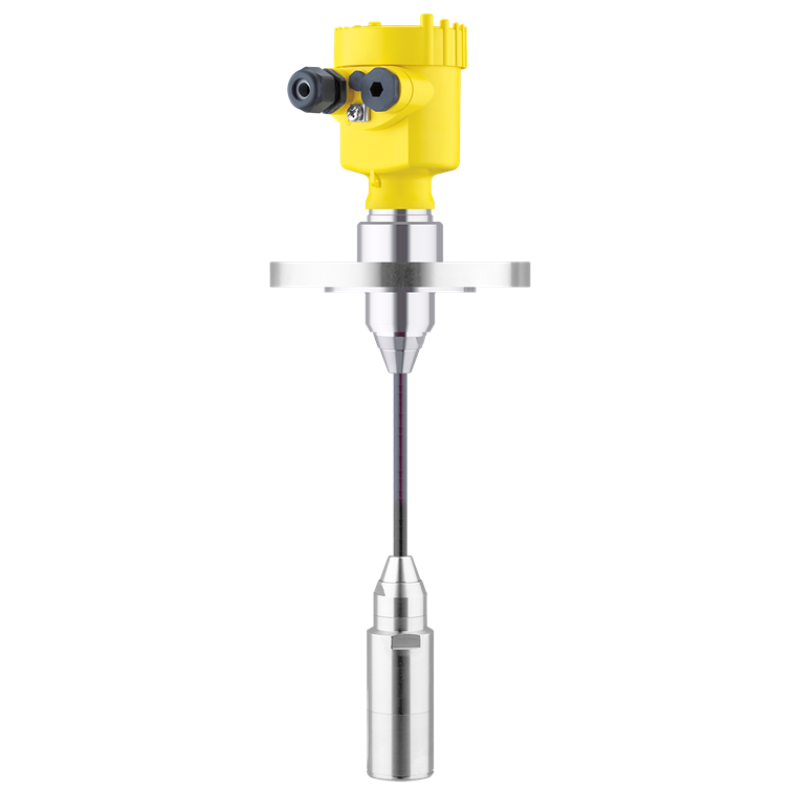

VEGABAR 87

Submersible pressure transmitter with metallic measuring cell

Application area

For level measurement of liquids and corrosive media. Maximum sensor length: Cable 250 m, tube 6 m. Can be combined with any other sensor of VEGABAR Series 80 for electronic differential pressure measurement.

The VEGABAR 87 is a pressure transmitter for pressure and level measurements of liquids and viscous products with higher temperatures in the chemical, food processing and pharmaceutical industry. With VEGABAR 87 it is possible to detect even smallest measuring ranges from 0.1 bar. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.

Your benefit

Maximum reliability even with rapidly changing process temperatures
High plant availability through vacuum-resistant version
Very good cleanability and high chemical resistance through adapted materials

Pressure transmitter for viscous media, even at high process temperatures

The hydrostatic submersible pressure sensor VEGABAR 87 with metallic measuring cell measures the level of liquids and viscous media with high process temperatures (high temperature).
The robust mechanical configuration of the metallic measuring cell protects the sensor in the demanding measuring tasks found in different industries, e.g.

chemically stable level measurement in ultrapure water
water level measurement with two hydrostatic pressure sensors for lock control
Maintenance-free level measurement in waste water shafts

Measuring range - Pressure	0 … 25 bar [Bar – kPa – psi]
Process temperature	-12 … 100 °C [°C – °F]
Accuracy	0.1 %
Materials, wetted parts	316L Duplex (1.4462) FEP
Threaded connection	≥ G1½, ≥ 1½ NPT
Flange connection	≥ DN50, ≥ 2"
Seal material	no media contact
Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar) IP69
Output	Profibus PA Foundation Fieldbus 4 … 20 mA Two-wire: 4 … 20 mA/HART Modbus Secondary electronics for electronic differential pressure
Ambient temperature	-40 … 80 °C
Scope	ATEX / Europe FM / USA EAC (GOST) / Belarus EAC (GOST) / Russia IEC / worldwide NEPSI / China INMETRO / Brazil CCOE / India CSA / USA and Canada IA UKEX
Explosion protection	Intrinsic safety "i" Flameproof enclosure "d" Dust ignition protection "t"
Foodstuffs/Pharma	FDA EG1935/2004
Ship approval	ABS BV CCS DNV LR NK RINA RMROS
Overfill protection	WHG VLAREM II
SIL qualification	SIL2
Adjustment	PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM)
Indication	Display/adjustment module PLICSCOM VEGADIS 81 VEGADIS 82
