VEGABAR 86

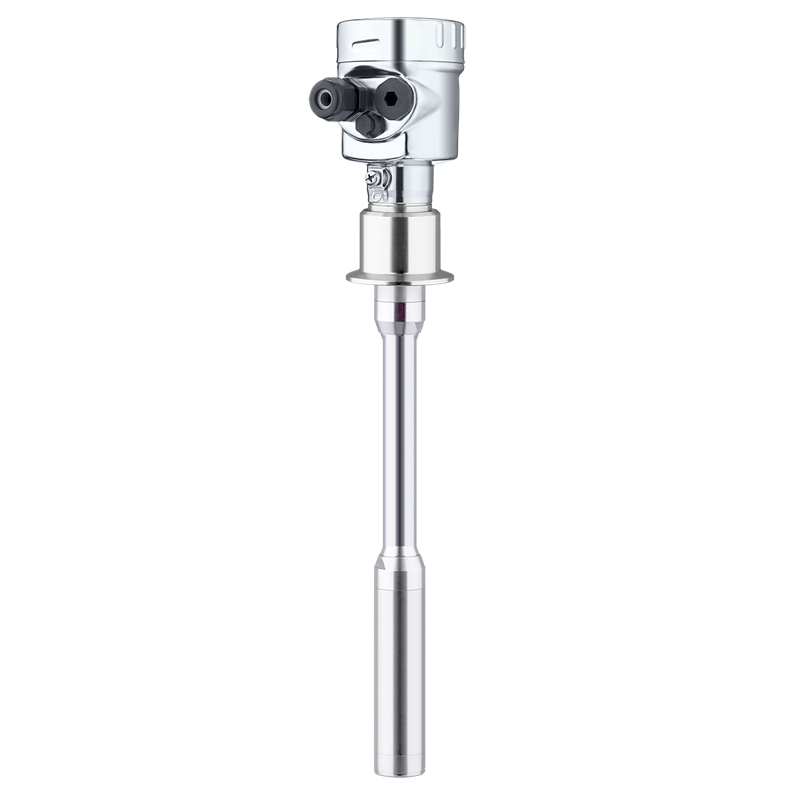

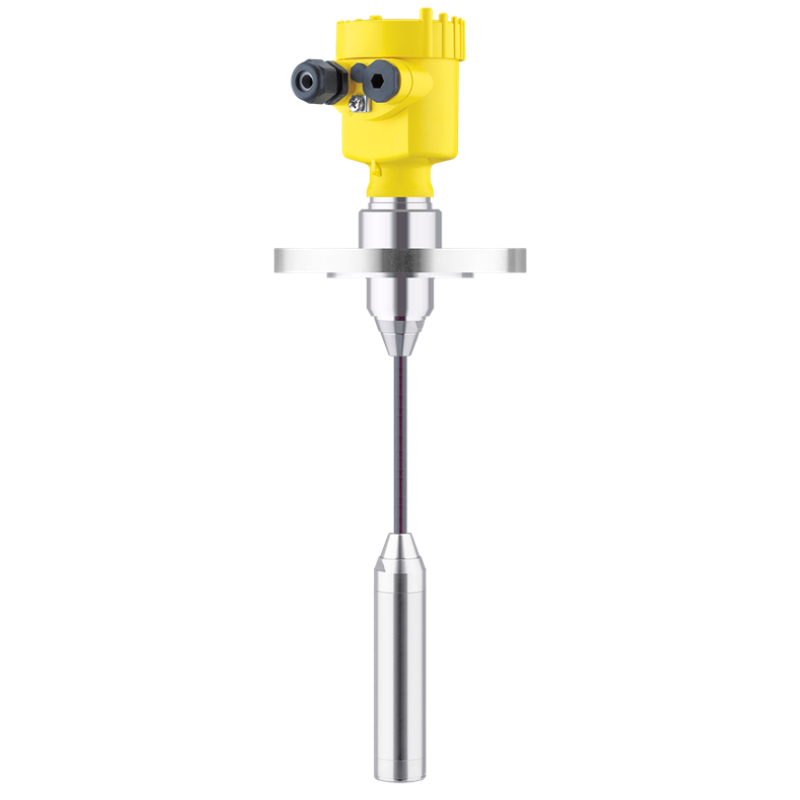

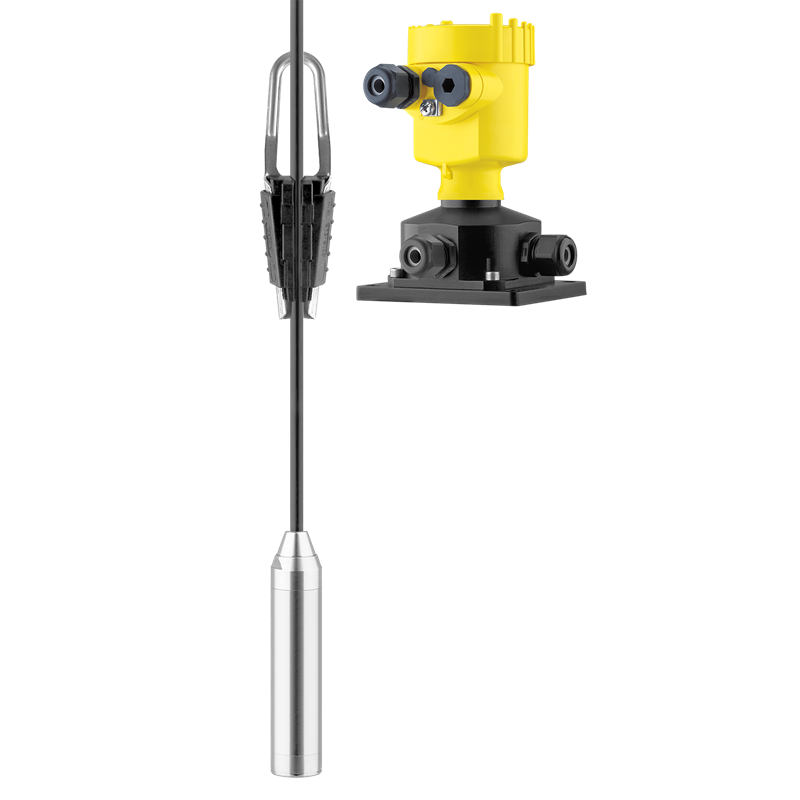

Submersible pressure transmitter with ceramic measuring cell

Application area

For level measurement in wells, basins and open tanks. Maximum sensor length: Cable 250 m, tube 6 m. Can be combined with any other sensor of VEGABAR Series 80 for electronic differential pressure measurement.

The VEGABAR 86 is a submersible pressure transmitter for level measurement in wells, basins and open vessels. Thanks to the flexibility through different cable and tube versions, VEGABAR 86 can be used in various applications. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.

Your benefit

Low maintenance costs thanks to wear-free ceramic measuring cell
High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
Self-cleaning effect through front-flush installation

Submersible pressure transmitter for level measurement of water, acids and alkalis

Specially optimized for measurement of water, alkalis, acids and other chemically aggressive liquids, the submersible pressure transmitter VEGABAR 86 with ceramic measuring cell finds application in a wide range of industries – from water level measurement in the wastewater sector to level measurement in the chemical industry or in food production.

The submersible pressure transmitter with ceramic measuring cell is ideal for:

chemically stable level measurement in ultrapure water
water level measurement with two suspension pressure transmitters for lock control
Maintenace-free level measurement in waste water shafts

Measuring range - Pressure	0 … 25 bar [Bar – kPa – psi]
Process temperature	-20 … 100 °C [°C – °F]
Accuracy	0.1 %
Materials, wetted parts	PVDF 316L FEP PE PUR
Threaded connection	≥ G1½, ≥ 1½ NPT
Flange connection	≥ DN 40, ≥ 2"
Seal material	EPDM FKM FFKM
Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar) IP66/IP68 (25 bar) IP69
Output	Profibus PA Foundation Fieldbus 4 … 20 mA Two-wire: 4 … 20 mA/HART Modbus Secondary electronics for electronic differential pressure
Ambient temperature	-40 … 80 °C
Scope	ATEX / Europe FM / USA EAC (GOST) / Belarus EAC (GOST) / Russia IEC / worldwide NEPSI / China INMETRO / Brazil CCOE / India CSA / USA and Canada IA UKEX
Explosion protection	Intrinsic safety "i" Flameproof enclosure "d" Dust ignition protection "t"
Foodstuffs/Pharma	3A EHEDG FDA EG1935/2004
Ship approval	ABS BV CCS DNV LR RINA
Overfill protection	WHG VLAREM II
SIL qualification	SIL2
Adjustment	PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM)
Indication	Display/adjustment module PLICSCOM VEGADIS 81 VEGADIS 82
