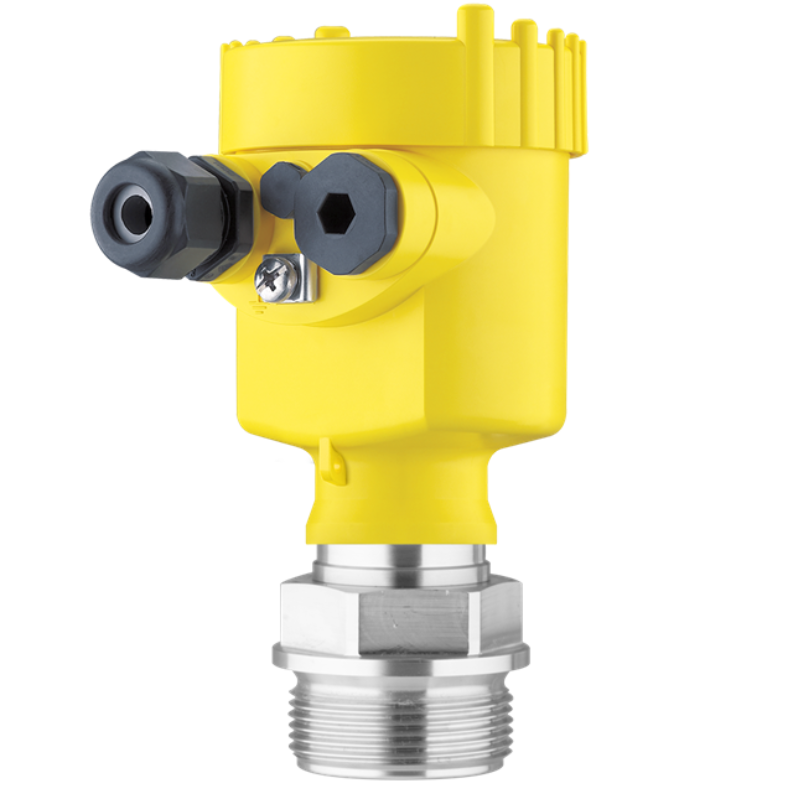

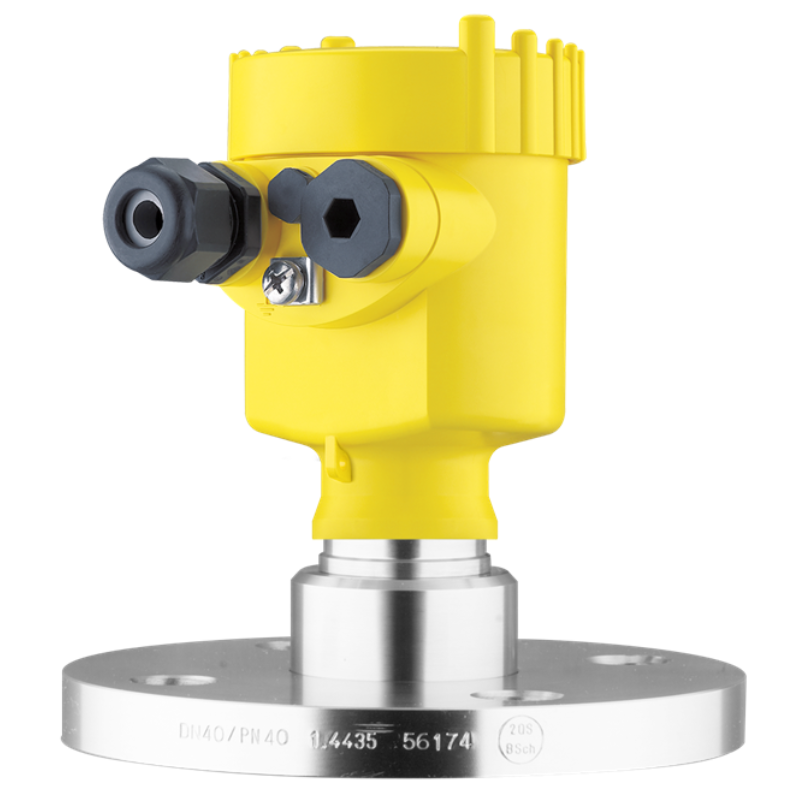

VEGABAR 82 Pressure transmitter with ceramic measuring cell
$800.00
The all-rounder with ceramic measuring cell
Product catalog Process pressure
Product information VEGABAR 81, 82, 83
Specification sheet VEGABAR 82
Operating instructions VEGABAR 82
VEGABAR 81
Pressure transmitter with chemical seal
Application area
Your benefit
- Low maintenance costs thanks to wear-free ceramic measuring cell
- High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
- Measurement down to the last drop through smallest measuring ranges with high accuracy
The robust, all-round pressure sensor with ceramic measuring cell
The pressure sensor VEGABAR 82 is the robust all-rounder with an innovative flush mounted ceramic measuring cell that VEGA manufactures itself, as a full-range supplier of pressure instrumentation. A real highlight: the ceramic pressure sensor is resistant to thermal shock. The versatile standard instrument handles temperatures up to 150° C. The extremely high overload factor of 200 is unique to the market. This pressure sensor covers 80% of all applications in the process industry. With its oil-free ceramic CERTEC® measuring cell it is well equipped for use in all areas of industry:
- Monitoring of feed pressure in sewage pipelines
- Overload-resistant level and gauge pressure measurement in pressurized batch vessels
- Level measurement of paper pulp level in bleaching towers, to protect against dry-run damage to the discharge pumps
- Monitoring of negative pressure in distillation columns (down to absolute vacuum)
| Measuring range - Pressure | -1 … 100 bar [Bar – kPa – psi] |
|---|---|
| Process temperature | -40 … 150 °C [°C – °F] |
| Accuracy | 0.05 % |
| Materials, wetted parts | PVDF |
| Threaded connection | ≥ G¼, ≥ ¼ NPT |
| Flange connection | ≥ DN15, ≥ ½" |
| Hygenic fittings | Clamp ≥ 1" – DIN32676, ISO2852 |
| Seal material | EPDM |
| Housing material | Plastic |
| Protection rating | IP66/IP68 (0,2 bar) |
| Output | Profibus PA |
| Ambient temperature | -40 … 80 °C |
| Scope | ATEX / Europe |
| Explosion protection | Intrinsic safety "i" |
| Foodstuffs/Pharma | FDA |
| Ship approval | ABS |
| Overfill protection | WHG |
| SIL qualification | SIL2 |
| Adjustment | PLICSCOM |
| Indication | Display/adjustment module PLICSCOM |
