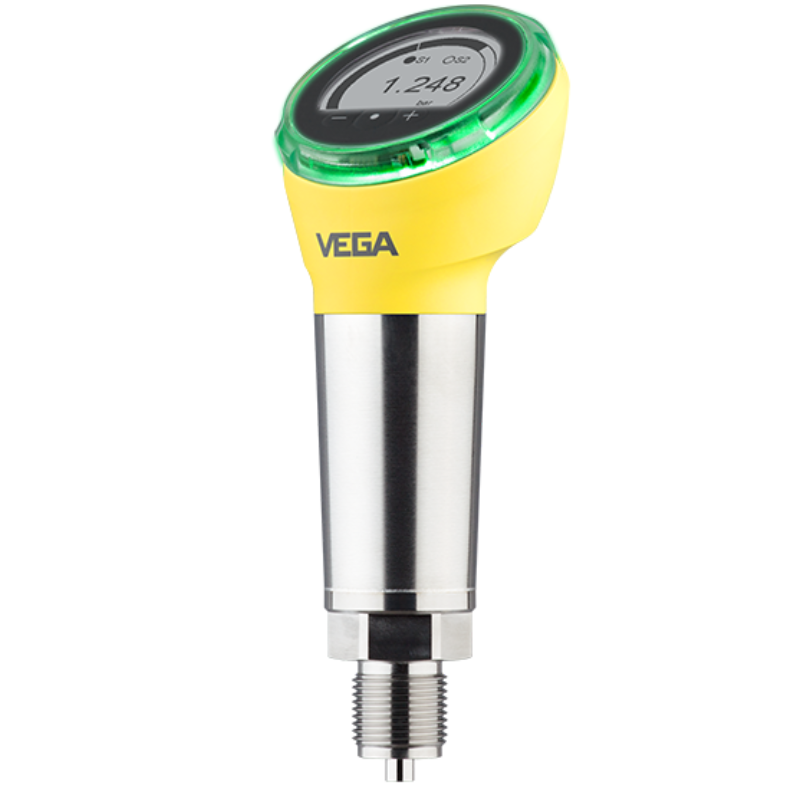

VEGABAR 38 Pressure sensor with switching function

Name: VEGABAR 38 Pressure sensor with switching function
Brand: VEGA
SKU: 1562
Availability: InStock

$340.00

With ceramic measuring cell

Product catalog Process pressure

Product information VEGABAR 18, 19, 28, 29, 38, 39

Specification sheet VEGABAR 38

Operating instructions VEGABAR 38

Category: Pressure Measurement Tags: Pressure sensor, Pressure switch Brand: VEGA

VEGABAR 38

Pressure sensor with switching function

Application area

From thread ½”, hygienic connections, universal connection G1″ for hygiene adapter, 4 … 20 mA, three-wire: PNP/NPN, 4 … 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display, on-site display and 3-button operation

VEGABAR 38 is a universal pressure transmitter with ceramic measuring cell for measuring gases, vapours and liquids up to 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping. The sensor has a display with on-site operation and coloured 360° status display.

Your benefit

High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
Coloured 360° status display, display and on-site operation with VDMA menu structure
Easy integration into control systems through IO-Link communication

Measuring range - Pressure	-1 … 60 bar [Bar – kPa – psi]
Process temperature	-40 … 130 °C [°C – °F]
Accuracy	0.3 %
Materials, wetted parts	PVDF 316L Duplex (1.4462) Ceramic
Threaded connection	≥ G¼, ≥ ¼ NPT
Hygenic fittings	Clamp ≥ 2", DN50 – DIN32676, ISO2852 Clamp ≥ 1" – DIN32676, ISO2852 Clamp ≥ 1½" – DIN32676, ISO2852 Slotted nut ≥ 1½", ≥ DN40 – DIN 11851 Slotted nut ≥ DN25 – DIN 11851 SMS DN38 Hygienic fittings ≥ DN25 – DIN11864-1-A Hygienic fittings ≥ DN40 – DIN11864-1-A Varivent N50-40 SMS DN25 Ingold connection PN10 Varivent F25
Seal material	EPDM FKM FFKM
Housing material	Plastic
Protection rating	IP66/IP67 IP65
Output	4 … 20 mA Three-wire (PNP/NPN, 4 … 20 mA) IO-Link
Ambient temperature	-40 … 70 °C
Scope	ATEX / Europe CSA / Canada FM / USA EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide KOSHA / Korea NEPSI / China UKR Sepro / Ukraine INMETRO / Brazil
Explosion protection	Intrinsic safety "i" Dust ignition protection "t" Increased safety "e"
Foodstuffs/Pharma	FDA Drinking water EG1935/2004
Ship approval	ABS BV CCS DNV LR NK RINA
Adjustment	Smartphone / Tablet / PC via Bluetooth PC, PACTware and DTM, IODD
Indication	360° status display
